Remington RM2570EC 41ADZ26C983 Gas String Trimmer

Model: RM2570EC 41ADZ26C983

Save Part Not Listed?
product name

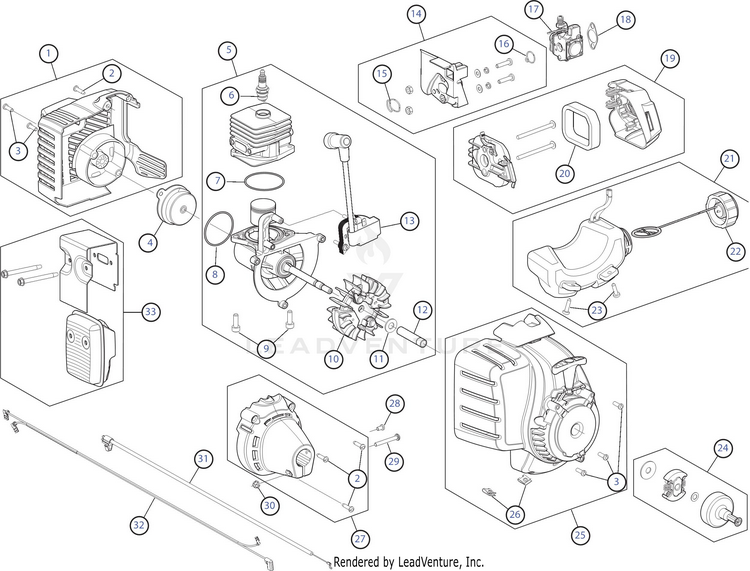

Engine Assembly

...
...
1
Rear Cover Assembly (Incl. 2 & 3) MTD-753-06177
...
2
Cover Screw MTD-791-181345
...
3
SCREW #10-24X11/16 T-25 MTD-791-182195
...
4
Electric Start Cover Assembly MTD-753-06173
...
5
Short Block Assembly (Incl. 5 - 12) MTD-753-06523
...
6
Spark Plug MTD-753-06847
...
7
Crankcase O-Ring MTD-753-06275
...
8
O-Ring MTD-753-06174
...
9
Crankcase Bolt MTD-791-182723
...
10
Flywheel Assembly MTD-753-06175
...
11
Washer MTD-753-06247
...
12
Spacer MTD-753-06218
...
13
Module Assembly MTD-753-06763
...
14
Insulator Assembly (Incl. 14 & 15) MTD-753-06189
...
15
Insulator O-Ring MTD-753-06184
...
16
Carburetor O-Ring MTD-753-06185
...
17
Carburetor MTD-753-06190
...
18
Air Cleaner Gasket MTD-753-06253
...
19
AIRCLEANER COVER ASSEMBLY (Incl. 19) MTD-753-06415
...
20
Air Cleaner Filter MTD-753-06417
...
21
Fuel Tank Assembly (Incl. 21 & 22) MTD-753-06183
...
22
Fuel Tank Cap MTD-791-182612
...
23
Fuel Tank Screw MTD-791-181930
...
24
Clutch Assembly MTD-753-05860
...
25
Starter Housing (Incl. 3 & 25) MTD-753-06943
...
26
U-shaped Nut MTD-791-182366
...
27
CLUTCH COVER (Incl. 2) MTD-753-06181
...
28
Anti-rotation Screw MTD-791-182519
...
29
SCREW MTD-9689A
...
30
Clamp Nut MTD-712-0161
...
31
THROTTLE CABLE MTD-746P04754
...
32
LEAD WIRES MTD-753-06583
...
33
MUFFLER ASSEMBLY MTD-753-08745

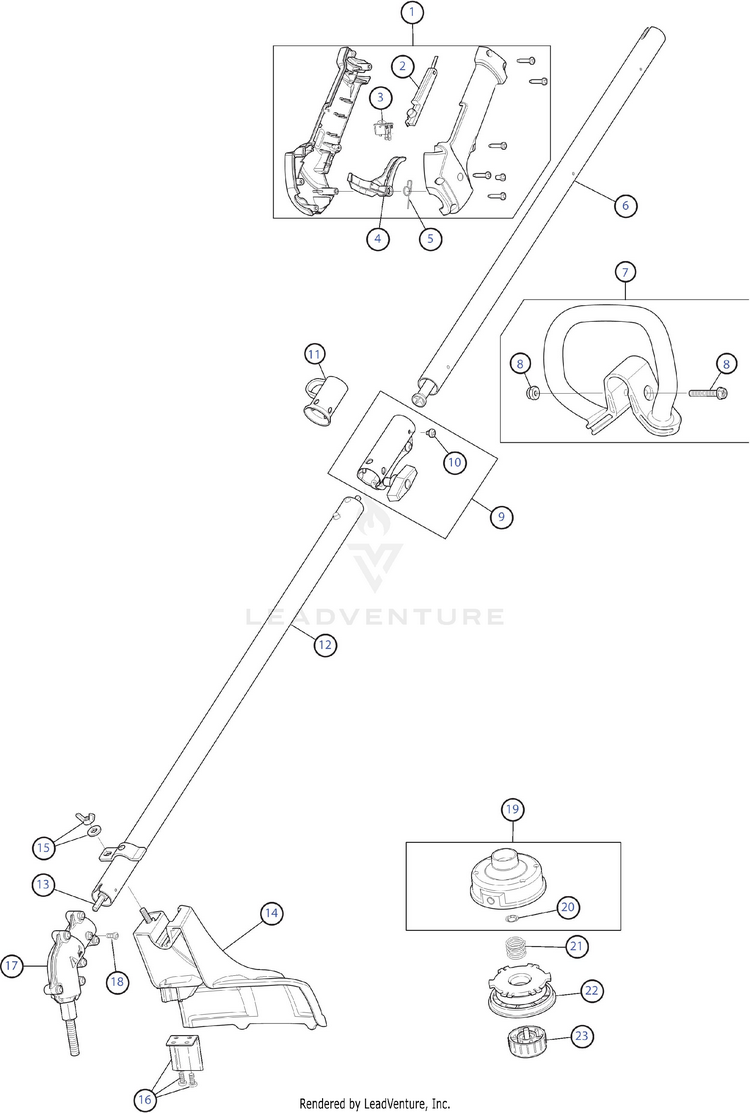

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2 - 5) MTD-753-08344
...
2
Throttle Trigger Lock-Out MTD-731-08433C-10
...
3
Trigger Switch Assembly MTD-791-182405
...
4
Throttle Trigger MTD-731-04970B-10
...
5
TRIGGER SPRING MTD-753-05007
...
6
Upper Drive Shaft Housing Assembly MTD-753-06880
...
7
D-Handle (Incl. 8) MTD-753-08042
...
8
D-Handle Hardware Assembly MTD-753-06040
...
9
Split Boom Coupler (Incl. 10) MTD-753-06944
...
10
Anti-Rotation Screw MTD-791-182057
...
11
Hanger MTD-731-08926
...
12
Lower Drive Shaft Housing Assembly (Incl. 13) MTD-753-08356
...
13
LOWER DRIVE SHAFT MTD-753-05267
...
14
Shield Assembly (Incl. 15 & 16) MTD-753-08360
...
15
Shield Mounting Hardware MTD-753-04282
...
16
Blade Assembly MTD-753-08355
...
17
GEARBOX ASSEMBLY (Incl. 18 - 22) MTD-753-06571
...
18
Anti-Rotation Screw MTD-7039
...
19
OUTER REEL W/RETAINING RING MTD-753-04284
...
20
Retainer MTD-791-610660
...
21
Spring MTD-791-610317B
...
22
Inner Reel MTD-753-1155
...
23
Bump Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly MTD-841-031094S
