Remington RM2570 41CDZ22C983 Gas String Trimmer

Model: RM2570 41CDZ22C983 41CDZ22C983 RM2570

Save Part Not Listed?
product name

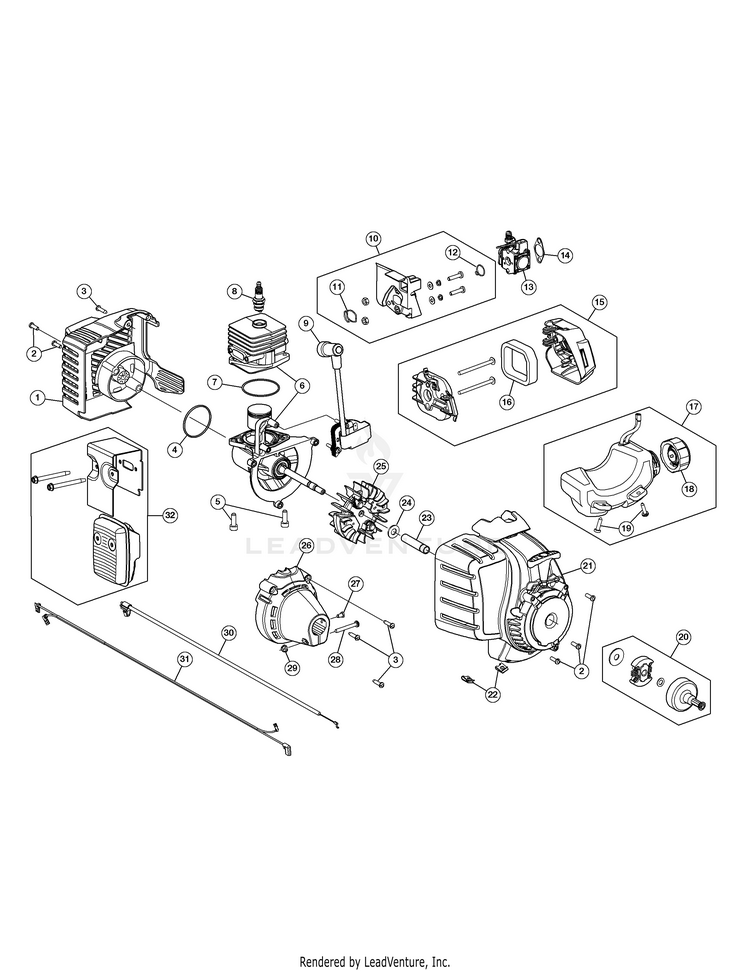

Engine Assembly

...
...
1
Rear Cover Assembly (Incl. 2 & 3) MTD-753-06194
...
2
Cover Screw MTD-791-181345
...
3
SCREW:10-32X.5 MTD-1964
...
4
O-Ring MTD-753-06174
...
5
Crankcase Bolt MTD-791-182723
...
6
Short Block Assembly (Incl. 4, 5, 7 - 9 & 23 - 25) MTD-753-06922
...
7
Crankcase O-Ring MTD-753-06275
...
8
Spark Plug MTD-753-06847
...
9
Module Assembly MTD-753-06763
...
10
Insulator Assembly (Incl. 11 & 12) MTD-753-06189
...
11
Insulator O-Ring MTD-753-06184
...
12
Carburetor O-Ring MTD-753-06185
...
13
Carburetor MTD-753-06190
...
14
Air Cleaner Gasket MTD-753-06253
...
15
AIRCLEANER COVER ASSEMBLY MTD-753-06415
...
16
Aircleaner Filter MTD-753-06417
...
17
Fuel Tank Assembly (includes 17 & 18) MTD-753-06183
...
18
Fuel Tank Screw MTD-791-181930
...
19
Fuel Tank Cap MTD-791-182612
...
20
Clutch Assembly MTD-753-05860
...
21
Starter Housing (Incl. 2 & 22) MTD-753-06943
...
22
U-shaped Nut MTD-791-182366
...
23
Spacer MTD-753-06218
...
24
Washer MTD-753-06247
...
25
Flywheel Assembly MTD-753-06175
...
26
CLUTCH COVER MTD-753-06181
...
27
Anti-rotation Screw MTD-791-182519
...
28
SCREW MTD-9689A
...
29
Clamp Nut MTD-712-0161
...
30
Throttle Cable MTD-753-06188
...
31
WIRE LEADS MTD-753-06187
...
32
MUFFLER ASSEMBLY MTD-753-08745

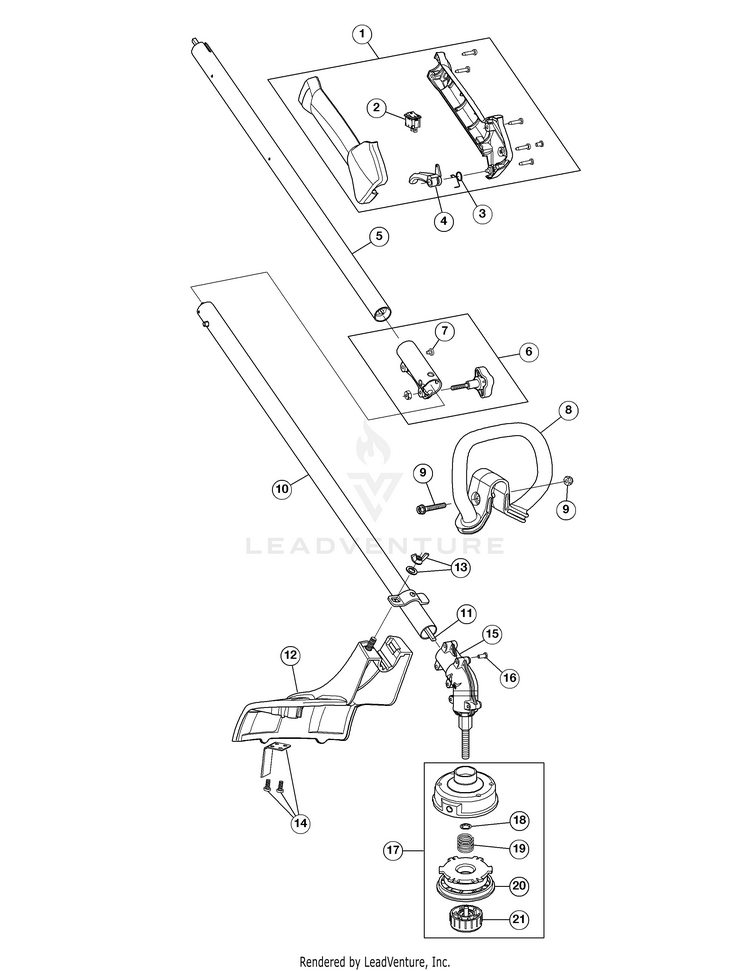

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2 - 4) MTD-753-04234
...
2
Switch Assembly MTD-791-182405
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Throttle Trigger MTD-753-04119
...
5
Upper Drive Shaft Housing Assembly MTD-753-04236
...
6
Split Boom Coupler (Incl. 7) MTD-753-06944
...
7
Screw MTD-791-182057
...
8
D-Handle (Incl. 9) MTD-753-08042
...
9
D-Handle Bolt MTD-753-06040
...
10
Lower Drive Shaft Housing Assembly (Incl. 11) MTD-753-06139
...
11
LOWER DRIVE SHAFT MTD-753-05267
...
12
Shield Assembly (Incl. 13 & 14) MTD-753-08360
...
13
Shield Mounting Hardware MTD-753-04282
...
14
Blade Assembly MTD-753-08355
...
15
GEARBOX ASSEMBLY MTD-753-06571
...
16
Anti-Rotation Screw MTD-7039
...
17
OUTER REEL W/RETAINING RING (*NOT Complete Assembly*) MTD-753-04284
...
18
Retainer MTD-791-610660
...
19
Spring MTD-791-610317B
...
20
Inner Reel MTD-753-1155
...
21
Bump Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly (Optional Accessory) MTD-953-1156
...
xx
ROUND LINE-.095 (Optional Accessory) MTD-49U2341K953
...
xx
Oil, 2-Cycle 16 OZ. (Optional Accessory) MTD-OL-216-OM
...
xx
STA-BIL 32 OZ (Optional Accessory) MTD-22287
