Remington RM2570 41BDZ22C983 Gas String Trimmer

Model: RM2570 41BDZ22C983 41BDZ22C983 RM2570

Back To Assemblies

Save Part Not Listed?
product name

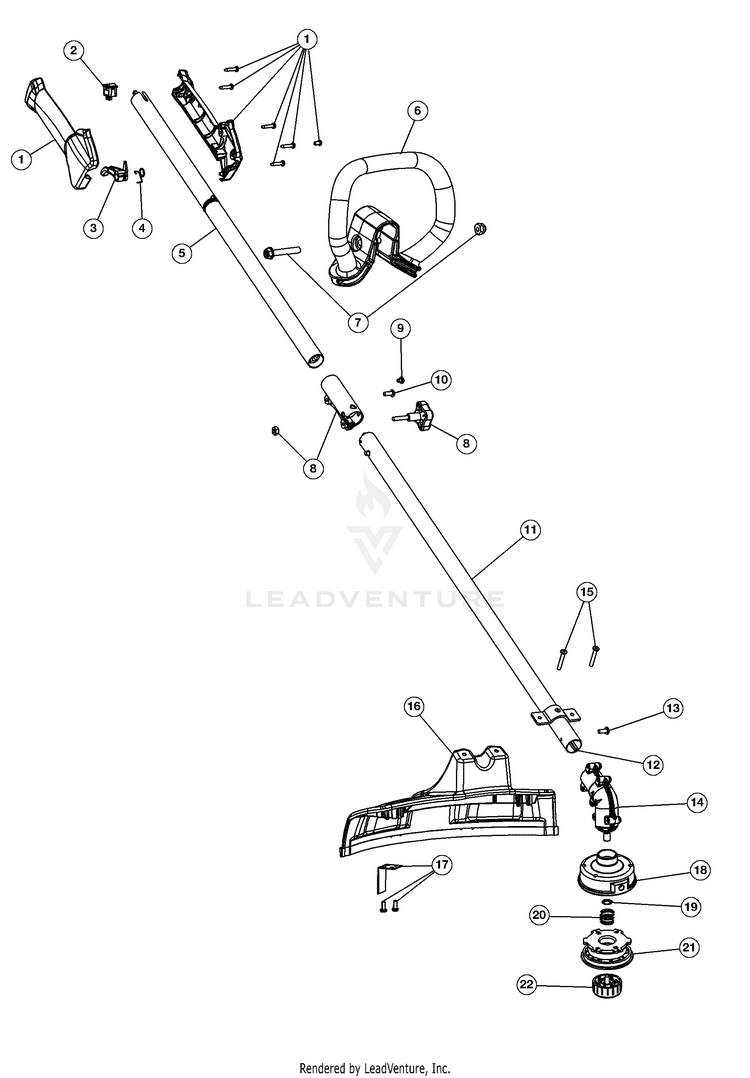

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch MTD-791-182405
...
5
Upper Drive Shaft Housing Assembly MTD-753-04344
...
6
D-Handle (Incl. 7) MTD-753-08042
...
7
D-Handle Bolt MTD-753-06040
...
8
Split Boom Coupler (Incl. 9-10) MTD-753-06944
...
9
Screw MTD-791-182057
...
10
Bolt MTD-791-181617
...
11
BOOM ASSEMBLY LOWER MTD-753-08356
...
12
LOWER DRIVE SHAFT MTD-753-05267
...
13
Anti-Rotation Screw MTD-7039
...
14
GEARBOX ASSEMBLY MTD-753-06571
...
15
Shield Mounting Screws MTD-753-06125
...
16
Shield Assembly (Incl. 15 & 17) MTD-753-06123
...
17
Blade Assembly MTD-753-06126
...
18
OUTER REEL W/RETAINING RING MTD-753-04284
...
19
Retainer MTD-791-610660
...
20
Spring MTD-791-610317B
...
21
Inner Reel MTD-753-1155
...
22
Bump Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly (Not shown) (Optional) MTD-953-1156
