Remington RM2570 41ADZ22C983 Gas String Trimmer

Model: RM2570 41ADZ22C983 41ADZ22C983 RM2570

Save Part Not Listed?
product name

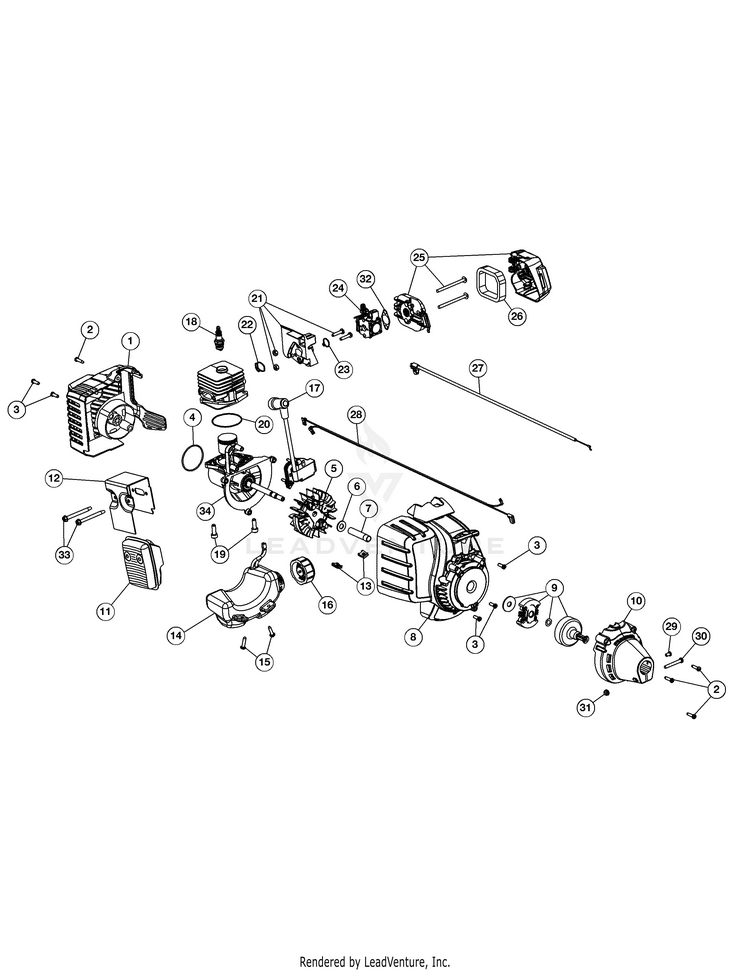

Engine Assembly

...
...
1
Rear Cover Assembly (Incl. 2 & 3) MTD-753-06194
...
2
Cover Screw MTD-791-181345
...
3
SCREW:10-32X.5 MTD-1964
...
4
O-Ring MTD-753-06174
...
5
Flywheel Assembly MTD-753-06175
...
6
Washer MTD-753-06247
...
7
Spacer MTD-753-06218
...
8
Starter Housing (Incl. 3 & 13) MTD-753-06943
...
9
Clutch Assembly MTD-753-05860
...
10
CLUTCH COVER MTD-753-06181
...
11
MUFFLER ASSEMBLY MTD-753-08745
...
12
Muffler Gasket MTD-753-06419
...
13
U-shaped Nut MTD-791-182366
...
14
Fuel Tank Assembly (includes 17 & 18) MTD-753-06183
...
15
Tank Screw MTD-791-181930
...
16
Fuel Cap MTD-791-182612
...
17
Module Assembly MTD-753-06763
...
18
Spark Plug MTD-753-06847
...
19
Crankcase Bolt MTD-791-182723
...
20
Crankcase O-Ring MTD-753-06275
...
21
Insulator Assembly (Incl. 22 & 23) MTD-753-06189
...
22
Insulator O-Ring MTD-753-06184
...
23
Carburetor O-Ring MTD-753-06185
...
24
Carburetor MTD-753-06190
...
25
AIRCLEANER COVER ASSEMBLY MTD-753-06415
...
26
Aircleaner Filter MTD-753-06417
...
27
Throttle Cable MTD-753-06188
...
28
WIRE LEADS MTD-753-06187
...
29
Anti-rotation Screw MTD-791-182519
...
30
SCREW MTD-9689A
...
31
Clamp Nut MTD-712-0161
...
32
Air Cleaner Gasket MTD-753-06253
...
33
Muffler Screw MTD-753-06294
...
34
Short Block Assembly (Incl. 4-7 & 17-20) MTD-753-06922

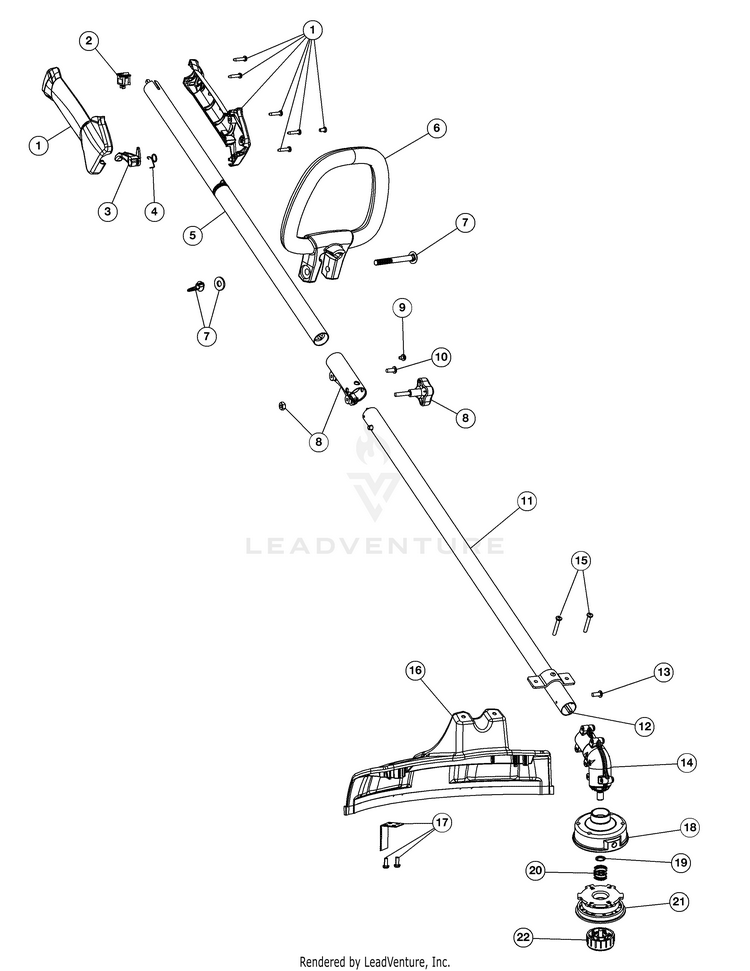

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch MTD-791-182405
...
5
Upper Drive Shaft Housing Assembly MTD-753-04344
...
6
D-Handle (Incl. 7) MTD-753-05461
...
7
D-Handle Hardware Assembly MTD-791-181587
...
8
Split Boom Coupler (Incl. 9-10) MTD-753-06944
...
9
Screw MTD-791-182057
...
10
Bolt MTD-791-181617
...
11
BOOM ASSEMBLY LOWER MTD-753-08356
...
12
LOWER DRIVE SHAFT MTD-753-05267
...
13
Anti-Rotation Screw MTD-7039
...
14
GEARBOX ASSEMBLY MTD-753-06571
...
15
Shield Mounting Screws MTD-753-06125
...
16
Shield Assembly (Incl. 15 & 17) MTD-753-06123
...
17
Blade Assembly MTD-753-06126
...
18
OUTER REEL W/RETAINING RING MTD-753-04284
...
19
Retainer MTD-791-610660
...
20
Spring MTD-791-610317B
...
21
Inner Reel MTD-753-1155
...
22
Bump Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly Not shown MTD-953-1156
