Remington RM2560 41ED160G983 Gas String Trimmer

Model: RM2560 41ED160G983

Back To Assemblies

Save Part Not Listed?
product name

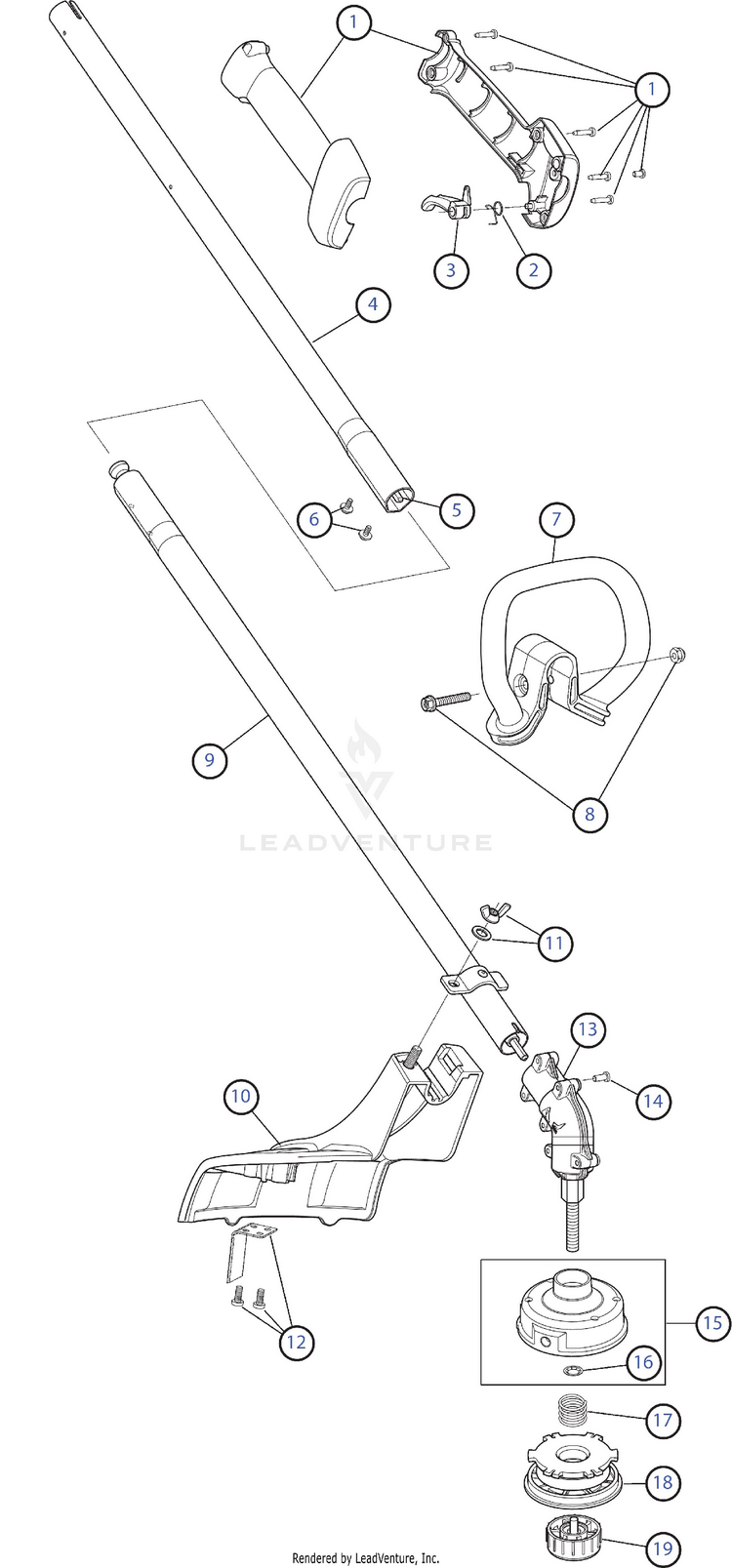

General Assembly

...
...
1
THROTTLE GRIP ASSEMBLY MTD-753-08543
...
2
Throttle Trigger Spring MTD-791-182690
...
3
THROTTLE TRIGGER MTD-753-06791
...
4
Upper Shaft Housing Assembly (Incl. 5) MTD-753-08685
...
5
Upper Flexible Drive Shaft MTD-753-06216
...
6
Screw MTD-710-06562
...
7
D-Handle (Incl. 8) MTD-753-08042
...
8
D-Handle Bolt MTD-753-06040
...
9
Lower Shaft Housing Assembly MTD-753-08686
...
10
Shield Assembly (Incl. 11 & 12) MTD-753-08360
...
11
Shield Mounting Hardware MTD-753-04282
...
12
Blade Assembly MTD-753-08355
...
13
Gearbox Assembly (Incl. 14 - 19) MTD-753-06165
...
14
Anti-Rotation Screw MTD-7039
...
15
OUTER REEL W/RETAINING RING MTD-753-04284
...
16
Retainer MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly MTD-953-1156
