Remington RM2520 41BDZ20C983 Gas String Trimmer

Model: RM2520 41BDZ20C983 41BDZ20C983 RM2520

Back To Assemblies

Save Part Not Listed?
product name

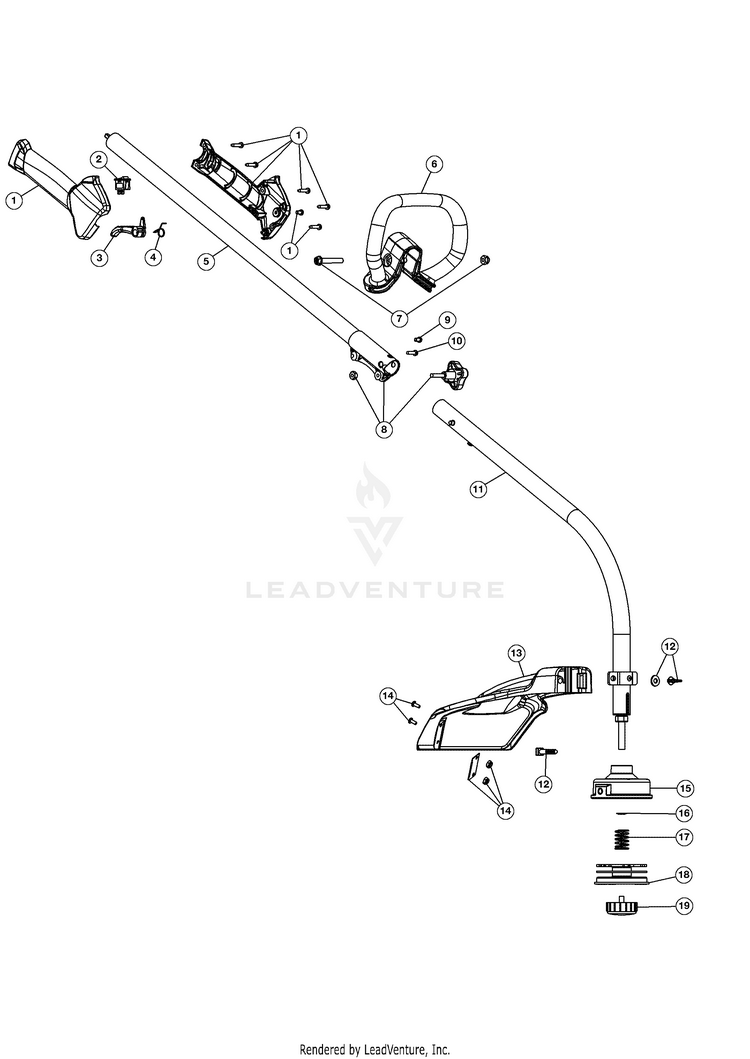

General Assembly

...
...
1
Throttle Housing Assembly (Incl. 2-4) MTD-753-04234
...
2
Switch MTD-791-182405
...
3
Throttle Trigger MTD-753-04119
...
4
Throttle Trigger Spring MTD-791-182690
...
5
Upper Shaft Housing Assembly MTD-753-04344
...
6
D-Handle (Incl. 7) MTD-753-08042
...
7
D-Handle Bolt MTD-753-06040
...
8
Split Boom Coupler (Incl. 9-10) MTD-753-06944
...
9
Anti-Rotation Screw MTD-791-182057
...
10
Bolt MTD-791-181617
...
11
Lower Shaft Housing Assembly MTD-753-04508
...
12
Shield Mounting Hardware MTD-753-04282
...
13
Shield Assembly (Incl. 14) MTD-753-04283
...
14
Blade Assembly MTD-791-180553
...
15
OUTER REEL W/RETAINING RING MTD-753-04284
...
16
Retainer MTD-791-610660
...
17
Spring MTD-791-610317B
...
18
Inner Reel MTD-753-1155
...
19
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly (Not shown) (Optional) MTD-953-1156
...
xx
Fixed Line Insert (Not shown) (Optional) MTD-753-05778
...
xx
Reel & Line Assembly (Not shown) (Optional) MTD-953-1156
