Remington RM2510 41CD110G983 Gas String Trimmer

Model: RM2510 41CD110G983 41CD110G983 RM2510

Save Part Not Listed?
product name

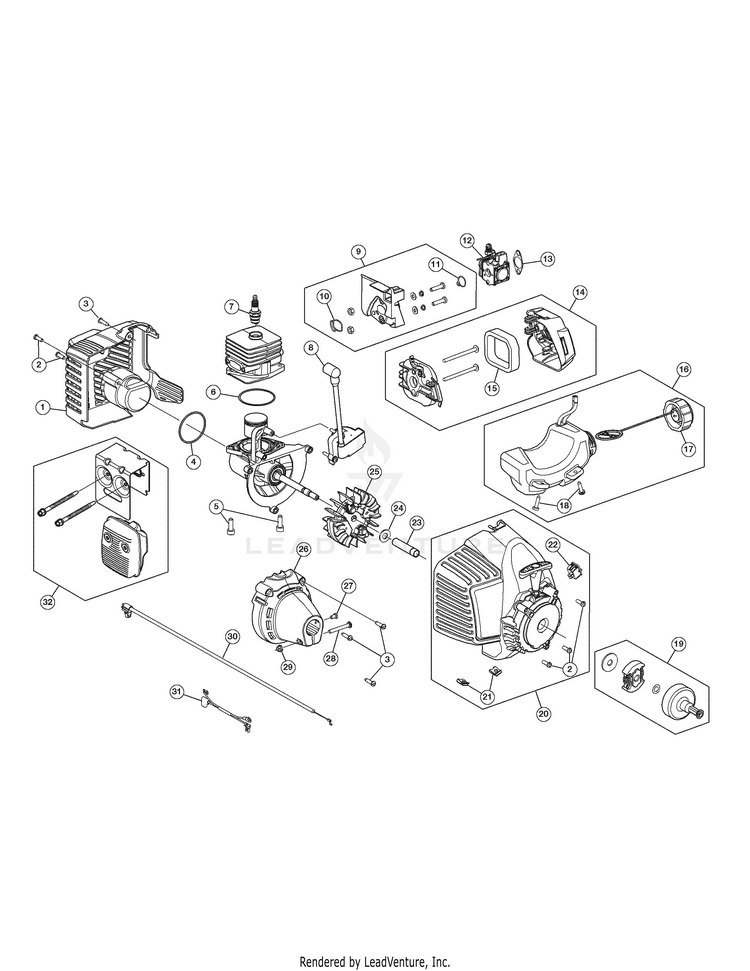

Engine Assembly

...
...
1
ENGINE COVER RR MTD-753-06919
...
2
SCREW:10-32X.5 MTD-1964
...
3
Cover Screw MTD-791-181345
...
4
O-Ring MTD-753-06174
...
5
Crankcase Bolt MTD-791-182723
...
6
Crankcase O-Ring MTD-753-06275
...
7
Spark Plug MTD-753-06847
...
8
Module Assembly MTD-753-06420
...
9
Insulator Assembly (Incl. 10 & 11) MTD-753-06189
...
10
Insulator O-Ring MTD-753-06184
...
11
Carburetor O-Ring MTD-753-06185
...
12
Carburetor MTD-753-06190
...
13
Air Cleaner Gasket MTD-753-06253
...
14
AIRCLEANER COVER ASSEMBLY MTD-753-06415
...
15
Aircleaner Filter MTD-753-06417
...
16
Fuel Tank Assembly (Incl. 17 & 18) MTD-753-06183
...
17
Fuel Tank Cap MTD-791-182612
...
18
Fuel Tank Screw MTD-791-181930
...
19
Starter Clutch Assembly MTD-753-05860
...
20
Starter Housing (Incl. 2, 21 & 22) MTD-753-08547
...
21
U-shaped Nut MTD-791-182366
...
22
Switch Assembly MTD-791-182405
...
23
Spacer MTD-753-06218
...
24
Washer MTD-753-06247
...
25
Flywheel Assembly MTD-753-06175
...
26
CLUTCH COVER MTD-753-06181
...
27
Anti-rotation Screw MTD-791-182519
...
28
SCREW MTD-9689A
...
29
Clamp Nut MTD-712-0161
...
30
THROTTLE CABLE MTD-746P04754
...
31
Lead Wires MTD-794-00127A
...
32
MUFFLER ASSEMBLY MTD-753-08745
...
xx
Short Block Assembly (Incl. Crankcase, Cylinder, Piston, 4 - 8 & 23 - 25) MTD-753-08347

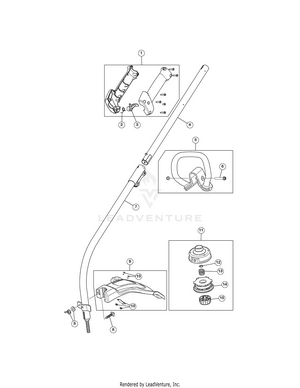

General Assembly

...
...
1
THROTTLE GRIP ASSEMBLY MTD-753-08543
...
2
Throttle Trigger Spring MTD-791-182690
...
3
THROTTLE TRIGGER MTD-753-06791
...
4
UPPER BOOM ASSEMBLY COM MTD-753-06217
...
5
D-Handle (Incl. 6) MTD-753-08042
...
6
D-Handle Bolt MTD-753-06040
...
7
LOWER BOOM ASSEMBLY MTD-753-08544
...
8
Shield Mounting Hardware MTD-753-04282
...
9
Shield Assembly (Incl. 10) MTD-753-06200
...
10
Blade Assembly MTD-753-06803
...
11
OUTER REEL W/RETAINING RING (*NOT Complete Assembly*) MTD-753-04284
...
12
Retainer MTD-791-610660
...
13
Spring MTD-791-610317B
...
14
Inner Reel MTD-753-1155
...
15
Bump Head Knob Assembly MTD-791-153066B
...
xx
Reel & Line Assembly MTD-953-1156
