Remington RM2410 31AS6BEE783 (2017) Snow Thrower

Model: RM2410 31AS6BEE783 (2017)

Back To Assemblies

Save Part Not Listed?
product name

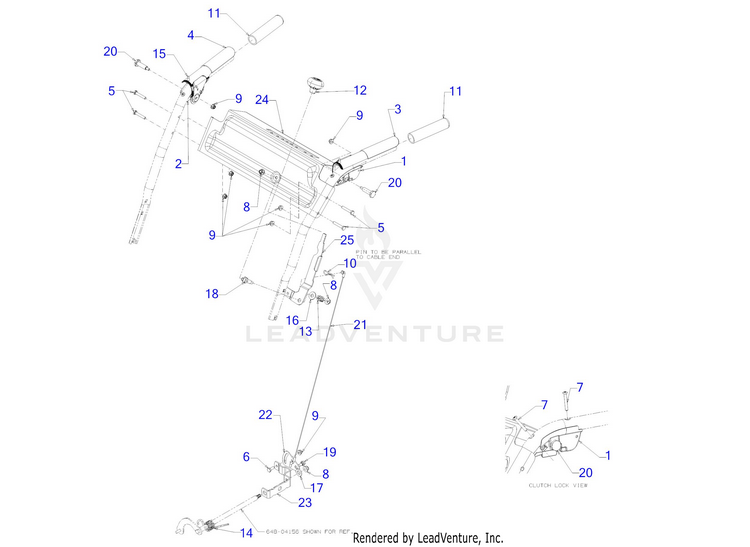

Panel

...
...
1
CLUTCH LOCK HANDLE ASSEMBLY (LH) MTD-631-04133A
...
2
CLUTCH LOCK HANDLE ASSEMBLY (RH) MTD-631-04134B
...
3
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
4
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
5
SCREW 1/4-20 x 1.50 GR.5 MTD-710-0606
...
6
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
7
SCREW #10-24 x 1.375 MTD-710-1233
...
8
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
9
FLANGE LOCK NUT MTD-712-04064
...
10
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
11
GRIP-1.0 ID x 5.0 LG MTD-720-05091
...
12
SHIFT KNOB MTD-720-05092
...
13
COMPRESSION SPRING MTD-732-0193
...
14
TORSION SPRING MTD-732-04311A
...
15
Bumper, Rubber MTD-735-0199A
...
16
FLAT WASHER .385X.870X.090 MTD-736-0262
...
17
FLAT WASHER MTD-936-3015
...
18
SHOULDER BOLT MTD-738-04118
...
19
SHOULDER SCREW MTD-738-04184A
...
20
SHOULDER SCREW .437 x 1.345 1/4-20 MTD-738-04348
...
21
SPEED SELECTOR CABLE (STEEL) MTD-946-04397A
...
22
Pivot Bracket, Speed Selector MTD-790-00217A
...
23
Shift Bracket, Speed Selector MTD-790-00218A
...
24
HANDLE PANEL-STEEL W/O CUTOUT *CHOOSE COLOR WHEN ORDERING* MTD-790-00219A
...
25
SPEED SHIFT LEVER *CHOOSE COLOR WHEN ORDERING* MTD-790-00313A
