Remington 24BG57M1783 (2016) Log Splitter

Model: 24BG57M1783 (2016)

Back To Assemblies

Save Part Not Listed?
product name

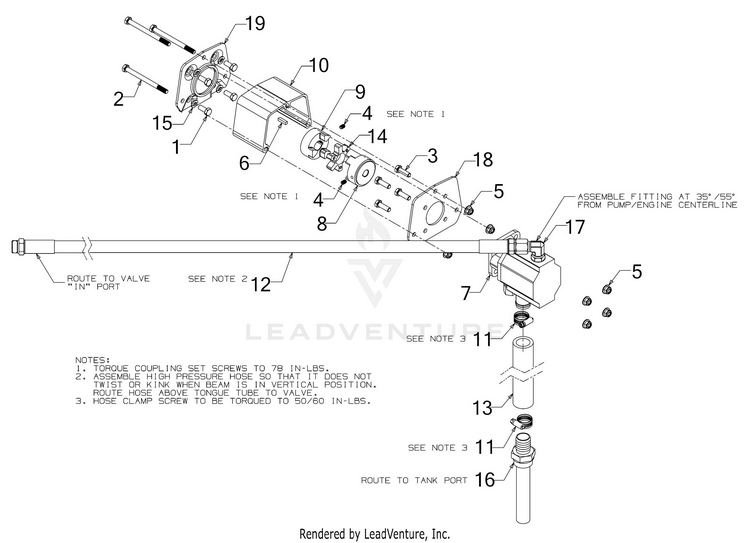

Pump

...
...
1
HEX SCREW 5/16-24 x .75 MTD-710-0157
...
2
HEX SCREW 5/16-18 x 4.00 MTD-710-0190
...
3
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
4
SCREW 1/4-20 x .38 MTD-710-1842A
...
5
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
6
Square Key 3/16" x .75 MTD-714-0122
...
7
LOGSPLITTER GEAR PUMP 11GPM MTD-918-04127
...
8
LOGSPLITTER COUPLING .500 MTD-718-04392
...
9
LOGSPLITTER COUPLING .750 MTD-718-04474
...
10
COUPLING SHIELD MTD-719-0278
...
11
HOSE CLAMP-5/8 MTD-726-0132
...
12
48" HYDRAULIC HOSE MTD-727-04288
...
13
INPUT HOSE MTD-727-04356
...
14
SPIDER COUPLING BUSHING MTD-735-04103
...
15
LOCK WASHER 5/16 MTD-936-0119
...
16
INLET FILTER MTD-737-04308
...
17
HYDRAULIC FITTING MTD-737-04320
...
18
SUPPORT BRACKET MTD-781-0097-0637
...
19
BRACKET MTD-781-0098A-0637
