Remington 24BG57M1783 (2016) Log Splitter

Model: 24BG57M1783 (2016)

Back To Assemblies

Save Part Not Listed?
product name

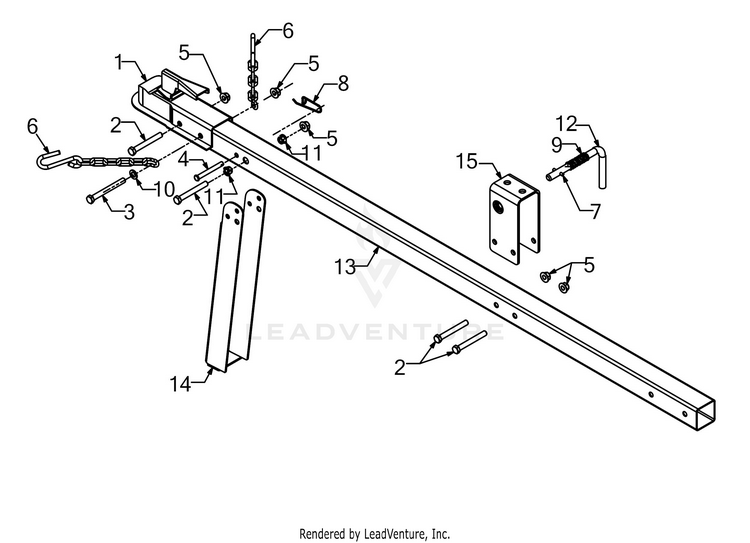

Tongue

...
...
1
HITCH COUPLING ASSEMBLY MTD-681-04030
...
2
SCREW 3/8-16 x 3 GR8 MTD-710-0521
...
3
SCREW 3/8-16 x 3.50 GR5 MTD-710-3085
...
4
CLEVIS PIN 5/16 x 2.5 MTD-911-0813
...
5
NUT MTD-712-04065
...
6
LOGSPLITTER TOW CHAIN MTD-713-0433A
...
7
SPRING PIN 3/16 x 1.00 MTD-715-0120
...
8
SPRING PIN MTD-732-0194
...
9
COMPRESSION SPRING MTD-932-3127
...
10
Flat Washer .375 ID x .738 OD MTD-736-0185
...
11
BUSHING .380 ID MTD-941-0475
...
12
LATCH ROD MTD-747-1261
...
13
TONGUE TUBE MTD-781-04424-0637
...
14
JACK STAND MTD-781-04430-0637
...
15
LATCH MTD-781-1045-0637
