Ranch King by MTD Ranch King Mdl 669 Lawn Tractor

Model: Ranch King Mdl 669

Back To Assemblies

Save Part Not Listed?
product name

Parts10

...
...
3

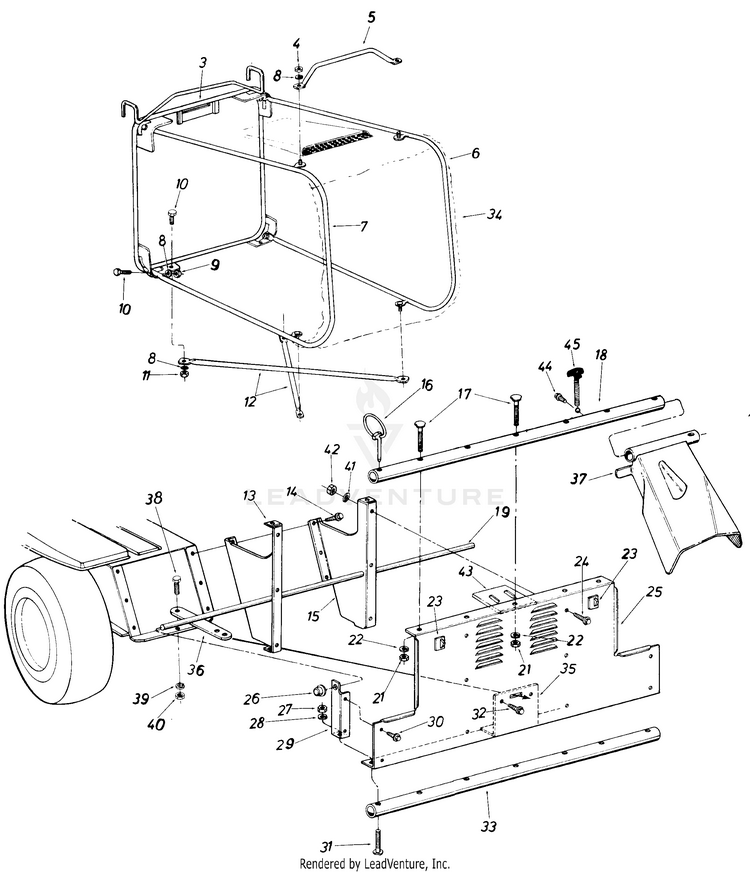

FRAME ASSEMBLY MTD-15370
...
4
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
5
HANDLE-GRASSCATCHER MTD-749-0654
...
6
FRAME-SIDE MTD-15992
...
7
FRAME-SIDE MTD-15993
...
8
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
9
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
10
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
11
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
12
BRACE-CROSS-BOTTOM MTD-749-0652
...
13
BRACKET-SUPPORT-LH MTD-15363
...
14
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg. MTD-710-0726
...
15
BRACKET-SUPPORT-RH MTD-15364
...
16
Click Pin MTD-714-0143A
...
17
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
18
TUBING MTD-749-0578
...
19
TUBING MTD-749-0576
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Lock Wash. 5/16" I.D. MTD-936-0119
...
23
ROCKER SWITCH MTD-725-0713
...
24
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
25
Grass Catcher Adapter MTD-15369
...
26
Cap Speed Nut 1/2" Rod MTD-726-0221
...
27
HEX NUT 5/16-18 MTD-712-3010
...
28
Lock Wash. 5/16" I.D. MTD-936-0119
...
29
Chute Extension Support Brkt.-L.H. MTD-15361
...
xx
Chute Extension Support Brkt.-R.H. (Not Shown) MTD-15362
...
30
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
31
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
32
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
33
TUBING MTD-749-0584
...
34
GRASSBAG MTD-764-0211
...
35
Hitch Bracket MTD-15459
...
36
BRACKET-LINKAGE MTD-05400
...
37
CHUTE DEFLECTOR ASS'Y. R.H. MTD-15366
...
xx
CHUTE DEF LECTOR ASS'Y. L.H. (Not Shown) MTD-15365
...
38
Hex Bolt 1/2-13 x 1.00" Lg. MTD-710-3131
...
39
L-Wash. 1/2" I.D. MTD-736-0921
...
40
Hex Jam Nut 1/2-13 Gr 5 MTD-712-3048
...
41
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
42
HEX NUT 1/4-20 MTD-912-0287
...
43
GRASSCATCHERSUPPORTPLATE MTD-15995
...
44
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
45
HOOD LOCK ASSEMBLY MTD-723-0296
