Ranch King by MTD 12A-269B205 (1999) Self-Propelled Mower

Model: 12A-269B205 (1999)

Save Part Not Listed?
product name

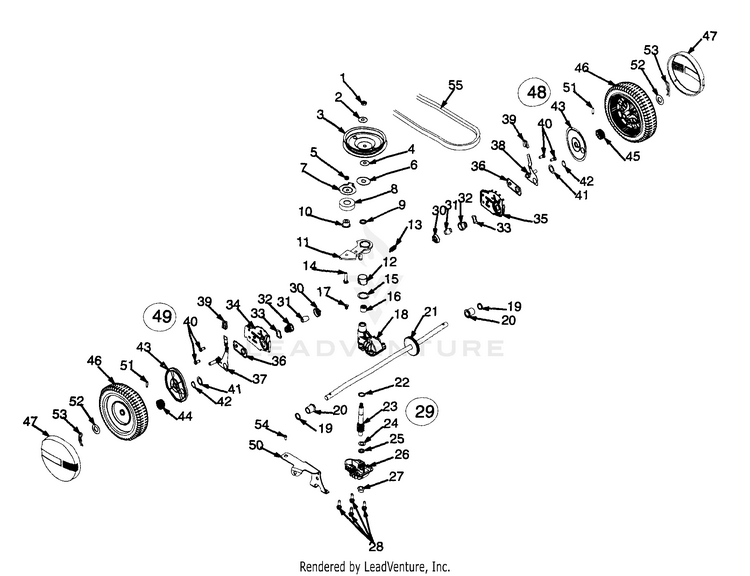

Drive

...
...
1
Hex Jam Nut 5/16-24 MTD-712-3025
...
2
Bell Wash .325 x .930 x .045 MTD-736-0425
...
3
INPUT PULLEY ASSEMBLY (3.82X .313X .68) MTD-656-0047
...
4
Bell Wash .325 x .930 x .045 MTD-736-0425
...
5
Hex Nut 1/4 - 28 Lock MTD-712-0896
...
6
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
7
Belt Keeper MTD-782-7598
...
8
BALL BEARING MTD-941-0600
...
9
SEAL OIL MTD-721-0457
...
10
Flange Spacer MTD-750-1050
...
11
FRONT IDLER ASSEMBLY MTD-682-0029
...
12
Bearing Sleeve MTD-741-0682A
...
13
Extension Spring MTD-932-0849A
...
14
Hex Cap Screw 1/4-28 x 1.00 Gr. 5 MTD-710-0299
...
15
FLAT WASHER MTD-936-0570
...
16
NEEDLE BEARING MTD-741-0699
...
17
Plug 1/4 x .437 MTD-721-0325
...
18
HOUSING (Incl. #16) MTD-618-0300
...
19
Oil Seal MTD-921-0329
...
20
Bearing MTD-941-0673
...
21
OUTPUT SHAFT ASSEMBLY MTD-611-0105A
...
22
Flat Washer .504 ID x .70 OD MTD-936-0520
...
23
SHAFT PINION 10T MTD-717-1492
...
24
Thrust Washer .375 x .70 x .030 MTD-736-0314
...
25
THRUST WASHER MTD-936-0569
...
26
HOUSING ASSEMBLY-LOWER (Includes #27) MTD-618-0299
...
27
FLANGE BEARING MTD-741-0672
...
28
SCREW 1/4-20 x .750 MTD-710-1276
...
29
TRANSMISSION ASSEMBLY (Incl. 1 thru 30) MTD-918-0298A
...
30
BEARING RETAINER MTD-732-0708
...
31
Bearing Sleeve .50 I.D. MTD-741-0604A
...
32
SUPPORT BEARING MTD-748-0355
...
33
Wave Washer 1.5 x 1.0 x .029 MTD-736-0447
...
34
Height Adjuster Plate - RH MTD-782-0512B-0637
...
35
HEIGHT ADJUSTMENT PLATE (LH) MTD-782-0511A-0637
...
36
HEIGHT ADJ. PIVOT PLATE ASS'Y. MTD-682-0509
...
37
Front Lever R.H MTD-732-0706
...
38
Front Lever L.H. MTD-732-0707
...
39
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
40
Hex Cap Screw 3/8-16 x .75 MTD-710-0216
...
41
Washer DD 1.5" O.D. MTD-736-0474
...
42
Snap Ring 1.0 Dia MTD-716-0102
...
43
Wheel Dust Cap MTD-782-7551A
...
44
SPUR GEAR 14T (RH) MTD-717-1534
...
45
Gear 14T LH Fwd MTD-717-1533
...
46
Front Wheel MTD-734-04223A
...
47
HUB CAP MTD-920-0249
...
48
Height Adjustment Ass’y - RH MTD-987-02194A
...
49
Height Adjustment Ass’y - LH MTD-987-02193A
...
50
IDLER CABLE BRACKET MTD-682-0030
...
51
Dowel Pin MTD-915-0221
...
52
Flat Washer 1/2 x 1.00 x .063 MTD-736-3013
...
53
Cotter Pin .08 x 1.42 MTD-714-0101
...
54
SHOULDER SCREW .375X.25AB1/4-20 MTD-738-1002
...
55
BELT .380 x 36.68" MTD-954-0466

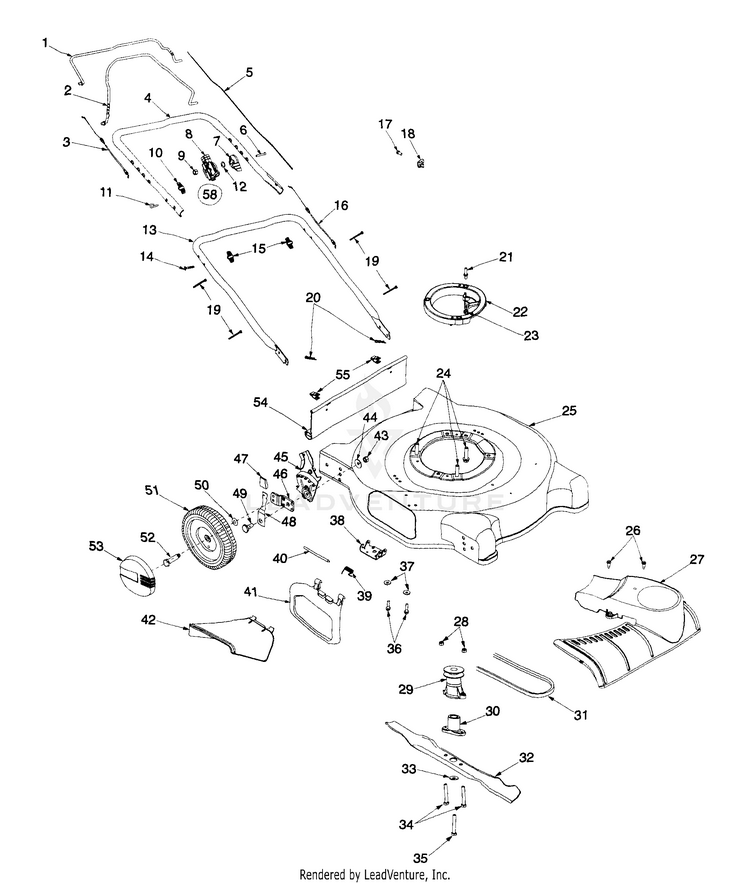

General Assembly

...
...
1
Std. Control Handle MTD-747-0824B-0637
...
2
DRIVE CONTROL LEVER MTD-747-0854-0637
...
3
DRIVE CABLE MTD-946-0959
...
4
UPPER HANDLE MTD-749-0538C
...
5
Control Cable 39" (B&S) MTD-946-0550
...
xx
Control Cable - 51" (Tec.) MTD-946-0737
...
6
Screw Oval C-Sunk 1/4-20 x 1.81 (Used w/746-0875) MTD-710-0605
...
xx
SCREW 1/4-20 x 1.310 (Used w/746-0883) MTD-710-1270
...
7
Throttle Lever (Optional) MTD-946-0876
...
8
Throttle Body (Optional) MTD-946-0875
...
xx
Control Housing MTD-746-0883
...
9
Hex Lock Nut 1/4-20 MTD-712-0324
...
10
Knob MTD-720-0279
...
11
Eye Bolt 1/4-20 MTD-710-1205
...
12
Curved Spring Wash. .66" I.D. (Optional) MTD-936-0501
...
13
Lower Handle MTD-749-0928A-0637
...
14
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
15
Hand Knob MTD-920-0276
...
16
Throttle Wire 55" Lg. (B&S). (Optional) MTD-946-0671A
...
xx
Throttle Cable (Tec.). (Optional) MTD-946-1115
...
17
Hex Screw: T: #10-32 x .625 (B&S). (Optional) MTD-710-1237
...
xx
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 (Tec.). (Optional) MTD-710-0671
...
18
Cable Clamp (B&S) (B&S). (Optional) MTD-BS-690798
...
xx
CLIP-CONDUIT (Tec.). (Optional) MTD-TC-27793
...
19
Cable Tie MTD-725-0157
...
20
Cotter Pin MTD-714-0104
...
21
Pin-Belt Keeper MTD-711-1293
...
22
ENGINE SPACER ASSEMBLY MTD-631-0075B
...
23
Hex Nut 1/4-20 Thread MTD-712-0271
...
24
Tapp Screw w/Hex Lock Wash MTD-710-1008
...
25
DECK 22" SD MTD-682-0087
...
26
Shoulder Screw # 12 -24 MTD-710-1650
...
27
COVER FRON MTD-731-1926
...
xx
FRONT COVER DECK MTD-731-1927
...
28
Hex Lock Nut 1/4-20 Thd. MTD-712-0324
...
29
Drive Pulley MTD-756-1146A
...
30
Blade Adapter (Incl. Ref. 28,33,34,35) MTD-753-05151
...
31
BELT .380 x 36.68" MTD-954-0466
...
32
Standard Blade 22-inch MTD-942-0642A
...
xx
Blade MTD-742-0742A-0637
...
33
Bell Washer .396 I.D. x 1.140 O.D. x .095 MTD-736-0452
...
34
Hex Screw 1/4-20 x 1.50 MTD-710-0606
...
35
Hex Screw 3/8-24 x 2.50 MTD-710-1257
...
36
Tapp Screw 1/4-20 x .500 MTD-710-0599
...
37
SPRING WASHER BELL MTD-736-0270
...
38
MOUNTING BRACKET MTD-782-7006
...
39
Torsion Spring MTD-932-0731
...
40
Hinge Pin MTD-747-0710A
...
41
MULCH PLUG MTD-731-1386D
...
42
CHUTE DEFLECTOR MTD-931-1034B
...
43
Hex Nut 3/8-16 MTD-712-0798
...
44
BELL WASHER MTD-936-0356
...
45
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02106A
...
xx
BRACKET ASSEMBLY MTD-987-02107A
...
46
Pivot Bar MTD-15262B
...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
48
Front Spring Lever MTD-94832
...
49
Shldr Screw .500 Dia x .434 MTD-738-0507B
...
50
Bell Washer .380 x .880 x .062 MTD-736-0105
...
51
Wheel 8 x 1.75 Disk Bar Gray MTD-634-0020
...
52
Shoulder Screw .498 x 1.445 MTD-738-0102
...
53
HUB CAP MTD-920-0249
...
54
FLAP ASSEMBLY MTD-731-1029
...
55
HINGE CLIP MTD-17098P
...
58
Throttle Box Comp. (Incl. Ref 6,7,8,9,12). (Optional) MTD-811-0185
