Ranch King by MTD 11B-414A205 (2001) Push Walk-Behind Mower

Model: 11B-414A205 (2001)

Save Part Not Listed?
product name

Engine Shrouds

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
USE 910-1256 MTD-710-1256
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
731-1694A
SHRD:ENG:BLACK QUA MTD-731-1694A
...
731-1695
ENGINE SHROUD SILVER QUAN STY MTD-731-1695
...
731-1934A
ENGINE SHROUD MTD-731-1934A
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612A
ENGINE SHROUD MTD-731-1612A
...
7510042823
SHOULDER SCREW MTD-7510042823
...
7510143208
SHROUD ENG MTD-7510143208
...
751B281857
ENGINE SHROUD MTD-751B281857
...
751B281777
ENGINE SHROUD MTD-751B281476
...
710-1237
SCREW-TAP MTD-710-1237
...
751A143188
SHROUD ENGINE MTD-751A143188
...
751B281451
SHROUD MTD-751B281451
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
7511681311
ENGINE SHROUD MTD-7511681311
...
7511681911
SHROUD-ENGINE RED MTD-7511681911
...
7511682011
SHROUD-ENG MTD-7511682011

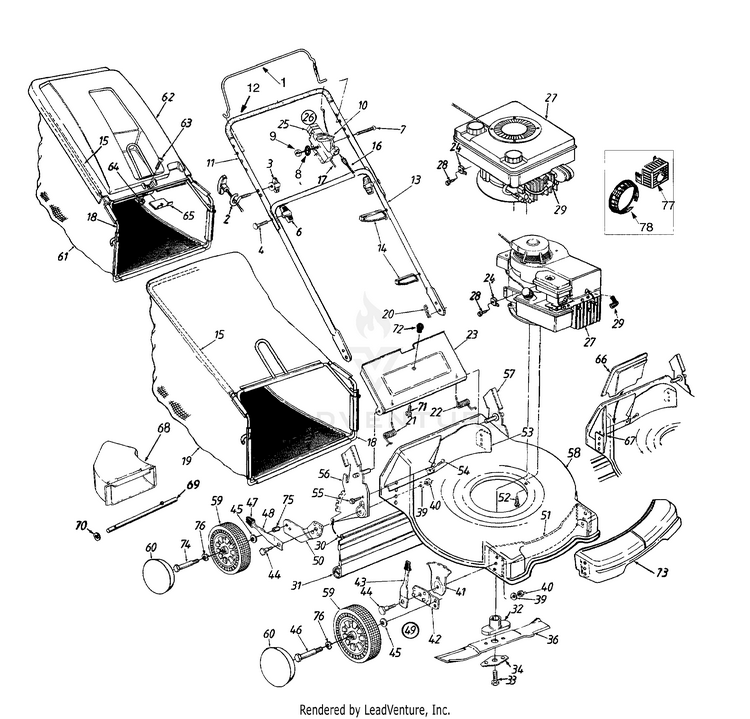

General Assembly

...
...
1
Control Handle (Std.) MTD-747-1161A
...
2
Rope Guide MTD-710-1205
...
3
Handle Knob 1/4-20 Thd. MTD-720-0279
...
4
Curved Hd. Bolt 5/16-18 x 2" Lg MTD-710-1174
...
6
Hand Knob MTD-720-0314
...
7
Oval C-Sunk Mach. Scr. If equipped MTD-710-0605
...
8
Curved Spring Wash. .66" I.D. If equipped MTD-936-0501
...
9
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
10
Throttle Lever If equipped MTD-946-0876
...
11
Upper Handle MTD-749-1092A
...
xx
UPPER HANDLE (Models with Honda engine only) MTD-749-0705
...
12
Foam Grip (Optional) MTD-720-0295
...
13
Lower Handle MTD-749-0928A-0637
...
14
Cable Tie MTD-725-0157
...
15
Rear Catcher Frame MTD-764-0310A-0637
...
16
Control Cable - 40.00" MTD-946-1130
...
xx
Control Cable MTD-946-0557
...
xx
Control Cable (brake) MTD-946-1137
...
17
Throttle Cable If equipped MTD-946-1115
...
18
FRONT CATCHER FRAME (POWDER BLACK) MTD-764-0311-0637
...
19
GRASS CATCHER BAG MTD-964-0309
...
xx
GRASS CATCHER BAG MTD-964-0309
...
20
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
21
Door Spring - R.H. MTD-732-0678
...
22
SPRING-DOOR (LH) MTD-932-0677
...
23
REAR DISCHARGE DOOR MTD-782-7000
...
24
Cable Clamp (B&S) If equipped MTD-BS-690798
...
xx
CLIP-CONDUIT If equipped MTD-TC-27793
...
25
THROTTLE WITH CHOKE HOUSING If equipped MTD-646-0876
...
26
THROTTLE CONTROL BOX COMPLETE (Models with Honda engine only); If equipped MTD-811-00748
...
27
Engine MTD-NA
...
28
Hex Wash. Hd. Scr. #10-32 x .62" Lg. (B&S) If equipped MTD-710-1237
...
29
INSULATOR-SPARK PLUG If equipped MTD-735-0639
...
30
TRAILSHIELD WIRE MTD-732P0700
...
31
Rear Trailing Shield MTD-731-04998
...
32
Blade Adapter Kit (Incl. Ref. 13-15) (Incl. Ref. 33, 34) MTD-753-06315
...
33
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
34
BLADE BELL SUPPORT MTD-736-0524B-1
...
36
21-inch Mulching Blade MTD-942-0741A
...
xx
21" BLADE (HI LIFT BOW-TIE) MTD-742-0641-0637
...
39
BELL WASHER MTD-936-0356
...
40
Hex Nut 3/8-16 Thd. MTD-712-0798
...
41
Height Adjustment Plate MTD-787-01290A
...
42
Pivot Bar MTD-152628
...
43
Front Spring Lever MTD-94832
...
44
Shld. Bolt.5" Dia. x .357" MTD-738-0507B
...
45
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
46
Axle Bolt MTD-738-0102
...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
48
SPRING LEVER MTD-732-0417A
...
49
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) Not Illustrated MTD-753-06761
...
50
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON Not Illustrated MTD-14766
...
51
FRONT BAFFLE MTD-782P5002B
...
52
Hex L-Wash. Hd. Scr. 3/8-16 x 1" MTD-710-0654A
...
53
LH Rear Baffle MTD-782-5003A
...
54
Torx Mach. AB-Tap Scr. 1/4 x 62" MTD-710-1017
...
55
Wash.Scr. 1/4 -14 x .625 MTD-710-0896
...
56
KIT-HANDLE BRACKET MTD-753-05994
...
57
KIT-HANDLE BRACKET MTD-753-05994
...
58
DECK ASSEMBLY-21IN COLOR MTD-782-0310A
...
59
Wheel Assy. Comp. (See "Wheel Chart" illustration and parts list) MTD-NA
...
60
Hub Cap If equipped MTD-731-0981C
...
xx
HUB CAP If equipped MTD-920-0249
...
61
GRASSBAG MTD-764-0433
...
62
HARDTOP COVER MTD-731-1322A
...
xx
HARDTOP COVER MTD-731-1876
...
63
Pan Hd. Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
64
Hex Nylon L-Nut 1/4-20 Thd. MTD-712-0324
...
65
MOUNTING BRACKET MTD-782-9011-0637
...
66
Mulching Baffle Plug If equipped MTD-782-5007C
...
67
Mulching Baffle - R.R. If equipped MTD-782-5004B
...
68
REAR CHUTE DEFLECTOR If equipped MTD-731-1405A
...
69
ROD If equipped MTD-711-0996
...
70
Push Speed Nut If equipped MTD-726-0201
...
71
Truss Scr. #10-24 x .38" Lg. MTD-710-0192
...
72
KNOB MTD-720-0275
...
73
FRONT END COVER If equipped MTD-731-1506A
...
74
Rear Axle Bolt If equipped MTD-738-0213
...
xx
Axle Bolt MTD-738-0102
...
75
Spacer.380" I.D. x .625" O.D. x .227 If equipped MTD-950-0535
...
76
Wave Washer.510 ID x.750 OD If equipped MTD-936-0504
...
77
MUFFLER GUARD (B&S Classic only) MTD-751B225250
...
xx
MUFFLER GUARD (B&S Quantum only) MTD-751B224437
...
78
FINGER GUARD If equipped MTD-751B281705
...
xx
FLYWHEEL GUARD Not Illustrated; (B&S Classic, Sprint and Quatro engines only) MTD-751B224819

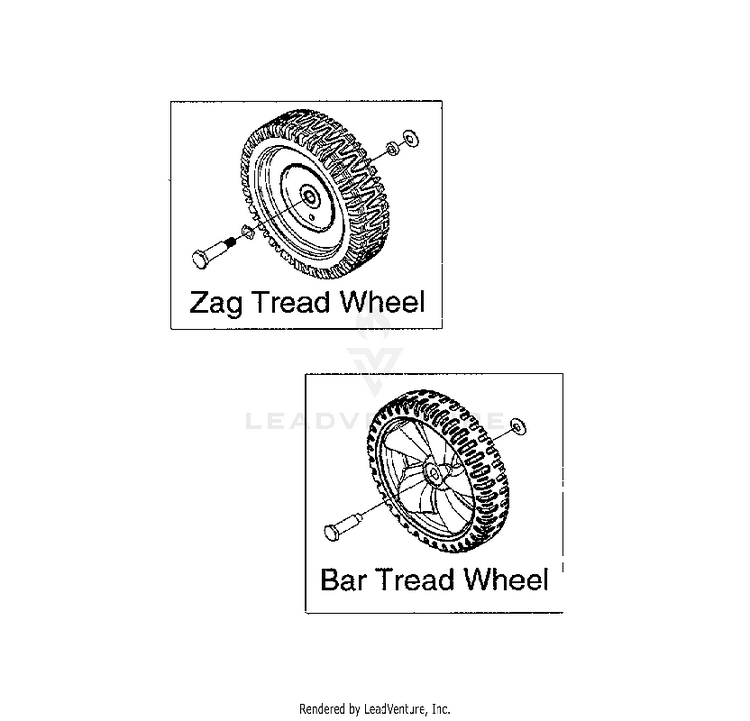

Wheel Chart

...
...
xx
Wheel, 8 x 1.7 See Illustration MTD-734-1855
...
xx
Wheels w/o bearings, 8 x 1.8 Sp., Bar Tread, Grey See Illustration MTD-734-1987
...
xx
7 x 1.8 MTD-734-1988
...
xx
Wheels w/o bearings, Disc Hub, Bar Tread, Grey See Illustration MTD-634-0020
...
xx
Wheels - Front See Illustration MTD-753-08093
