Ranch King by MTD 11A-548N205 (2001) Push Walk-Behind Mower

Model: 11A-548N205 (2001)

Save Part Not Listed?
product name

Engine Shrouds

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
731-1395A
ENGINE SHROUD RED MTD-731-1395A
...
731-1396A
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397A
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
USE 910-1256 MTD-710-1256
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
731-1694A
SHRD:ENG:BLACK QUA MTD-731-1694A
...
731-1695
ENGINE SHROUD SILVER QUAN STY MTD-731-1695
...
731-1934A
ENGINE SHROUD MTD-731-1934A
...
731-1586B
SHRD-ENG-VECTOR-S2 MTD-731-1586B
...
731-1612A
ENGINE SHROUD MTD-731-1612A
...
7510042823
SHOULDER SCREW MTD-7510042823
...
7510143208
SHROUD ENG MTD-7510143208
...
751B281857
ENGINE SHROUD MTD-751B281857
...
751B281777
ENGINE SHROUD MTD-751B281476
...
710-1237
SCREW-TAP MTD-710-1237
...
751A143188
SHROUD ENGINE MTD-751A143188
...
751B281451
SHROUD MTD-751B281451
...
731-1585B
SHRD-ENG-VECTOR-BL MTD-731-1585B
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
7511681311
ENGINE SHROUD MTD-7511681311
...
7511681911
SHROUD-ENGINE RED MTD-7511681911
...
7511682011
SHROUD-ENG MTD-7511682011

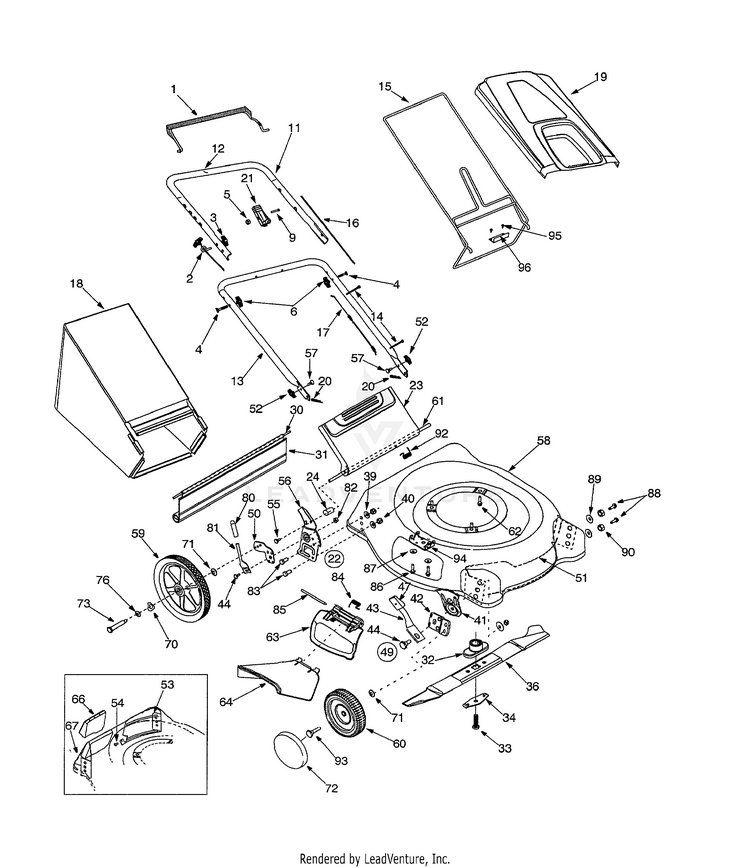

General Assembly

...
...
1
Std. Control Handle MTD-747-0824B-0637
...
1
Std. Control Handle MTD-747-0824B-0637
...
2
Rope Guide MTD-710-1205
...
3
Handle Knob MTD-720-0279
...
4
Curved Hd. Bolt 5/16-18 x 2" MTD-710-1174
...
5
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
6
Hand Knob MTD-720-0314
...
9
SCREW 1/4-20 x 1.310 MTD-710-1270
...
11
UPPER HANDLE MTD-749-0438D-0637
...
12
Foam Grip If equipped MTD-720-0295
...
13
Lower Handle MTD-749-0907B
...
14
Cable Tie MTD-725-0157
...
15
Grasscatcher Frame MTD-747-0995A-0637
...
16
Control Cable 39" MTD-946-0550
...
16
Control Cable - 51" MTD-946-0737
...
17
Throttle Wire-58" Lg. If equipped MTD-946-0674A
...
17
Throttle Cable If equipped MTD-946-1115
...
18
Grassbag MTD-964-0084
...
18
Grassbag MTD-964-0084
...
18
Grassbag MTD-964-0084
...
19
HARDTOP COVER W/LOGO MTD-731-0066
...
19
HARDTOP COVER MTD-731-0068
...
20
Internal Cotter Pin MTD-714-0104
...
21
Throttle Housing w/o Lever MTD-746-0883
...
22
RH Bracket Ass'y MTD-753-05922
...
22
RH Bracket Ass'y MTD-753-05922
...
23
GRASSBAG DOOR MTD-782-7599B-0637
...
24
Spacer .375 OD x .50 ID x 1.02" MTD-750-0434
...
30
TRAILSHIELD WIRE MTD-732P0700
...
31
Rear Trailing Shield MTD-731-04998
...
32
Blade Adapter Kit (Incl. Ref. 13-15) MTD-753-06315
...
33
Hex Bolt 3/8-24 x 1.5" MTD-710-1044
...
34
BLADE BELL SUPPORT MTD-736-0524B-1
...
36
21-inch Mulching Blade MTD-942-0741A
...
39
BELL WASHER MTD-936-0356
...
40
Hex Lock Nut 3/8-16 MTD-712-0130
...
41
Height Adjustment Plate MTD-787-01290A
...
42
Pivot Bar MTD-15262B
...
43
Front Spring Lever MTD-94832
...
44
Shoulder Bolt .5" Dia. x .357" MTD-738-0507B
...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
49
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
49
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
50
Pivot Bar - RH MTD-17488A
...
50
Pivot Bar - LH MTD-17489A
...
51
FRONT BAFFLE MTD-782P5002B
...
52
Wing Nut MTD-712-0397A
...
53
LH Rear Baffle MTD-782-5003A
...
54
Torx Mach. AB-Tap MTD-710-1017
...
55
Hex Washer Screw 1/4-14 MTD-710-0896
...
56
RH Bracket Ass'y MTD-753-05922
...
56
RH Bracket Ass'y MTD-753-05922
...
57
Carriage Bolt, 1/4-20 MTD-710-0703
...
58
21" R.D. W/ S.D. FEATURE MTD-782-0047
...
59
COMPLETE WHEEL 14 x 2 YELLOW MTD-734-1860A
...
59
WHEEL ASSEMBLY 14X1.8 MTD-734-04030
...
60
Wheel Ass'y. Comp. MTD-734-1978
...
60
Wheel, 8 x 1.7 MTD-734-1855
...
60
WHEEL ASSEMBLY SET OF 2 8x1.7 (GRAY) MTD-934-1841
...
60
Front Wheel Assembly 8 X 1.8 MTD-734-1987
...
61
Chute Door Pivot Rod MTD-747-0996
...
62
Sems Screw TT 3/8-16 X 1 MTD-710-0654A
...
63
MULCH PLUG ASSEMBLY MTD-682-7000
...
64
Side Discharge Deflector MTD-731-1409B
...
66
Mulching Baffle Plug MTD-782-5007C
...
67
Mulching Baffle - R.R. MTD-782-5004B
...
70
Wave Washer MTD-736-0182
...
71
Spring Washer MTD-736-0105
...
72
HUBCAP-SPOKE YELLOW If equipped MTD-731-1426B
...
73
Shoulder Screw MTD-938-0481A
...
76
FLAT WASHER MTD-936-0456
...
80
Foam Grip MTD-720-0312
...
81
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
82
Hex Flange Lock Nut 3/8-16 MTD-712-3005
...
83
Hex Cap Screw 3/8-16 X 1.0 MTD-710-0514
...
84
Torsion Spring MTD-932-0731
...
85
Hinge Pin MTD-747-0710A
...
87
SPRING WASHER BELL MTD-736-0270
...
88
Hex Screw 3/8-16 x .75 MTD-710-0216
...
89
Bell Washer .39 x 1.13 X .062 MTD-736-0331
...
90
Hex Nut 3/8-16 MTD-712-0798
...
92
Torsion Spring MTD-932-0809
...
93
Front Axle Bolt MTD-738-0102
...
94
MOUNTING BRACKET MTD-782-7006
...
95
Hex Screw 1/4-14 x .625 MTD-710-0896
...
96
MOUNTING BRACKET MTD-782-9050-0637
