Ranch King by MTD 11A-413C205 (2003) Push Walk-Behind Mower

Model: 11A-413C205 (2003)

Save Part Not Listed?
product name

General Assembly (Plastic Rear Door)

...
...
1
Control Handle MTD-747-1161A
...
2
Upper Handle MTD-749-1092A
...
3
Grass Bag Frame MTD-747-04080A
...
7
Lower Handle MTD-749-0928A-0637
...
8
Wing Nut MTD-720-0279
...
9
Rope Guide MTD-710-1205
...
10
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
11
GRASS CATCHER BAG MTD-964-0309
...
xx
Grass Bag Assembly w/ Bag-Fill Ind. If equipped MTD-764-0650
...
12
Hand Knob MTD-720-0284
...
13
Saddle Washer MTD-736-0451
...
14
Cable Tie MTD-725-0157
...
15
Carriage Bolt 1/4-20 MTD-710-0703
...
16
REAR DOOR 21" MTD-931-04134
...
17
SPACER MTD-950-04162
...
18
TORSION SPRING (LH) MTD-932-04071
...
xx
TORSION SPRING (RH) MTD-932-04072
...
19
HANDLE BRACKET (RH) MTD-787-01016-0637
...
xx
HANDLE BRACKET (LH) MTD-787-01015-0637
...
20
Rear Wheel Refer to "Wheel Chart (Plastic Rear Door)" MTD-NA
...
21
LH Rear Baffle MTD-782-5003A
...
22
Hub Cap If equipped MTD-731-0981C
...
23
21" DECK MTD-787-01103
...
24
AB Screw 1/4-14 x .625" MTD-710-1017
...
25
FRONT BAFFLE MTD-782P5002B
...
26
Blade Adapter MTD-748-0376E
...
27
21-inch Mulching Blade MTD-942-0741A
...
28
Hex Bolt 3/8-24 x 1.5 MTD-710-1044
...
29
BLADE BELL SUPPORT MTD-736-0524B-1
...
30
Height Adjustment Plate MTD-787-01290A
...
31
Pivot Bar MTD-15262B
...
32
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
33
Front Spring Lever MTD-94832
...
34
Shoulder Screw MTD-738-0507B
...
35
Bell Washer .375 x .870 MTD-736-0105
...
36
Front Wheel MTD-NA
...
37
Shoulder Screw .498 x 1.4 MTD-738-0102
...
38
Mulching Baffle - R.R. MTD-782-5004B
...
39
Control Cable (brake) MTD-946-0957
...
xx
Control Cable - 40.00" MTD-946-1130
...
xx
Control Cable (brake) MTD-946-0554
...
xx
Control Cable (brake) MTD-946-1137
...
40
Foam Grip (not shown); If equipped MTD-720-0295
...
41
Rear Trailing Shield MTD-731-04998
...
42
TRAILSHIELD WIRE MTD-732P0700
...
43
FRONT END COVER If equipped MTD-731-1506A
...
44
Wing Nut MTD-712-0397A
...
45
Hex L-Washer Hd. Screw 3/8-16 x 1.0 MTD-710-0654A
...
46
Lever Assembly: Rear Height Adj. MTD-687-02020
...
47
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON MTD-14766
...
48
AB Screw 1/4-14 x .625 MTD-710-0896
...
49
Flange Lock Nut 3/8-16 MTD-912-0431
...
50
Hairpin Clip MTD-714-0104
...
51
TT Sems Screw 3/8-16 x 1.0 MTD-710-0654A
...
52
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
53
Handle Bracket Assy. Rear LH MTD-687-02037
...
xx
Handle Bracket Assy. Rear RH MTD-687-02036
...
54
Rear Axle Bolt If equipped MTD-738-0213
...
55
Spacer.380" I.D. x .625" O.D. x .227 If equipped MTD-950-0535
...
56
Wave Washer.510 ID x.750 OD If equipped MTD-936-0504
...
57
REAR CHUTE DEFLECTOR If equipped MTD-731-1405A
...
58
ROD If equipped MTD-711-0996
...
59
Push Speed Nut If equipped MTD-726-0201

General Assembly (Steel Rear Door)

...
...
1
Control Handle (Std.) MTD-747-1161A
...
2
Rope Guide MTD-710-1205
...
3
Handle Knob 1/4-20 Thd. MTD-720-0279
...
4
Curved Hd. Bolt 5/16-18 x 2" Lg MTD-710-1174
...
6
Hand Knob MTD-736-0451
...
7
Oval C-Sunk Mach. Scr. If equipped MTD-710-0605
...
8
Curved Spring Wash. .66" I.D. If equipped MTD-936-0501
...
9
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
10
Throttle Lever If equipped MTD-946-0876
...
11
Upper Handle MTD-749-1092A
...
xx
UPPER HANDLE MTD-749-0705
...
12
Foam Grip (Optional) MTD-720-0295
...
13
Lower Handle MTD-749-0928A-0637
...
14
Cable Tie MTD-725-0157
...
15
Rear Catcher Frame MTD-764-0310A-0637
...
16
Control Cable (brake) MTD-946-0957
...
xx
Control Cable - 40.00" MTD-946-1130
...
xx
Control Cable (brake) MTD-946-0554
...
xx
Control Cable (brake) MTD-946-1137
...
17
Throttle Cable If equipped MTD-946-1115
...
18
FRONT CATCHER FRAME (POWDER BLACK) MTD-764-0311-0637
...
19
GRASS CATCHER BAG MTD-964-0309
...
xx
GRASS CATCHER BAG MTD-964-0309
...
20
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
21
Door Spring - R.H. MTD-732-0678
...
22
SPRING-DOOR (LH) MTD-932-0677
...
23
REAR DISCHARGE DOOR MTD-782-7000
...
24
Cable Clamp (B&S) If equipped MTD-BS-690798
...
xx
CLIP-CONDUIT If equipped MTD-TC-27793
...
25
THROTTLE WITH CHOKE HOUSING If equipped MTD-646-0876
...
26
THROTTLE CONTROL BOX COMPLETE If equipped MTD-811-00748
...
27
Engine MTD-NA
...
28
Hex Wash. Hd. Scr. #10-32 x .62" Lg. (B&S) If equipped MTD-710-1237
...
29
INSULATOR-SPARK PLUG If equipped MTD-735-0639
...
30
TRAILSHIELD WIRE MTD-732P0700
...
31
Rear Trailing Shield MTD-731-04998
...
32
Blade Adapter Kit (Incl. Ref. 13-15) (Incl. Ref. 33, 34) MTD-753-06315
...
33
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
34
BLADE BELL SUPPORT MTD-736-0524B-1
...
36
21-inch Mulching Blade MTD-942-0741A
...
xx
21" BLADE (HI LIFT BOW-TIE) MTD-742-0641-0637
...
37
Saddle Wash. .320 I.D. x .93 O.D. MTD-736-0451
...
38
Flange Lock Nut 3/8-16 MTD-912-0431
...
39
BELL WASHER MTD-936-0356
...
40
Hex Nut 3/8-16 Thd. MTD-712-0798
...
41
Height Adjustment Plate MTD-787-01290A
...
42
Pivot Bar MTD-15262B
...
43
Front Spring Lever MTD-94832
...
44
Shld. Bolt .5" Dia. x .357" MTD-738-0507B
...
45
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
46
Axle Bolt MTD-738-0102
...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
48
SPRING LEVER MTD-732-0417A
...
49
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) Not illustrated MTD-753-06761
...
50
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON Not illustrated MTD-14766
...
51
FRONT BAFFLE MTD-782P5002B
...
52
Hex L-Wash. Hd. Scr. 3/8-16 x 1" MTD-710-0654A
...
53
LH Rear Baffle MTD-782-5003A
...
54
Torx Mach. AB-Tap Scr. 1/4 x 62" MTD-710-1017
...
55
Wash.Scr. 1/4 -14 x .625 MTD-710-0896
...
56
KIT-HANDLE BRACKET MTD-753-05994
...
57
KIT-HANDLE BRACKET MTD-753-05994
...
58
DECK ASSEMBLY-21IN COLOR MTD-782-0310A
...
59
Wheel Assy. Comp. (See Wheel Chart ) MTD-NA
...
60
Hub Cap If equipped MTD-731-0981C
...
xx
HUB CAP If equipped MTD-920-0249
...
61
GRASSBAG MTD-764-0433
...
62
HARDTOP COVER MTD-731-1322A
...
xx
HARDTOP COVER MTD-731-1876
...
63
Pan Hd. Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
64
Hex Nylon L-Nut 1/4-20 Thd. MTD-712-0324
...
65
MOUNTING BRACKET MTD-782-9011-0637
...
66
Mulching Baffle Plug If equipped MTD-782-5007C
...
67
Mulching Baffle - R.R. If equipped MTD-782-5004B
...
68
REAR CHUTE DEFLECTOR If equipped MTD-731-1405A
...
69
ROD If equipped MTD-711-0996
...
70
Push Speed Nut If equipped MTD-726-0201
...
71
Truss Scr. #10-24 x .38" Lg. MTD-710-0192
...
72
KNOB MTD-720-0275
...
73
FRONT END COVER If equipped MTD-731-1506A
...
74
Rear Axle Bolt If equipped MTD-738-0213
...
xx
Axle Bolt MTD-738-0102
...
75
Spacer.380" I.D. x .625" O.D. x .227 If equipped MTD-950-0535
...
76
Wave Washer.510 ID x.750 OD If equipped MTD-936-0504
...
77
UNKNOWN MTD-NA
...
78
UNKNOWN MTD-NA

Wheel Chart (Plastic Rear Door)

...
...
xx
Wheel, 8 x 1.7 Gray MTD-734-1855
...
xx
8 x 1.8 Spoke Wheels w/o bearing, Bar Tread Gray MTD-734-1987
...
xx
7 x 1.8 Spoke Wheels w/o bearing, Bar Tread Gray MTD-734-1988
...
xx
8 x 1.75 Disc Hub Wheels w/o bearing, Bar Tread Gray MTD-634-0020
...
xx
Wheels - Front MTD-753-08093
...
xx
Wheels - Front MTD-753-08093
...
xx
BALL BEARING MTD-941-0484

Wheel Chart (Steel Rear Door)

...
...
xx
Wheel, 8 x 1.7 See "General Assembly (Steel Rear Door)" for tread. MTD-734-1855
...
xx
3 x 1.8 Sp., Wheels w/o bearings, Bar Tread, Grey See "General Assembly (Steel Rear Door)" for tread. MTD-734-1987
...
xx
7 x 1.8, Wheels w/o bearings MTD-734-1988
...
xx
Disc Hub, Wheels w/o bearings, Bar Tread, Grey See "General Assembly (Steel Rear Door)" for tread. MTD-634-0020
...
xx
Wheels - Front See "General Assembly (Steel Rear Door)" for tread. MTD-753-08093

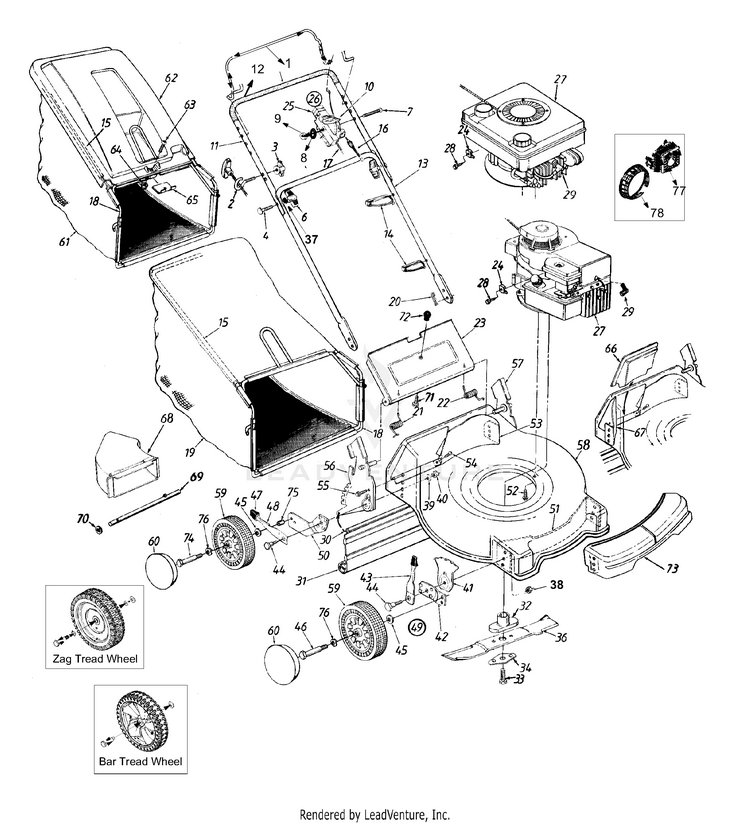

Schematic Image Zoomed
