Power Pro 31A-140-120 (1999) Snow Thrower

Model: 31A-140-120 (1999)

Save Part Not Listed?
product name

Chassis

...
...
1
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
2
Bolt - Carriage MTD-710-0276
...
3
Screw - Pan Head MTD-710-0323
...
4
Bolt - Carriage MTD-710-0451
...
5
Screw - Hex Washer MTD-710-0642
...
6
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
7
Screw - Hex Washer MTD-710-0773
...
8
Screw - Hex Washer MTD-710-0896
...
9
Screw - Hex Cap MTD-710-3015
...
10
WHEEL AXLE SERVICE KIT MTD-753-05480
...
11
Nut - Hex Center Lock MTD-712-0429
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Nut - Hex Lock MTD-712-0116
...
14
LOCK NUT 1/4 MTD-912-3027
...
15
LOCK NUT 1/4 MTD-912-3027
...
16
Knob MTD-720-0284
...
17
Keeper - Chute MTD-731-0851A
...
18
LOWER CHUTE MTD-731-0915B
...
19
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
20
Shave Plate MTD-731-1033
...
21
Spring - Extension MTD-732-0357A
...
22
Washer - Flat MTD-736-0108
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
25
Washer - Flat MTD-736-0176
...
26
Washer MTD-736-0159
...
27
Washer - Flat MTD-736-0326
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
30
BALL BEARING MTD-941-0600
...
31
Cable, 41.78" MTD-946-0910A
...
32
Spacer - Shoulder MTD-748-0234
...
33
LOWER HANDLE MTD-749-0796
...
34
Idler - Flat MTD-756-0313
...
35
BEARING CUP (POWDER BLACK) MTD-784-5174-0637
...
36
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
37
KIT-IDLER/BRAKE BRACKET MTD-753-05156
...
38
21" HOUSING MTD-684-0114
...
39
AUGER ASSEMBLY MTD-984-04027A
...
40
Auger Rubber Replacement MTD-753-0613
...
41
Screw - Hex Washer MTD-710-0352
...
42
CRANK BRACKET MTD-784-5720-0637
...
43
Screw - Cap MTD-710-0451
...
44
Washer - Bell MTD-736-0242
...
45
BUSHING .380 ID MTD-941-0475
...
46
Screw - Cap MTD-710-0459A

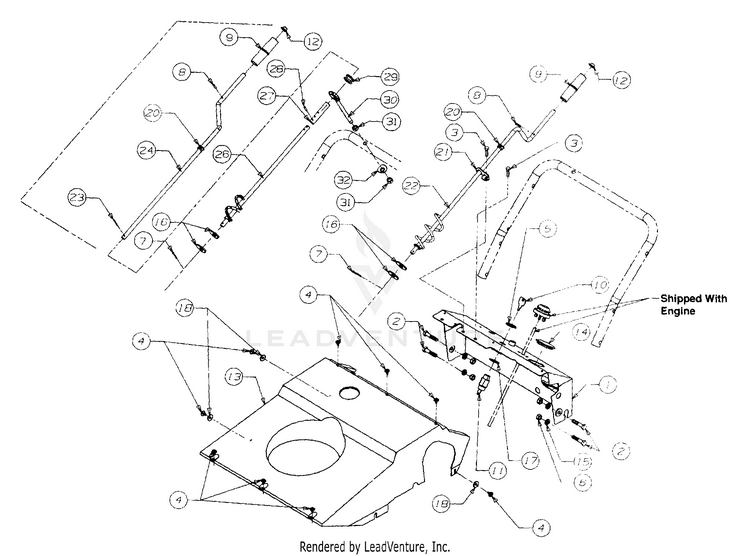

Chute Crank

...
...
1
DASH PANEL MTD-684-0056
...
2
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
3
Screw - Hex Tap MTD-710-0895
...
4
Screw - Hex Tap MTD-710-1268
...
5
Nut Hex MTD-712-0252
...
6
HEX NUT 5/16-18 MTD-712-3010
...
7
Pin - Cotter MTD-714-0104
...
8
Rolled Pin, 1/8 x .63 MTD-915-0138
...
9
Knob - Chute Crank MTD-720-0201A
...
10
Key MTD-925-0201
...
11
Ignition Switch MTD-925-1425
...
12
Nut Push MTD-726-0100
...
13
SHROUD MTD-731-0702
...
14
SPARK PLUG CAP MTD-731-1133C
...
15
Lock Wash. 5/16" I.D. MTD-936-0119
...
16
Washer - Flat MTD-736-0185
...
17
Washer Internal Lock MTD-736-0225
...
18
Washer Flat MTD-736-0400
...
20
BUSHING .380 ID MTD-941-0475
...
21
CHUTE CRANK BRACKET MTD-784-5178A
...
22
CHUTE CRANK ASSEMBLY MTD-784-5344
...
23
Cotter Pin (Optional Model 140 Chute Crank Assembly) MTD-714-0111
...
24
Upper Chute Crank (Optional Model 140 Chute Crank Assembly) MTD-747-0737-0637
...
26
LOWER CHUTE CRANK (POWDER BLACK) (Optional Model 140 Chute Crank Assembly) MTD-684-0126-0637
...
27
SPACER-.38IDX.500 x 2.50LG (Optional Model 140 Chute Crank Assembly) MTD-950-0785
...
28
Rolled Pin, 1/8 x .63 (Optional Model 140 Chute Crank Assembly) MTD-915-0138
...
29
Grommet - Rubber (Optional Model 140 Chute Crank Assembly) MTD-735-0234
...
30
EYEBOLT (Optional Model 140 Chute Crank Assembly) MTD-747-0697
...
31
HEX NUT 5/16-18 (Optional Model 140 Chute Crank Assembly) MTD-712-3010
...
32
Washer - Saddle (Optional Model 140 Chute Crank Assembly) MTD-736-0451

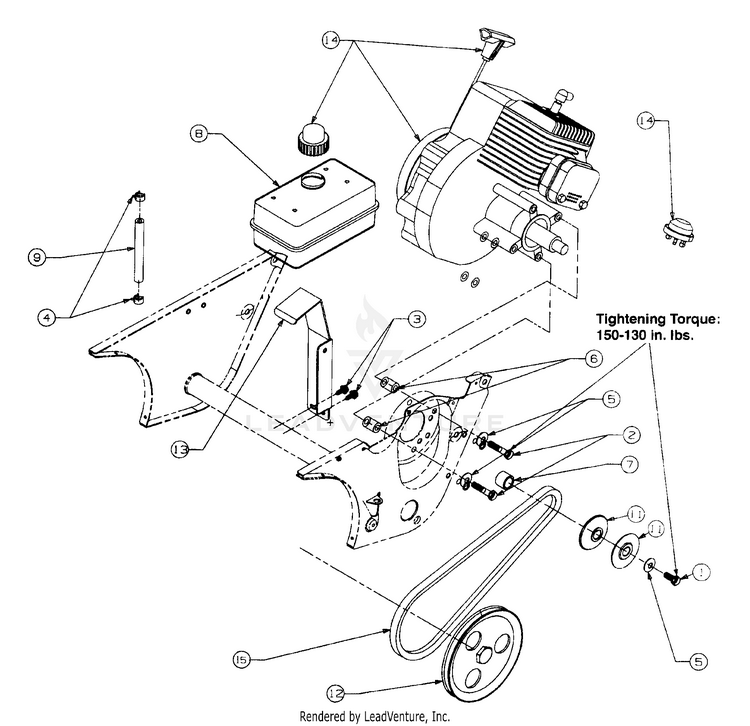

Drive Assembly / Fuel Tank

...
...
1
BRACKET-TANK SUPPORT Tighten Torque: 150-130 in. lbs. MTD-705-5139
...
2
Screw - Hex Cap Tighten Torque: 150-130 in. lbs. MTD-710-0157
...
3
UNKNOWN MTD-NA
...
4
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
5
Screw - Washer MTD-710-0896
...
6
Screw - Hex Cap MTD-710-3025
...
7
Clamp - Hose MTD-726-0205
...
8
Lock Wash. 5/16" I.D. MTD-936-0119
...
9
Washer - Bell MTD-736-0242
...
?10
L-Wash. 1/4" I.D. MTD-936-0329
...
11
BUSHING .380 ID MTD-941-0475
...
12
FUEL HOSE 1/4-24" MTD-751-22813-24
...
13
FUEL TANK 2 QT. MTD-751-0540A
...
14
TANK CAP MTD-751-0603B
...
15
V-Belt 1/2 x 35.0" Lg. MTD-954-0101A
...
?16
Pulley Half, .625 x 2.25 MTD-956-0416B
...
?17
Pulley MTD-756-0475
...
?19
Obtain from Engine Manufacturer MTD-NA
...
xx
STARTER KI Not illustrated. (Optional) MTD-OEM-390-996

Handle Assembly Control

...
...
1
SCREW 1/4-20 x 1.310 MTD-710-1270
...
2
Bolt Carriage MTD-710-0487
...
3
Nut Insl. Lock MTD-712-0324
...
4
Hand Knob MTD-920-0276
...
5
Tie Cable MTD-725-0157
...
6
Body - Lever Control MTD-746-0883
...
7
AUGER BAIL MTD-747-0946
...
8
UPPER HANDLE MTD-749-0705
...
9
Washer Saddle MTD-736-0451

Wheel Assembly

...
...
1
WHEEL ASSEMBLY W/TIRE MTD-734-1176
