Power Pro 317E642E120 (1997) Snow Thrower

Model: 317E642E120 (1997)

Back To Assemblies

Save Part Not Listed?
product name

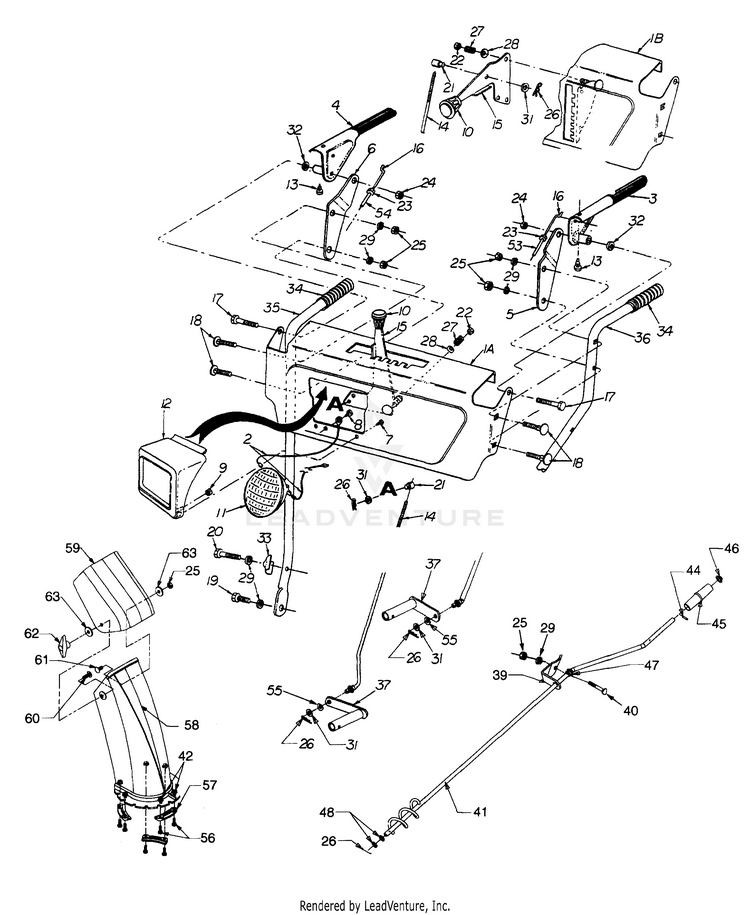

Handle Assembly

...
...
1A
PANEL HANDLE ASSEMBLY:2 For model 642 MTD-605-5002
...
1B
PANEL HNDL ASSEMBLY COLOR For model 644 MTD-605-5000
...
2
LIGHT HARNESS ASSEMBLY For model 642 MTD-929-0058B
...
3
CLUTCH LEVER (LH) MTD-705-5233A
...
4
CLUTCH LEVER (RH) MTD-705-5234A
...
5
PANEL SUPPORT BRACKET (LH) MTD-705-5275
...
6
PANEL SUPPORT BRACKET (RH) MTD-705-5274
...
7
Truss Mach.-Tap Scr. #10 x .50 For model 642 MTD-710-0779A
...
8
Hex B-Tap Scr. 1/4-28 x .25" Lg. For model 642 MTD-710-0898
...
9
SELF TAPP NUT For model 642 MTD-712-0415
...
10
Knob MTD-920-0232
...
11
HEADLIGHT For model 642 MTD-925-1300
...
12
HEAD LIGHT BEZEL For model 642 MTD-731-1317
...
13
Rubber Bumper MTD-735-0199A
...
14
SHIFT ASSEMBLY ROD MTD-747-0921
...
15
KIT-SHIFT HANDLE:S MTD-753-05395
...
16
Cable "Z" Fitting MTD-946-0778
...
17
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
18
Carriage Bolt 5/16-18 x 1.50 MTD-710-0262
...
19
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
20
Hex Screw 5/16-18 x 1.75" Lg. MTD-710-3180
...
21
Engagement Ferru MTD-911-0677
...
22
Hex Nut 3/8-24 MTD-712-0116
...
23
Hex Nut 10-24 MTD-712-0121
...
24
Hex L-Nut 5/16-18 MTD-712-0429
...
25
HEX NUT 5/16-18 MTD-712-3010
...
26
Int. Cotter Pin 5/16 Dia. MTD-714-0104
...
27
Compression Spring .38 ID x .88 Lg. MTD-732-0193
...
28
Bell-Wash. .400 ID x .88 OD x .06 MTD-736-0105
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
31
Flat Washer .34 ID x .63 OD MTD-736-0264
...
32
SPACER MTD-750-1032
...
33
Handle Tab MTD-984-5599
...
34
Grip MTD-720-0274
...
35
HANDLE (RH) MTD-749-0910C-0637
...
36
HANDLE (LH) MTD-749-0911A
...
37
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
39
BRACKET MTD-784-5678
...
40
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
41
Chute Crank Ass'y MTD-984-0022
...
42
LOCK NUT 1/4 MTD-912-3027
...
44
Rolled Pin, 1/8 x .63 MTD-915-0138
...
45
Knob-Chute Crank MTD-720-0201A
...
46
Cap Speed Nut 3/8" Rod MTD-726-0100
...
47
BUSHING .380 ID MTD-941-0475
...
48
Flat Washer .385 ID x .62 OD x .06 MTD-736-0140
...
53
Cable-Auger Clutch MTD-946-0897
...
54
Cable-Drive Clutch MTD-946-0898
...
55
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
56
Hex Bolt 1/4-20 x .75" Lg. (Gr. 5) MTD-710-3015
...
57
Chute Keeper MTD-731-0851A
...
58
Lower Chute MTD-731-1300E
...
59
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
60
Carriage Bolt 5/16-18 x 1" Lg. MTD-710-0276
...
61
Carriage Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
62
Knob MTD-720-0284
...
63
Fl-Wash. .34" I.D. x 1.125" O.D. MTD-736-0231
