Power Pro 317-140-120 (1997) Snow Thrower

Model: 317-140-120 (1997)

Save Part Not Listed?
product name

Chassis

...
...
1
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
2
Carriage Bolt MTD-710-0276
...
3
Pan Head Screw MTD-710-0323
...
4
Carriage Bolt MTD-710-0451
...
5
Hex Washer Screw MTD-710-0642
...
6
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
7
Hex Washer Screw MTD-710-0773
...
8
Hex Washer Screw MTD-710-0896
...
9
Hex Cap Screw MTD-710-3015
...
10
WHEEL AXLE SERVICE KIT MTD-753-05480
...
11
Hex Center Lock Nut MTD-712-0429
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Hex Lock Nut MTD-712-0116
...
14
LOCK NUT 1/4 MTD-912-3027
...
15
LOCK NUT 1/4 MTD-912-3027
...
16
Knob MTD-720-0284
...
17
Chute Keeper MTD-731-0851A
...
18
LOWER CHUTE MTD-731-0915B
...
19
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
20
Shave Plate MTD-731-1033
...
21
Extension Spring MTD-732-0357A
...
22
Flat Washer MTD-736-0108
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
25
Flat Washer MTD-736-0176
...
26
Washer MTD-736-0159
...
27
Flat Washer MTD-736-0326
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
30
BALL BEARING MTD-941-0600
...
31
Cable, 41.78" MTD-946-0910A
...
32
Spacer MTD-748-0234
...
33
LOWER HANDLE MTD-749-0796
...
34
Flat Idler MTD-756-0313
...
35
BEARING CUP (POWDER BLACK) MTD-784-5174-0637
...
36
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
37
KIT-IDLER/BRAKE BRACKET Replaces 784-5180 Service Kit MTD-753-05156
...
38
KIT-SNOWTH Replaces 784-5325 Service Kit MTD-753-0713
...
39
AUGER ASSEMBLY MTD-984-04027A
...
40
Auger Rubber Replacement kit MTD-753-0613
...
41
Hex Washer Screw MTD-710-0352
...
42
CRANK BRACKET MTD-784-5720-0637
...
?43
Cap Screw MTD-710-0451
...
44
Bell Washer MTD-736-0242
...
45
BUSHING .380 ID MTD-941-0475
...
46
Hex Screw MTD-710-0191
...
xx
Grease (Not Shown) MTD-734-0133
...
xx
WHEEL ASSEMBLY W/TIRE (Not Shown) MTD-734-1176

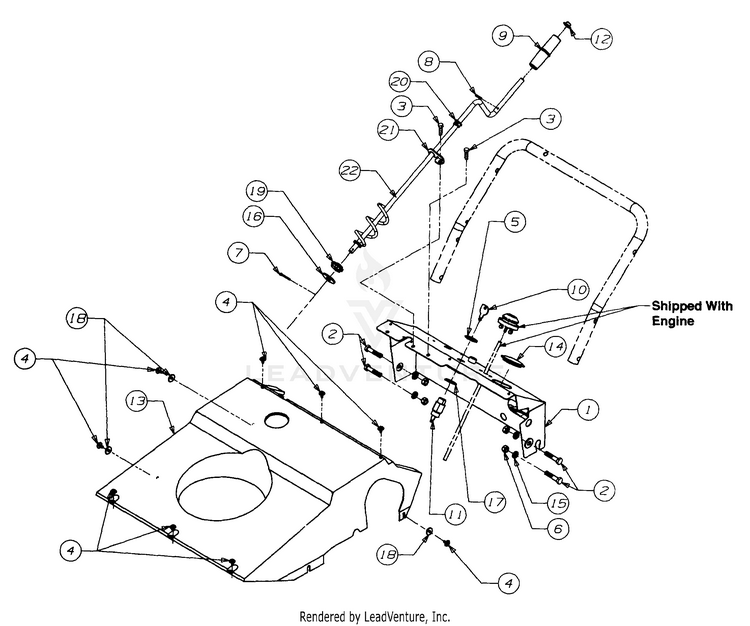

Cover & Dash

...
...
1
DASH PANEL MTD-684-0056
...
2
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
3
Screw - Hex Tap MTD-710-0895
...
4
Screw - Hex Tap MTD-710-1268
...
5
Nut Hex MTD-712-0252
...
6
HEX NUT 5/16-18 MTD-712-3010
...
7
Pin - Cotter MTD-714-0474
...
8
Rolled Pin, 1/8 x .63 MTD-915-0138
...
9
Knob - Chute Crank MTD-720-0201A
...
10
Key MTD-925-0201
...
11
Ignition Switch MTD-925-1425
...
12
Nut Push MTD-726-0100
...
13
SHROUD MTD-731-0702
...
14
PLUG MTD-731-0732
...
15
Lock Wash. 5/16" I.D. MTD-936-0119
...
16
Washer Flat MTD-736-0133
...
17
Washer Internal Lock MTD-736-0225
...
18
Washer Flat MTD-736-0400
...
19
BUSHING-HEX MTD-741-0403
...
20
BUSHING .380 ID MTD-941-0475
...
21
CHUTE CRANK BRACKET MTD-784-5178A
...
22
CHUTE CRANK ASSEMBLY MTD-784-5344

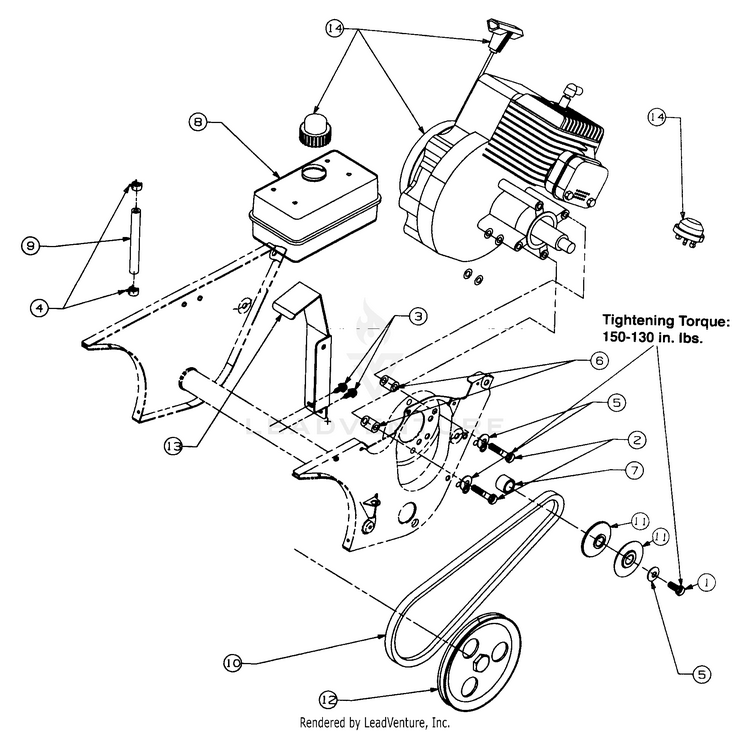

Engine & V-Belt

...
...
1
Screw - Hex Cap MTD-710-0157
...
2
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
3
Screw - Washer MTD-710-0896
...
4
Clamp - Hose MTD-726-0205
...
5
Washer - Bell MTD-736-0242
...
6
Spacer.325" I.D. MTD-950-0589
...
7
SPACER MTD-750-0716A
...
8
FUEL TANK MTD-TC-32660A
...
9
FUEL HOSE LOW PERMEATION MTD-751-10349-13
...
10
Wheel Drive Belt MTD-954-0367
...
11
Pulley Half, .625 x 2.25 MTD-956-0416B
...
12
PULLEY-6.0 OD x 3/8 MTD-756-0550
...
13
BRACKET-EN MTD-784-5177
...
14
(Obtain from Engine Manufacturer) MTD-NA

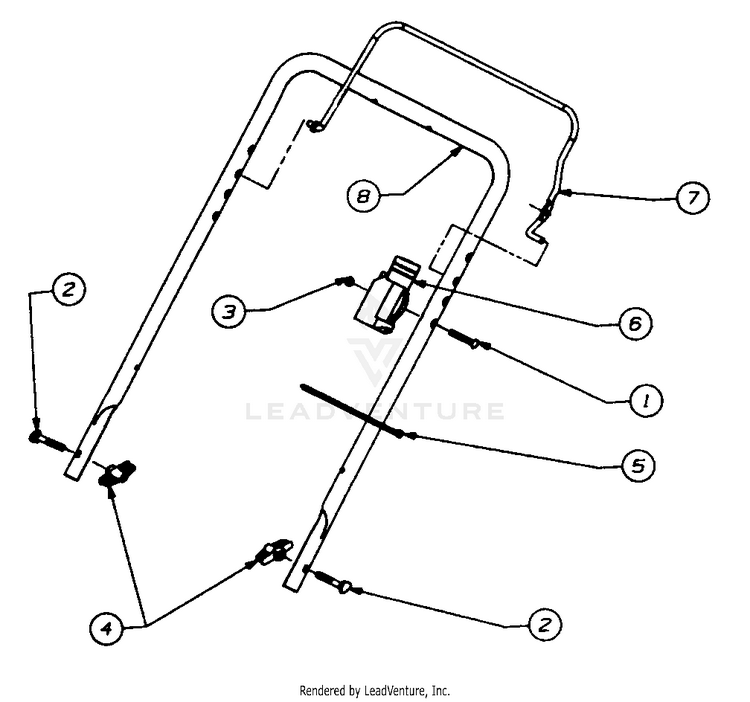

Upper Handle

...
...
1
SCREW 1/4-20 x 1.310 MTD-710-1270
...
2
Bolt Carriage MTD-710-1174
...
3
Nut Insl. Lock MTD-712-0324
...
4
Hand Knob MTD-920-0276
...
5
Tie Cable MTD-725-0157
...
6
Body - Lever Control MTD-746-0883
...
7
AUGER BAIL MTD-747-0946
...
8
UPPER HANDLE MTD-749-0705

Wheels

...
...
1
WHEEL ASSEMBLY W/TIRE MTD-734-1176
...
xx
WHEEL-7X1.50 MTD-734-04062A
