Power Pro 21A-410-120 (1997) Tiller

Model: 21A-410-120 (1997)

Back To Assemblies

Save Part Not Listed?
product name

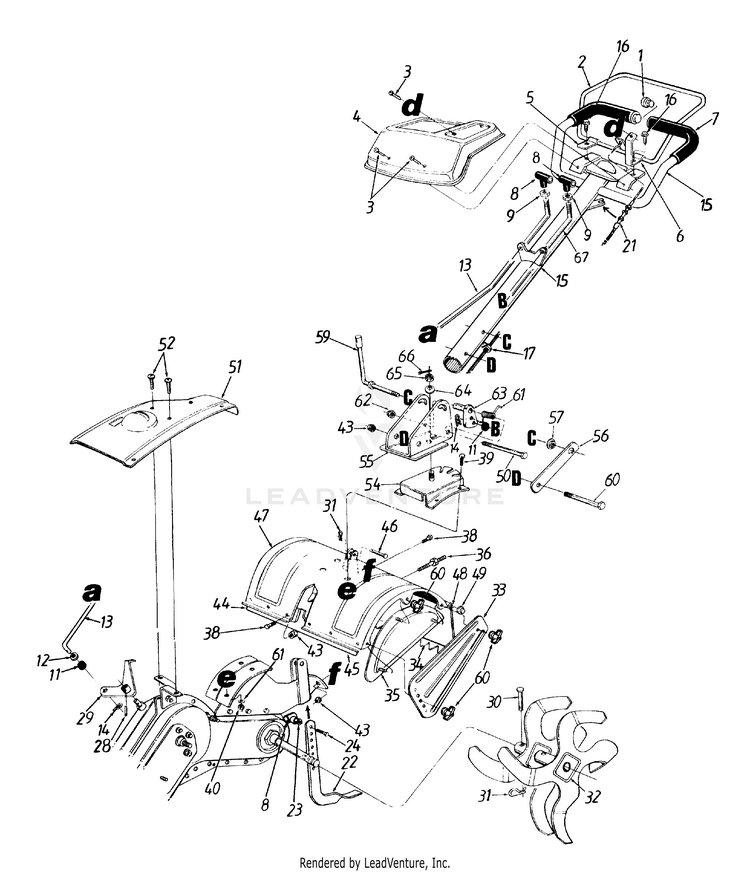

Handle Assembly/Tine Assembly

...
...
1
END PLUG MTD-735-0246A
...
2
CLUTCH CONTROL ASSEMBLY MTD-647-0014
...
3
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
4
HANDLE COVER MTD-786-0131
...
5
RETAINING BRACKET MTD-786-0098-0637
...
6
RETAINING BRACKET MTD-786-0118-0637
...
7
Grip MTD-720-0278A
...
8
Knob MTD-720-0210A
...
9
HEX JAM NUT 3/8-16 GR5 MTD-712-3008
...
11
Rubber Washer MTD-735-0127
...
12
Fl-Wash. .344" I.D. x .6" O.D. MTD-736-0204
...
13
GEAR SHIFT ROD MTD-747-0902
...
14
Hairpin Clip MTD-714-0104
...
15
HANDLE ASSEMBLY MTD-649-0023
...
16
Tap Scr. 1/4-14 x 5/8" Lg. MTD-710-0896
...
17
CABLE CLIP MTD-726-0330
...
21
Clutch Cable MTD-946-0916
...
22
Depth Bar MTD-786-0120-0637
...
23
Fl-Wash. MTD-936-0117
...
24
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
28
Spiral Pin 3/16" x 1" MTD-715-0120
...
29
CRANK SHIFT ASSEMBLY MTD-686-0095
...
30
Clevis Pin MTD-711-0415
...
31
Hairpin Clip MTD-714-0149B
...
32
Tine Ass'y. - L.H. MTD-642-0015-0637
...
xx
Tine Ass'y. - R.H. (Not Shown) MTD-642-0016-0637
...
33
Side Shield MTD-786-0090A
...
34
Rear Tine Shield MTD-786-0113
...
35
END COVER ASSEMBLY New Part MTD-686-0044B
...
36
SCREW-SOC HD CAP I/4-28X1.50 MTD-710-0849
...
38
Hex Bolt 5/16-18 x 1" Lg. (Gr. 5) MTD-710-0376
...
39
Carriage Bolt 3/8-16 x 1" Lg. MTD-710-3097
...
40
Hex Ins. L-Nut 3/8-16 Thd. MTD-712-0798
...
43
HEX FLANGE NUT MTD-712-3004A
...
44
TINE SHIELD BRACKET (RH) MTD-786-0076-0637
...
45
TINE SHIELD BRACKET (LH) MTD-786-0077-0637
...
46
Clevis Pin .375" Dia. MTD-711-0415
...
47
TINE SHIELD MTD-786-0085A
...
48
Tiller Flap Rod MTD-747-0432
...
49
PUSH NUT MTD-726-0106
...
50
Hex Bolt 5/16-18 x 3" Lg. MTD-710-0189
...
51
SHIFT COVER New Part MTD-786-0101B
...
52
Torx Mach. AB-Tap Scr. 1/4 x .6" MTD-710-1017
...
54
HANDLE BRACKET (LH) MTD-786-0109
...
55
HANDLE BRACKET (RH) MTD-786-0108
...
56
Hex Nut Retainer Brkt. MTD-784-0191
...
57
Hex Flange Nut 3/8-24 Thd. MTD-712-0379
...
?58
Spacer .322 Dia. MTD-750-0885A
...
59
Handle Adjustment Crank MTD-784-0190
...
60
Knob 5/16-18 Thd. MTD-712-0421
...
61
L-Washer 3/8" I.D. MTD-736-0169
...
62
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
63
HANDLE SWING LINK MTD-748-0375
...
64
Bell-Wash. 5/8" I.D. x 1.25" O.D. MTD-736-0317
...
65
5/8" Nut MTD-712-0396
...
66
Pin MTD-914-3024
...
67
ROD-HANDLE ADJUSTM MTD-747-0901
