Poulan W25CF - 967184201 (2012-11)

Model: W25CF - 967184201 (2012-11)

Back To Assemblies

Save Part Not Listed?
product name

SHAFT HANDLE

...
...
1
ASSY THROTTLE CABLE PLN-530057991
...
2
TRIGGER PLN-530058000
...
3
HSG THROTTLE RH PLN-530057582
...
4
SCREW PLN-530015880
...
5
BOLT\-1/4-20X1-1/2 PLN-530015821
...
6
KIT DRIVE SHAFT ASSY W/O DECAL PLN-581748205
...
7
FLEXSHAFT CS 51" PLN-581748401
...
8
HSG THROTTLE LH PLN-530057581
...
9
KIT 3/4" ASSIST HANDLE INCL 5 10 PLN-530071747
...
10
Nut PLN-530091373
...
11
LINE CUTTER INCL 12 PLN-530052286
...
12
Screw PLN-530015957
...
13
BOLT, TYPE 2 PLN-530015820
...
14
Nut PLN-530091373
...
15
SHIELD KIT INCL 11 12 13 14 PLN-581494801
...
16
HEAD CUTTING FIX LINE PLN-545202402
...
17
CAP FIXED LINE 6 PLN-545202501
...
18
ACCY WE.095 X 16.5" LINE 12PCS PLN-581681001

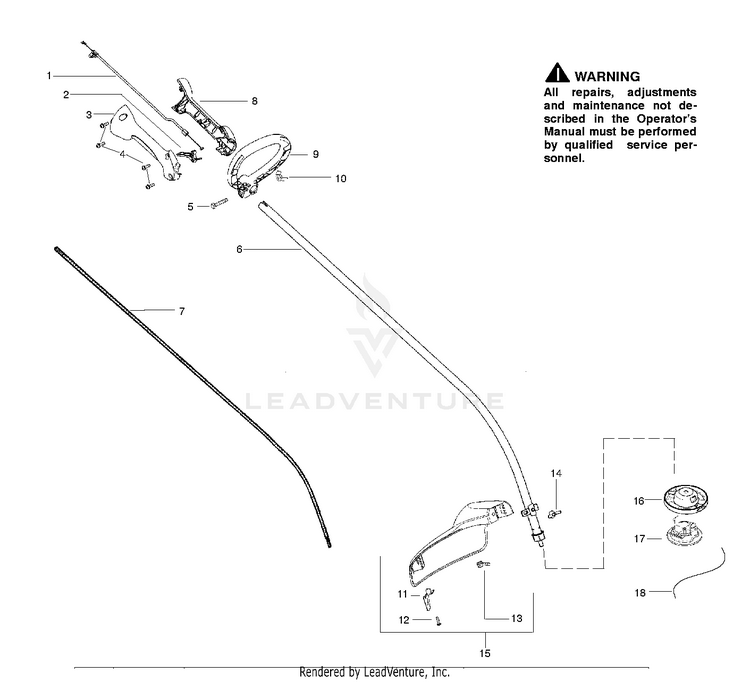

Schematic Image Zoomed
