Poulan TE450CXL LE Gas Trimmer Type 4

Model: TE450CXL LE Gas Trimmer Type 4

Back To Assemblies

Save Part Not Listed?
product name

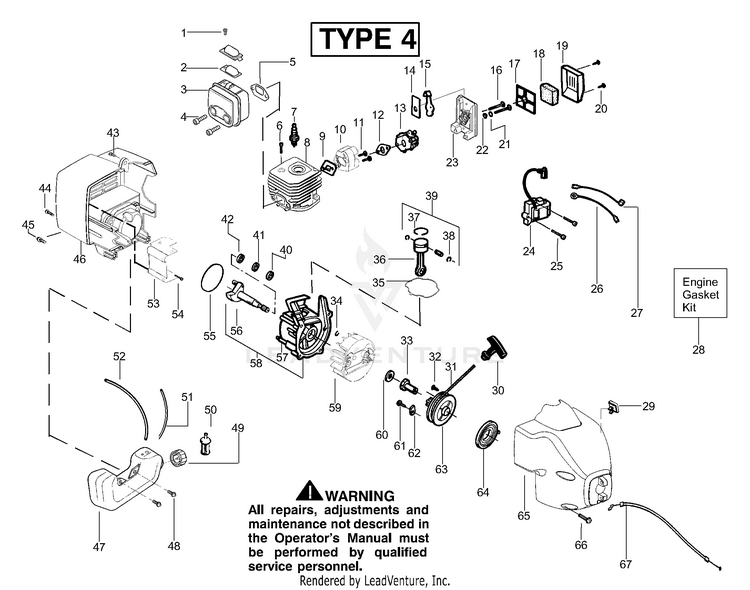

Engine Type 4

...
...
1
Screw-screen PLN-530015241
...
2
Kit-Spark Arrestor PLN-530071544
...
3
Kit-Muffler (Incl. 1,2,4,5) PLN-530071672
...
4
Bolt-Muffler PLN-530016338
...
5
Gasket-Muffler (kit) PLN-530071363
...
6
Screw-Cylinder PLN-530015953
...
7
Spark Plug (RCJ-6Y) PLN-952030249
...
8
Kit-Cylinder PLN-530071668
...
9
Gasket-Cyl/Carb.(kit) PLN-530071363
...
10
Carb. Adapter PLN-530057635
...
11
Screw-Carb Adptr. PLN-530016309
...
12
Gasket-Carb.(kit) PLN-530071363
...
13
Kit-Carb. Ass'y. (C1U-W10B) PLN-530071628
...
14
Choke Plate PLN-530038747
...
15
Choke Shutter PLN-530035499
...
16
Screw-Carburetor PLN-530016393
...
17
Filter Support Plate PLN-530036569
...
18
Air FIlter Foam PLN-530036575
...
19
Air Filter Cover PLN-530054414
...
20
Screw-Air Box PLN-530015892
...
21
Choke Spacer PLN-530015852
...
22
Washer PLN-530015254
...
23
Air Box PLN-530052431
...
24
Kit - Ignition Module PLN-545081826
...
25
Screw-Ignit. Module PLN-530016357
...
26
Assy-Ground Wire PLN-530054448
...
27
Assy-Lead Wire PLN-530054449
...
28
Kit-Engine Gasket (Incl. 5,9,12,35,55) PLN-530071363
...
29
Kit-Switch-Off/On PLN-530069572
...
30
Handle-Starter PLN-530027569
...
31
Kit-Rope PLN-530071325
...
32
Screw PLN-530016326
...
33
Coupling-Drive PLN-530027953
...
34
Ret. Ring/C'shaft PLN-530015941
...
35
Seal-Cylinder(kit) PLN-530071363
...
36
CONNECTING ROD ASSY PLN-530049817
...
37
RING PISTON PLN-545154001
...
38
Retainer-Piston Pin PLN-530015162
...
39
Kit-Piston (Incls. 37,38 & Pin) PLN-530071833
...
40
Bearing-Outer PLN-530055728
...
41
Seal-C'case PLN-530071615
...
42
Bearing-Inner PLN-530032125
...
43
Screw-Shd/Fan Hsg PLN-530016349
...
44
SCREW PLN-530016386
...
45
Screw PLN-530016349
...
46
Rear Shroud PLN-530056709
...
47
FUEL TANK ASSY (Incl. cap,lines,filter) PLN-545103802
...
48
Retainer-Tank PLN-530016379
...
49
Assy-Fuel Cap PLN-530014347
...
50
Assy-Fuel Pickup PLN-530095646
...
51
Fuel Line (Small) PLN-530069247
...
52
Fuel Line (Large) PLN-530069216
...
53
Shield-Heat PLN-530055351
...
54
Screw-Heat Shield PLN-530015805
...
55
O-ring-C'case(kit) PLN-530071363
...
56
Assy-Crankshaft PLN-530012413
...
57
Assy-Crankcase (Incl. 40-42) PLN-530012510
...
58
Assy-C'case/C'shaft (Incl. 34,56,57) PLN-530071670
...
59
FLYWHEEL ASSY PLN-545221701
...
60
Washer-Flat PLN-530015828
...
61
Screw-Pulley PLN-530015775
...
62
Retainer-Pulley PLN-530053985
...
63
Kit-Starter Pulley (Incl. 32) PLN-530071324
...
64
KIT STARTER SPRING PLN-545008011
...
65
Assy.-Fan Hsg. PLN-530056715
...
66
SCREW PLN-530016386
...
67
Assy-Throttle Cable PLN-530055546
