product name

Poulan TE450CXL LE Gas Trimmer Type 2

Model: TE450CXL LE Gas Trimmer Type 2

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

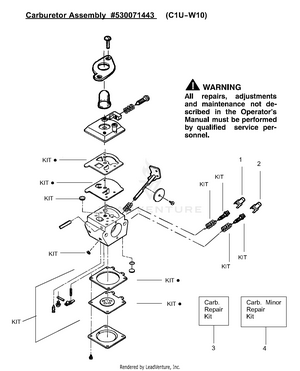

Carburetor Assembly (C1U-W10) P/N 530071443

...
...
1
Limiter Cap (low) PLN-530038478
...
2
Limiter Cap (high) PLN-530038479
...
3
Kit-Carburetor Repair (KIT = Indicates Contents) PLN-530071517
...
4
Kit-Carburetor Minor Repair (DOT = Indicates Contents) PLN-530071442
...
530071443
Carburetor Assembly (C1U-W10) PLN-530071443

Carburetor Assembly (C1U-W10B) P/N 530071628

...
...
530071628
Kit-Carburetor Assembly - C1U-W10B PLN-530071628

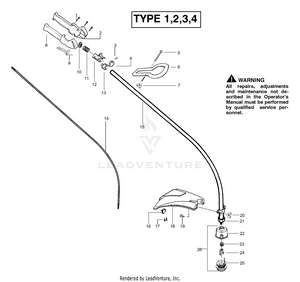

Driveshaft & Cutting Head

...
...
1
Screw PLN-530016179
...
2
Throttle Hsg. (Left) PLN-530047924
...
3
SCREW PLN-530016386
...
4
Locator-left PLN-530054159
...
5
Bolt-Handle PLN-530016173
...
6
Assist Handle PLN-530047919
...
7
Nut PLN-530091373
...
8
Throttle Hsg. (Right) PLN-530047923
...
9
Trigger-Throttle PLN-530038682
...
10
Washer PLN-530016193
...
11
Spring-Compression PLN-530042084
...
12
Actuator PLN-530047925
...
13
Locator-right PLN-530054160
...
14
Drive Shaft-Flex PLN-530095853
...
15
Drive Shaft Hsg. Ass'y PLN-530071416
...
16
Line Limiter PLN-530052287
...
17
Screw-Line Limiter PLN-530015814
...
18
Shield Kit Ass'y. (Incl. 16 & 17) PLN-530071328
...
19
Bolt-Shield PLN-530015820
...
20
Nut PLN-530091373
...
21
Dust Cup PLN-530095574
...
22
Assy-Hub. (TNG 5)-5/16" PLN-530095770
...
23
Spring-Return PLN-530401958
...
24
Retainer-Spool PLN-530401957
...
25
Accy W/E Spool w/Line PLN-952701678
...
26
Accy-Cutting Head PLN-952711593
...
xx
Operator's Manual Not Shown PLN-530163369
...
xx
Shaft Warning Decal Not Shown PLN-530055350

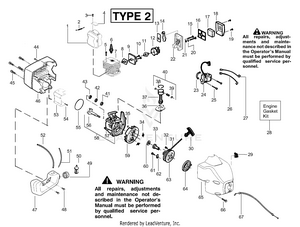

Engine Type 2

...
...
1
Kit-Muffler (Incl. 2,3,4) PLN-530071362
...
2
Muffler Spring PLN-530042088
...
3
Screw PLN-530015241
...
4
Screen-Spark Arrestor PLN-530071361
...
5
Screw-Cylinder PLN-530015953
...
6
Spark Plug (RCJ-6Y) PLN-952030249
...
7
Cylinder PLN-530012416
...
8
Gasket-Cylinder/Carb. PLN-530071363
...
9
Carb. Adapter PLN-530055535
...
10
Screw-Carb Adptr. PLN-530016014
...
11
Gasket-Carb. PLN-530071363
...
12
Kit-Carb. Ass'y. (C1U-W10) PLN-530071443
...
12
Kit-Carb. Ass'y. (C1U-W10B) PLN-530071628
...
13
Choke Plate PLN-530038747
...
14
Choke Shutter PLN-530035499
...
15
Screw-Carburetor PLN-530016353
...
16
Filter Support Plate PLN-530036569
...
17
Air FIlter Foam PLN-530036575
...
18
Air Filter Cover PLN-530054414
...
19
Screw-Air Box PLN-530015892
...
20
Choke Spacer PLN-530015852
...
21
Washer PLN-530015254
...
22
Air Box PLN-530052431
...
23
Spacer-Ignit. Module PLN-530036145
...
24
Kit - Ignition Module PLN-545081826
...
25
Screw-Ignit. Module PLN-530015954
...
26
Ground Wire Ass'y. PLN-530054448
...
27
Lead Wire Ass'y. PLN-530054449
...
28
Kit-Engine Gasket (Incl. 8,11,36,55) PLN-530071363
...
29
Kit-Switch PLN-530069572
...
30
Starter Handle PLN-530027569
...
31
Kit-Rope PLN-530071325
...
32
Screw PLN-530016326
...
33
Drive Coupling PLN-530027953
...
34
Spring Starter Dog PLN-530023817
...
35
Ret. Ring-C'case PLN-530015941
...
36
Gasket-Cylinder PLN-530071363
...
37
CONNECTING ROD ASSY PLN-530049817
...
38
RING PISTON PLN-545154001
...
39
Piston Pin Retainer PLN-530015162
...
40
Kit-Piston (Incls. 38,39 & Pin) PLN-530071833
...
41
Outer Bearing PLN-530055728
...
42
C'case Seal PLN-530071615
...
43
Inner Bearing PLN-530032125
...
44
Screw-Shd/Fan Hsg PLN-530015886
...
45
SCREW PLN-530016386
...
46
Rear Shroud PLN-530055517
...
47
FUEL TANK ASSY (Incl. 49,50 & fuel lines) PLN-545103802
...
48
Retainer PLN-530016379
...
49
Fuel Cap Assy. PLN-530014347
...
50
Fuel Pickup Assy PLN-530095646
...
51
Fuel Line (Small) PLN-530069247
...
52
Fuel Line (Large) PLN-530069216
...
53
Shield-Heat PLN-530055351
...
54
Screw-Heat Shield PLN-530015805
...
55
O-ring-C'case PLN-530071363
...
56
Crankshaft Ass'y. PLN-530012413
...
57
Assy-Crankcase (Incl. 41-43) PLN-530071627
...
58
C'case/C'shaft Assy. (Incl. 35,56,57) PLN-530071337
...
59
FLYWHEEL ASSY PLN-545221701
...
60
Washer-Flat PLN-530015828
...
61
Screw-Pulley PLN-530015775
...
62
Retainer-Pulley PLN-530053985
...
63
Kit-Starter Pulley (Incl. 32) PLN-530071324
...
64
KIT STARTER SPRING PLN-545008011
...
65
Assy.-Fan Hsg. PLN-530055510
...
66
SCREW PLN-530016386
...
67
Assy-Throttle Cable PLN-530055546
...
...
...
