Poulan TE450CXL LE Gas Trimmer Type 1

Model: TE450CXL LE Gas Trimmer Type 1

Back To Assemblies

Save Part Not Listed?
product name

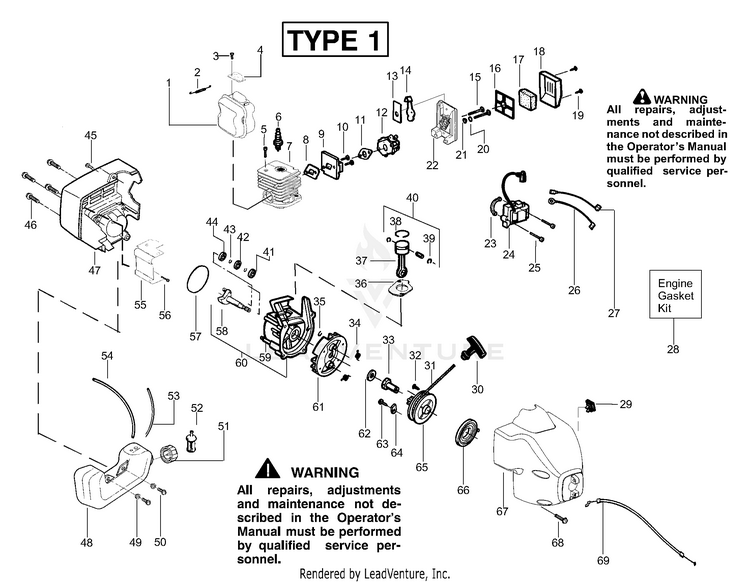

Engine Type 1

...
...
1
Kit-Muffler (Incl. 2,3,4) PLN-530071362
...
2
Muffler Spring PLN-530042088
...
3
Screw PLN-530015241
...
4
Screen-Spark Arrestor PLN-530071361
...
5
Screw-Cylinder PLN-530015953
...
6
BPMR7A NGK SPARK PLUG PLN-503235111
...
7
Cylinder PLN-530012416
...
8
Gasket-Cylinder/Carb. PLN-530071363
...
9
Carb. Adapter PLN-530055535
...
10
Screw-Carb Adptr. PLN-530016014
...
11
Gasket-Carb. PLN-530071363
...
12
Kit-Carb. Ass'y. (Incl. Limiter Cap) PLN-530071443
...
13
Choke Plate PLN-530038747
...
14
Choke Shutter PLN-530038686
...
15
Screw-Carburetor PLN-530016353
...
16
Filter Support Plate PLN-530036569
...
17
Air FIlter Foam PLN-530036575
...
18
Air Filter Cover PLN-530054414
...
19
Screw-Air Box PLN-530015892
...
20
Choke Spacer PLN-530015852
...
21
Washer PLN-530015254
...
22
Air Box PLN-530052431
...
23
Spacer-Ignit. Module PLN-530036145
...
24
Kit - Ignition Module PLN-545081826
...
25
Screw-Ignit. Module PLN-530015954
...
26
Ground Wire Ass'y. PLN-530054448
...
27
Lead Wire Ass'y. PLN-530054449
...
28
Kit-Engine Gasket (Incl. 8,11,36,57) PLN-530071363
...
29
Switch-Momentary PLN-530071356
...
30
Starter Handle PLN-530027569
...
31
Kit-Rope PLN-530071325
...
32
Screw PLN-530015882
...
33
Drive Coupling PLN-530027953
...
34
Spring Starter Dog PLN-530023817
...
35
Ret. Ring-C'case PLN-530015945
...
36
Gasket-Cylinder PLN-530071363
...
37
CONNECTING ROD ASSY PLN-530049817
...
38
RING PISTON PLN-545154001
...
39
Piston Pin Retainer PLN-530015162
...
40
Kit-Piston (Incls. 38,39 & Pin) PLN-530071833
...
41
Outer Bearing PLN-530032124
...
42
C'case Seal PLN-530019179
...
43
Ret. Ring/C'shaft PLN-530015941
...
44
Inner Bearing PLN-530032125
...
45
Screw-Shd/Fan Hsg PLN-530015934
...
46
SCREW PLN-530016386
...
47
Rear Shroud PLN-530055177
...
48
FUEL TANK ASSY (Incl. 51,52,fuel lines) PLN-545103802
...
49
Washer-fuel tank PLN-530016131
...
50
Screw-Fuel Tank PLN-530015886
...
51
Fuel Cap Assy. PLN-530014347
...
52
Fuel Pickup Assy PLN-530095646
...
53
Fuel Line (Small) PLN-530069247
...
54
Fuel Line (Large) PLN-530069216
...
55
Shield-Heat PLN-530055351
...
56
Screw-Heat Shield PLN-530015805
...
57
O-ring-C'case PLN-530071363
...
58
Crankshaft Ass'y. PLN-530012413
...
59
Crankcase Assy. (Incl. 41-44) PLN-530012462
...
60
C'case/C'shaft Assy. (Incl. 35,58,59) PLN-530071337
...
61
FLYWHEEL ASSY PLN-545221701
...
62
Washer-Flat PLN-530015828
...
63
Screw-Pulley PLN-530016224
...
64
Retainer-Pulley PLN-530053985
...
65
Kit-Starter Pulley (Incl. 32) PLN-530071324
...
66
KIT STARTER SPRING PLN-545008011
...
67
Assy.-Fan Hsg. PLN-530055510
...
68
SCREW PLN-530016386
...
69
Assy-Throttle Cable PLN-530055546
