Poulan S25AV Gas Saw

Model: S25AV Gas Saw

Save Part Not Listed?
product name

CARBURETOR CIQ-W2, & CIQ-W2A

...
...
1
Idle Low Mixture Screw PLN-530035272
...
2
High Mixture Screw PLN-530035273
...
3
Low/High Mixture Screw Spring PLN-530035274
...
4
Pump Cover Kit PLN-530069343
...
5
C1Q-W2 PLN-530035269
...
5
C1Q-W2A PLN-530035288
...
6
Gasket/Diaphragm Kit PLN-530035270

CARBURETOR WT-83 BREAKDOWN

...
...
1
Pump Cover Screw PLN-530035017
...
2
Fuel Pump Cover PLN-530035159
...
3
Spring-Idle Speed Adjusting Screw PLN-530035168
...
4
Idle Speed Adjusting Screw PLN-530035035
...
5
GASKET PLN-504130906
...
6
PUMP DIAPHRAGM PLN-504130807
...
7
Fuel Inlet Screen PLN-530035027
...
8
Throttle Retainer Ring PLN-530035007
...
9
Needle PLN-503117001
...
10
Metering Lever Spring PLN-530035188
...
11
Metering Lever PLN-505520127
...
12
Pin PLN-505520125
...
13
Screw-Metering Lever Pin PLN-530035016
...
14
Metering Diaphragm Gasket PLN-530035165
...
15
DIAPHRAGM PLN-503896701
...
16
Metering Diaphragm Cover PLN-530035003
...
17
Metering Cover Screw Ass'y. PLN-530035021
...
18
Gasket Diaphragm Kit PLN-530069844
...
19
Plug-5/16 Dia. Welch PLN-530035162
...
20
High Speed Mixture Needle Spring PLN-530035167
...
21
High Speed Mixture Needle PLN-530035169
...
22
Low Speed Mixture Needle PLN-530035171
...
23
Low Speed Mixture Needle Spring PLN-530035023
...
24
Throttle Shaft Ass'y. PLN-530035034
...
25
Throttle Valve Screw PLN-530035015
...
26
Throttle Valve PLN-530035006
...
27
Throttle Return Spring PLN-530035024
...
28
Carb. Repair Kit (Inc. 5-7,9-15,18,19) PLN-530035161
...
29
Gasket Diaphragm Kit PLN-530069844

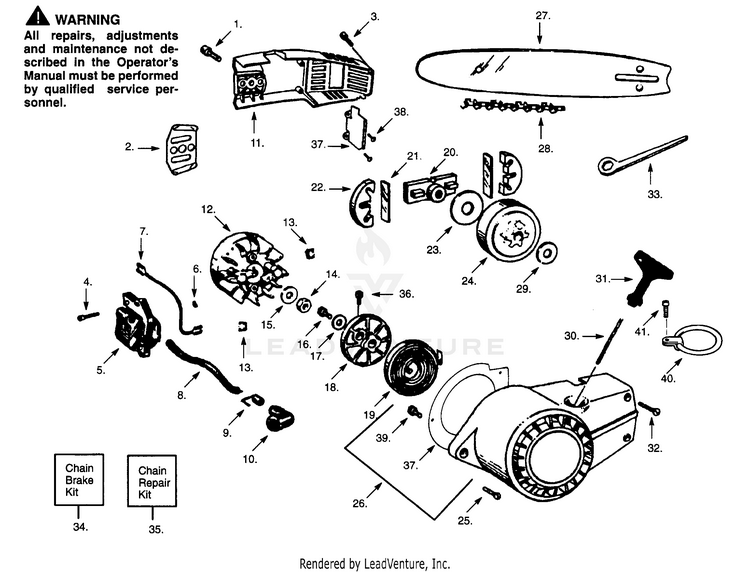

CHAIN & BAR, SHROUD

...
...
1
Screw PLN-530015819
...
2
Guide Plate PLN-530023864
...
3
Screw PLN-530015870
...
4
Screw PLN-530015816
...
5
Ignition Module (Incl. 7-10) PLN-530039141
...
6
Flywheel Key PLN-530015126
...
7
Lead Stop Switch PLN-530039168
...
8
High Tension Lead (Bulk No. 8141) PLN-530039026
...
9
Connector Spring Plug PLN-530039071
...
10
Spark Plug Boot PLN-530039097
...
11
Bar Clamp PLN-530029259
...
12
Flywheel Ass'y. PLN-530047198
...
13
Starter Dog Spring PLN-530023817
...
14
Nut PLN-530626605
...
15
Washer PLN-530015127
...
16
Screw PLN-530001724
...
17
Washer PLN-530015123
...
18
Starter Pulley PLN-530069289
...
19
SPRING-STARTER PLN-545008007
...
20
Clutch Spider PLN-530022079
...
21
Clutch Springs PLN-530023381
...
22
Clutch Shoes PLN-530023379
...
23
Clutch Plate PLN-530023382
...
24
Drum & Sprocket Ass'y. PLN-530069301
...
25
Screw PLN-530015074
...
26
Fan Housing (Incl. 39 & Baffle) PLN-530011243
...
27
Bar - 16" SN PLN-952044369
...
28
ACCY P/PP CHN 16" 56DL 3/8 PLN-581562201
...
29
Clutch Washer PLN-530023519
...
30
Rope Kit PLN-530069232
...
31
Handle-Starter PLN-530056402
...
32
Screw PLN-530015122
...
33
SCRENCH PLN-545006011
...
35
Chain Repair Kit PLN-530-052073
...
36
Screw PLN-530016080
...
37
Baffle PLN-530029260
...
38
Screw PLN-530015407
...
39
Screw PLN-530015241
...
40
Rope Ring Kit (Incl. 41) PLN-530069708
...
41
Screw PLN-530001711
...
xx
Operator Manual Not Shown. PLN-530068433
...
xx
Repl. Bar & Chain Decal (Not a serviceable part) Not Shown. PLN-530029750

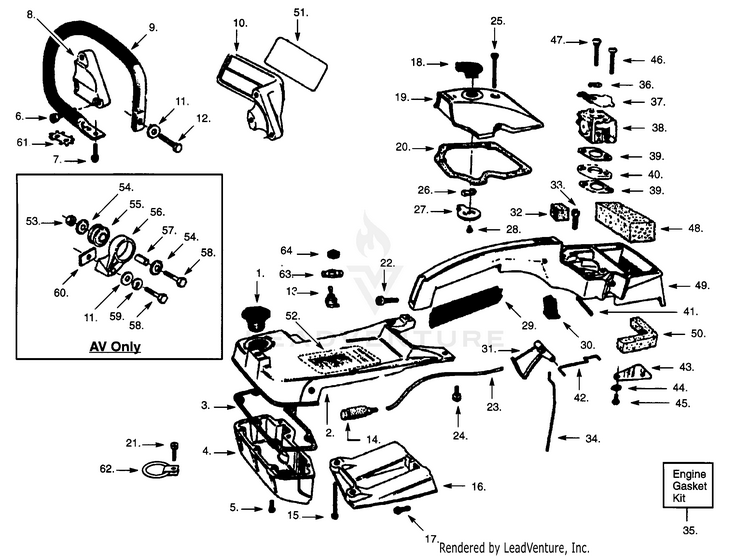

HANDLE & HOUSING

...
...
1
Fuel Cap Ass'y. PLN-530010123
...
2
Fuel Tank Top PLN-530012259
...
3
Fuel Tank Gasket PLN-530019047
...
4
Fuel Tank Bottom PLN-530012260
...
5
Screw PLN-530015138
...
6
Screw PLN-530015509
...
7
S25DA PLN-530015037
...
7
S25AV PLN-530015839
...
8
Handguard Cap PLN-530024049
...
9
S25DA PLN-530022358
...
9
S25AV PLN-530022315
...
10
Handguard PLN-530024091
...
11
Washer PLN-530015151
...
12
S25DA PLN-530001648
...
12
S25AV PLN-530015505
...
13
Start/Stop Switch PLN-530023573
...
14
Assy-Fuel Pickup PLN-530095646
...
15
Screw PLN-530015152
...
16
Cylinder Shield PLN-530012258
...
17
Screw PLN-530001709
...
18
Choke Knob PLN-530023376
...
19
Carburetor Cover PLN-530011558
...
20
Carb. Cover Gasket PLN-530019074
...
21
Screw PLN-530015239
...
22
Screw PLN-530015247
...
23
Line Kit (Bulk 8133) PLN-530069216
...
24
Screw PLN-530015476
...
25
Screw PLN-530015144
...
26
Wave Washer PLN-530015147
...
27
Choke Lever PLN-530023876
...
28
Screw PLN-530015407
...
29
Handle Grip PLN-530024111
...
30
Oil Pump Button PLN-530023362
...
31
Trigger PLN-530024672
...
32
Throttle Wire Boot PLN-530023373
...
33
Screw PLN-530001636
...
34
Oil Pump Push Rod PLN-530023361
...
35
Engine Gasket Kit (Inc. 3,20,32,39,50,55) PLN-530069023
...
36
Wave Washer PLN-530015146
...
37
Choke Shutter PLN-530023841
...
38
Carburetor PLN-530035258
...
39
Carb. Gasket PLN-530019045
...
40
Spacer PLN-530023872
...
41
Trigger Pin PLN-530015145
...
42
Throttle Rod PLN-530023372
...
43
Reed PLN-530023366
...
44
Washer PLN-530023367
...
45
Screw PLN-530015139
...
46
Screw PLN-530015257
...
47
Screw PLN-530015256
...
48
Air Filter PLN-530023369
...
49
Handle & Carb. Hsg. PLN-530011548
...
50
Dust Seal PLN-530023388
...
51
Handguard Decal PLN-530026849
...
52
Instruction Decal PLN-530027939
...
53
Nut PLN-530015515
...
54
Cup Washer PLN-530025567
...
55
Isolator PLN-530025566
...
56
Isolator Mtg. Bracket PLN-530028691
...
57
Spacer PLN-530025565
...
58
Screw PLN-530015505
...
59
Lockwasher PLN-530001642
...
60
Pad PLN-530024317
...
61
Retainer PLN-530028690
...
62
Rope Ring Ass'y. PLN-530036548
...
63
Plater PLN-530038387
...
64
Nut PLN-530024858

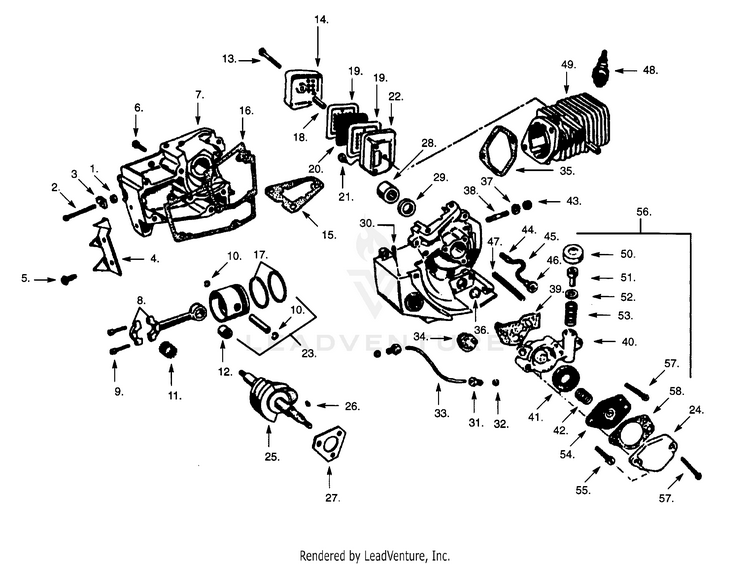

POWER UNIT

...
...
1
Nut PLN-530015135
...
2
Screw PLN-530016115
...
3
BAR ADJUST PIN PLN-530023492
...
4
Spur (Optional) PLN-530023387
...
5
Screw PLN-530015539
...
6
Screw PLN-530015986
...
7
Crankcase Ass'y. (Incl. 1,2,3,16,28-30,&38) PLN-530010223
...
8
Connecting Rod Ass'y. (Incl. 9 & 12) PLN-530022077
...
9
Screw PLN-530001713
...
10
Piston Pin Retainer PLN-530015131
...
11
Crankpin Rollers PLN-530032019
...
12
Piston Pin Bearing PLN-530032018
...
13
Screw PLN-530015189
...
14
Muffler Cover PLN-530029271
...
15
Gasket Included in Gasket Kit PLN-530019049
...
16
Crankcase Gasket Included in Gasket Kit PLN-530019044
...
17
Piston Rings PLN-530029391
...
18
Muffler Spacer PLN-530015657
...
19
Muffler Baffle PLN-530029283
...
20
Muffler Screen PLN-530023592
...
21
Screw PLN-530001709
...
22
Muffler Body PLN-530023604
...
23
Piston Ass'y. (Incl. 10) PLN-530069298
...
24
Oil Pump Cover PLN-530011163
...
25
Crankshaft PLN-530022173
...
26
Flywheel Key PLN-530015126
...
27
Crankcase Washer PLN-530023354
...
28
Bearing PLN-530032021
...
29
Seal Included in Gasket Kit PLN-530019051
...
30
Oil Vent Pin PLN-530069185
...
31
Discharge Line Fit ting PLN-530002615
...
32
Ferrule 1/8" Tubing PLN-530002464
...
33
Discharge Line-Oil Pump (Bulk 8115) PLN-530021013
...
34
Oil Cap (Incl. O Ring w/Retainer) PLN-530010221
...
35
Cylinder Gasket Included in Gasket Kit PLN-530019043
...
36
O-Ring PLN-530001952
...
37
Cylinder Washer PLN-530001642
...
38
Cylinder Studs PLN-530001674
...
39
Oil Pump Body Gasket Included in Gasket Kit PLN-530019054
...
40
Oil Pump Body PLN-530010178
...
41
Pump Body Filter Included in Gasket Kit PLN-530023698
...
42
Diaphragm Spring PLN-530023699
...
43
Nut PLN-530001660
...
44
Oil Pick-up Weight PLN-530002589
...
45
Oil Line (Bulk 8132) PLN-530021012
...
46
Oil Pump Intake Valve PLN-530023148
...
47
Oil Line Protector Spring PLN-530024677
...
48
BPMR7A NGK SPARK PLUG PLN-503235111
...
49
Cylinder PLN-530012264
...
50
Oil Pump Cap PLN-530023356
...
51
Oil Pump Plunger PLN-530023357
...
52
Quad Ring Plunger Included in Gasket Kit PLN-530019029
...
53
Oil Pump Spring PLN-530023358
...
54
Diaphragm Ass'y. PLN-530022124
...
55
Screw PLN-530015114
...
56
Pump Ass'y. PLN-530010177
...
57
Screw PLN-530015738
...
58
Pump Body Cover Gasket Included in Gasket Kit PLN-530019053
