Poulan RT900 - 96092002900 (2011-10) Cultivator

Model: RT900 - 96092002900 (2011-10)

Save
 Part Not Listed?Part Not Listed?
product name

DECALS

...
...
1
DECAL.B&S.900.A/S.C (279005) PLN-532432278
...
2
402751 PLN-532432225
...
5
DECAL TI PLN-532110614
...
6
DECAL.SHIFT.INDICATOR.TILLER PLN-532102180
...
7
DECAL.WARNING.SHLD.ENG/FR PLN-532422972
...
9
Decal, Warning, Rotating Tines (AYP part number) PLN-532120075
...
13
DECAL.B&S.900.TANK.REF.276991 PLN-532409143
...
xx
401434 PLN-TBD
...
xx
401435 PLN-TBD

HANDLE

...
...
2
GRIP.HANDLE.BLACK 9266R PLN-532165787
...
6
CONSOLE.BLK.RT.WO/THROTT.PPRO 180687 PLN-532446465
...
10
GRIP T PLN-532008206
...
11
RETAINER M PLN-532004497
...
12
SHOULDER BOLT ST PLN-532081328
...
13
HANDLE.SHIFT.TILLER PLN-532187497
...
14
GROMMET.RUBBER.CRT.TILLER PLN-532109313
...
15
SHIFT ROD CRT PLN-532109337
...
16
BOLT D PLN-872110608
...
17
LOCK.HANDLE.CRT PLN-532109229
...
18
LOCKNUT PLN-873680600
...
19
Washer 13/32 X 1 X 12 Ga (AYP part number) PLN-819131612
...
20
LEVER.LOCK.CRT PLN-532109228
...
21
180517X428 PLN-532193129
...
27
NUT.CROWNLOCK.1/4 PLN-873680400
...
31
BOLT.PIVOT PLN-532150696
...
42
SCREW.#10 X 0.750.BOS (2 2) PLN-532416358
...
100
CONTROL.ASSEMBLY.TINE.TILLER PLN-532193133
...
101
PIN, PIVOT PLN-532188555
...
102
RETAINER RING PLN-582730101

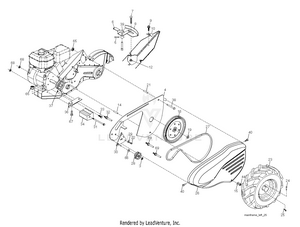

MAINFRAME LEFT SIDE

...
...
3
NUT.HEX.3/8-16UNC PLN-873220600
...
4
SHIELD.INNER.BELT.GUARD.RT PLN-532432420
...
5
PIN.SPIROL.FLARED PLN-532164329
...
6
LEVER ASM CRT PLN-532110111
...
7
BOLT PLN-872110404
...
8
PANEL.INDICATOR.SHIFT.BLACK PLN-532008700
...
9
Screw, Hex, Washer Hd., Slotted, Thd. Cutting #10-24 x 1/2 Type D (AYP part number) PLN-532086777
...
10
CONDUIT CLIP T PLN-532009484
...
12
NUT.CROWNLOCK.1/4 PLN-873680400
...
13
SET SCREW PLN-823230506
...
14
SPACER-SPLIT.327 X .42 PLN-532156117
...
15
WASHER - 15X7.3X1.6 PLN-734116301
...
16
SHEAVE, TRANSMISSION PLN-532145102
...
19
RETAINING RING LT PLN-812000028
...
21
SPACER CRT PLN-532110652
...
22
BOLT PLN-874770508
...
23
TIRE.CHV.13X5-6 PLN-532102190
...
xx
RIM.ASM.TILLER.6"BLACK 127259X PLN-532441809
...
xx
VALVE STEM LT PLN-532065139
...
24
RIVET,DRILLED PLN-532126875
...
25
RETAINER M PLN-532004497
...
26
GUARD.BELT.TILLER.YELLOW 165501X019 PLN-532167778
...
27
V-BELT PLN-532132801
...
28
PULLEY-IDLER TI PLN-532104679
...
29
KLIP RING PLN-812000032
...
30
BRACKET.IDLER.ASM.SHORT PLN-584289401
...
31
BOLT CRT PLN-532102194
...
32
SHIFT ARM CRT PLN-532102141
...
33
BOLT PLN-874780616
...
34
COUNTERWEIGHT, RH PLN-532102173
...
36
BRACKET.REINFORCEMENT.LH.PNT PLN-584366901
...
37
ENGINE PULLEY PLN-532130812
...
38
BOLT HEX PLN-874780544
...
39
CAP.PLUNGER.BLACK PLN-532140062
...
40
SCREW.HEX.WSH.SLT.#10-24X.50 PLN-532170488
...
44
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
65
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
66
WASHER PLN-734117201
...
67
CAPSCREW 5/16 X 1/1/2 HEX HEAD PLN-539976935
...
68
NUT ** PLN-873510600
...
69
KEEPER.BELT.ENGINE PLN-532164173

MAINFRAME RIGHT SIDE

...
...
2
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
5
BRACKET.REINFORCEMENT.RH.BLACK PLN-581864701
...
7
COUNTERWEIGHT, RH PLN-532102173
...
10
CAPSCREW 5/16 X 1/1/2 HEX HEAD PLN-539976935
...
11
RETAINER M PLN-532004497
...
12
RIVET,DRILLED PLN-532126875
...
13
TIRE.CHV.13X5-6 PLN-532102190
...
xx
RIM.ASM.TILLER.6"BLACK 127259X PLN-532441809
...
xx
VALVE STEM LT PLN-532065139
...
15
ENGINE BRIGGS MODEL NO 12T402-1613-F8 (446085) PLN-TBD
...
44
NUT ** PLN-873510600

TINE ASSEMBLY

...
...
1
TINE.LH.12" PLN-532006554
...
2
CLEVIS PIN PLN-532132673
...
3
TINE.LH.12" PLN-532006554
...
4
SPRING RETAINER PLN-532003146
...
5
HUB.&.PLATE.ASM.LH PLN-532132727
...
8
BOLT.HEX.001X20.37-24X1.ZINC PLN-874610616
...
9
TINE.RH.12"(72R) PLN-532006555
...
10
HUB.ASM.RH.17.TILLER.BLACK PLN-581813701
...
11
TINE.RH.12"(72R) PLN-532006555
...
34
NUT CROWNLOCK 3/8-24 PLN-873540600

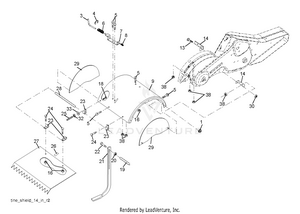

TINE SHIELD

...
...
1
NUT HEX,LOCK,FLAN PLN-583612701
...
3
STAKE PIN TI PLN-532008393
...
4
RING, KLIP PLN-812000035
...
5
BOLT, RDHD SQNK 5/16-18 X 3/4 PLN-532180847
...
6
SPRING TI PLN-532008394
...
7
LATCH BRACKET TI PLN-532008392
...
8
SPRING CRT PLN-532109230
...
9
PLN-532441841
...
13
BOLT.CARRIAGE.5/16-18 PLN-872110510
...
14
BRACKET.TINE.SHIELD.TILLER.BLA PLN-581813501
...
16
NUT.CROWNLOCK.1/4 PLN-873680400
...
18
BOLT PLN-872040410
...
19
GRIP CRT PLN-532102701
...
20
NUT.HEX.3/8-16UNC PLN-873220600
...
21
STAKE.DEPTH.16.CRT.BLACK PLN-532102156
...
22
BOLT.375-16 PLN-874930632
...
23
HINGE CRT PLN-532004440
...
24
BOLT PLN-872140404
...
25
VINYL CAP PLN-532006712
...
26
PAD IDLER TI PLN-532109227
...
27
SHIELD.TILLER.LEVELING.YELLOW PLN-532441813
...
28
PIN.HINGE.TILLER PLN-532120588
...
29
KIT.TILLER.SIDE.SHIELD 197761X428 PLN-585414301
...
30
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
32
NUT.HEX..25-20.UNC PLN-532050675
...
33
LOCKWASHER PLN-810040400
...
38
Nut, Hex, Keps 5/16-16 UNC (AYP part number) PLN-873510500

TRANSMISSION

...
...
1
TRANSMISSON.SERV.TILLER . 2-53 PLN-532181098
...
2
TRANSMISSON.SERV.TILLER . 4 PLN-532181098
...
3
GASKET.GEARCASE.CRT/DRT.TILLER PLN-532431022
...
4
NEEDLE BRNG LT PLN-532005020
...
5
THRUST WASHER PLN-532001370
...
6
PINION INPUT CRT TILLER PLN-586196301
...
7
SHAFT.INPUT."D"".TILLER PLN-532145101
...
8
BEARING PLN-532004895
...
9
WASHER, SEAL PLN-532154467
...
10
STEEL.BALL.KIT(12 BALLS) PLN-532100482
...
11
SPRING-SHIFT CRT PLN-532100371
...
12
O-RING TI PLN-532106160
...
13
SHIFTING ARM PLN-532142145
...
14
SHIFT FORK TI PLN-532008353
...
15
KLIP RING PLN-812000039
...
16
SHAFT.SHIFTER.TILLER PLN-532154466
...
18
WASHER PLN-532004358
...
19
KLIP RING PLN-812000040
...
20
GEAR ASSY CRT . 21 22 PLN-532102114
...
21
GEAR-REV IDLR CRT PLN-532102115
...
22
NEEDLE BEARING TI PLN-532006803
...
23
SHAFT CRT PLN-532102111
...
24
WASHER 7/16 LOCK PLN-539990247
...
25
NUT.ASF.HEX.7/16 PLN-873610700
...
27
BEARING.GROUND.DRIVE PLN-532431219
...
29
CHAIN CRT PLN-532102134
...
30
GROUND SHAFT ASS'Y PLN-532150737
...
31
BEARING, SHAFT RH CRT PLN-532143008
...
32
SPACER TI PLN-532106388
...
33
SPRCKT 8 GEAR CRT PLN-532102121
...
34
SHAFT.SECONDARY.REDUCTION.CRT PLN-532102112
...
35
SCRW WHIZ LOK CRT PLN-532102101
...
36
SPROCKET.ASM.W/BEARING.TILLER . 37 38 PLN-532154355
...
37
BEARING NEEDLE .875X.687 OE.50 PLN-585695502
...
38
SPROCKET.ASM.W/BEARING.TILLER PLN-532154355
...
39
GEAR TI PLN-532105345
...
40
GEAR TI PLN-532105346
...
41
SHAFT.REDUCTION.TILLER PLN-532008358
...
42
BRNG RACE T PLN-532004220
...
43
SPACER TI PLN-532106146
...
44
SEAL ASM, OIL PLN-532155236
...
48
TRANSMISSON.SERV.TILLER . 8 PLN-532181098
...
49
SHAFT.ASM.TINE PLN-532431485
...
50
CHAIN.TILLER PLN-532106147
...
51
SCREW PLN-817240408
...
52
NUT PLN-873220500
...
53
BEARING KIT PLN-532165140
...
58
BOLT SHOULDER 1/4-20 UNC X.875 PLN-532179520
...
60
FITTING.GREASE.TAPERED PLN-532183226
...
62
SPACER.1.015X1.50X.650 PLN-532431015
...
xx
GREASE, 14 OZ. CARTRIDGE PLN-585517301
...
...
...
