Poulan Pro SM4218AV Poulan Pro Gas Saw Type 2

Model: SM4218AV Poulan Pro Gas Saw Type 2

Back To Assemblies

Save Part Not Listed?
product name

Starter Type 1-2

...
...
1
Kit-Trigger/Lockout PLN-530071927
...
2
Cover-Handle PLN-545011903
...
3
Screw PLN-530016433
...
4
Fitting-Fuel line PLN-530023877
...
5
Kit-Fuel Line (Large) PLN-530069216
...
6
Kit-Fuel Line (Small) PLN-530069247
...
7
Assy-Fuel Pickup PLN-530095646
...
8
Handle-Rear PLN-545012103
...
9
Spring-Rear Isolator PLN-530059475
...
10
Kit-Clutch Washer PLN-530071945
...
11
Assy-Clutch Drum 3/8" PLN-530057905
...
12
Kit-Clutch Washer PLN-530071945
...
13
Assy-Clutch PLN-530057907
...
14
Washer-Large Clutch PLN-530016419
...
15
Screw PLN-530015906
...
16
FUEL CAP ASSY PLN-580940901
...
17
SCREW 6-19X.437 PLN-545227101
...
18
Nut-"U" type speed PLN-530015922
...
19
KIT MODULE & FLYWHEEL PLN-573992801
...
20
Shield-Heat PLN-530057911
...
21
Washer-Flywheel PLN-530015127
...
22
Nut-Flywheel PLN-530016134
...
23
Screw-Shoulder PLN-530021179
...
24
Starter Hub-EPS PLN-530059677
...
25
Spring-EPS PLN-530021180
...
26
Kit- EPS Starter Pulley (Incl. 23,24,25, 32) PLN-530071966
...
27
Housing-Fan PLN-545011703
...
28
Handle-Starter PLN-530056402
...
29
Kit-Rope PLN-530069232
...
30
Screw PLN-530016432
...
31
Kit-Starter Spring PLN-545008013
...
32
Screw PLN-530016080
...
33
Baffle PLN-530057868
...
34
Assy-Oil Vent PLN-530058786
...
35
Assy-Oil Cap w/ret. PLN-530057236
...
36
Handguard PLN-530057880
...
37
Spring-Handguard PLN-530016416
...
38
ASSY CHASSIS BLACK W/RET (Incl. 4,5,6,7,9,15,16,17,18, 20,34,35,37,41,51, ) PLN-545011813
...
39
Kit-Chainbrake PLN-530071893
...
40
Screw PLN-530016432
...
41
Bolt-Bar PLN-530016133
...
42
Plate-Bar PLN-530057910
...
43
Nut-Bar PLN-530015917
...
44
Assy-Clutch Cover PLN-545012203
...
45
P/PP CHN 18" 62DL 3/8 .050 PLN-581562301
...
46
Accy-18" Bar PLN-952044926
...
47
Screw PLN-530016432
...
48
Screw PLN-530016443
...
49
Assy-Rear Iso. Spring PLN-530059480
...
50
Screw PLN-530015906
...
51
Assy-Front Iso. Spring PLN-530059479
...
52
Handle-Front PLN-530057878
...
53
Screw PLN-530016432
...
54
Kit-Clutch Washer (Incl. 10,12) PLN-530071945
...
55
Assy-Oil Pick Up PLN-530057924
...
56
Kit-Oil Pump (Incl. 57,58,59) PLN-530071891
...
57
SCREW 6-19X.437 PLN-545227101
...
58
OIL PUMP ASSY SAS PLN-581071401
...
59
Gear-Worm PLN-530037820

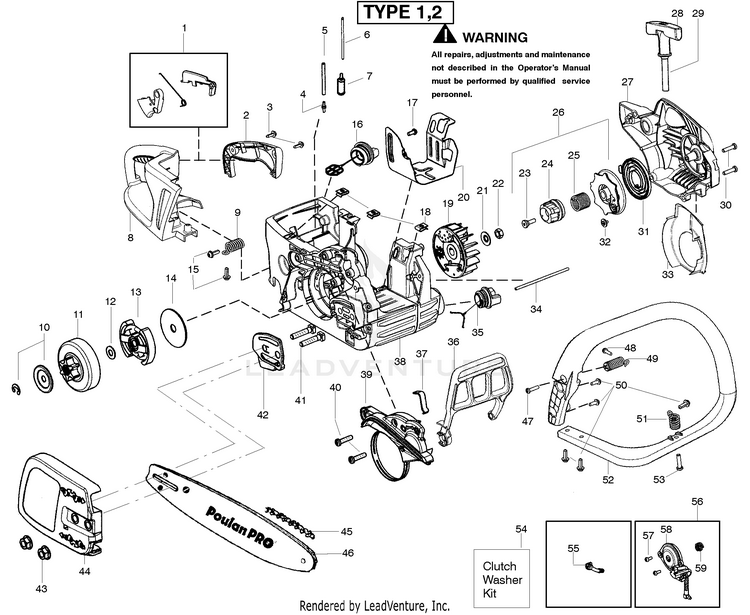

Schematic Image Zoomed
