product name

Poulan Pro SM400 Gas Blower Type 1

Model: SM400 Gas Blower Type 1

Save
Part Not Listed?Part Not Listed?

product name

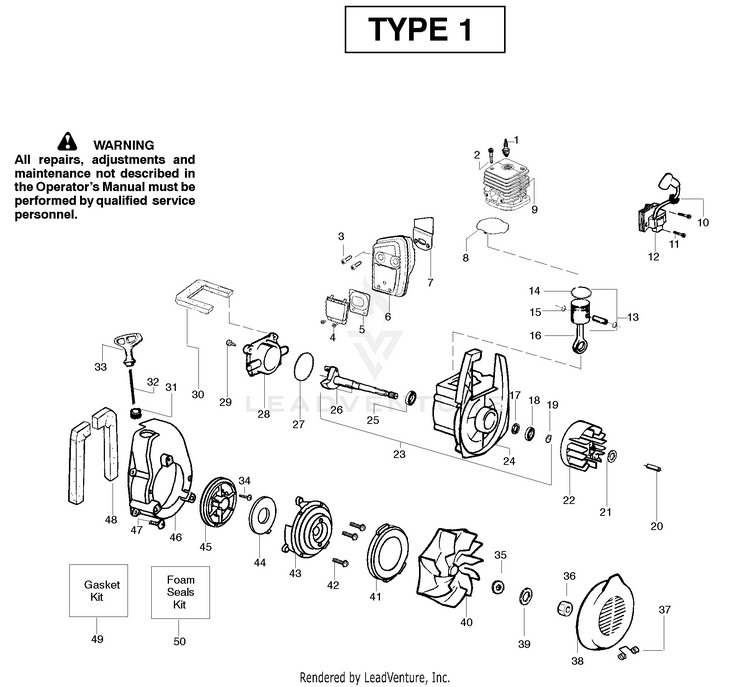

Engine Type 1

...
...
1
Spark Plug (RCJ-6Y) PLN-952030249


...
3
Screw-Muffler-Internal PLN-530016387


...
5
Kit-Spark Screen (incl. #4) PLN-530071593

...
6
MUFFLER KIT (incl. 3,4,5, & 7) PLN-530071592

...
7
Gasket-Baffle (kit) PLN-530071458

...
8
Gasket-Cylinder (kit) PLN-530071458

...
9

...
10
Grommet-Ign. Module PLN-530019182

...
11
Screw-Ignition Module PLN-530016357

...
12
Ignition Module PLN-530035505

...
13
Kit-Piston (Incl. 14 & 15) PLN-530071476

...
14
PISTON RING PLN-545154009

...
15
Retainer-Piston Pin PLN-530015162

...
16
CONNECTING ROD ASSY PLN-530049817

...
17
Seal-Crankcase PLN-530019264

...
18
Bearing-Outer PLN-530055728

...
19
Retainer Ring-C'chaft PLN-530015941

...
20
Spacer-Flywheel PLN-530016190

...
21

...
22
FLYWHEEL ASSY PLN-530047534

...
23
Assy-Crankcase/Crank shaft (incl. 19,24,26) PLN-530071456

...
24
Assy-Crankcase (Incl. 17,18,25) PLN-530012492

...
25
Bearing-Inner PLN-530032125

...
26
Assy-Crankshaft PLN-530012452

...
27
O-ring-C/case (kit) PLN-530071458

...
28
Cover-Crankcase PLN-530012443

...

...
30
Foam-219mm (kit) PLN-530071459

...
31
Eyelet-Flange PLN-530029182

...
32
Kit-Rope (Incl. 34) PLN-530071467

...
33
Handle-Starter PLN-530049488

...
34
Screw-Rope PLN-530016391

...
35
Washer-Belleville PLN-530016402


...
37
Spring-Return Cover PLN-530402043

...
38
Inlet Door PLN-530049313

...
39

...
40
Assy-Impeller PLN-530069817

...
41
Seal-Ring PLN-530056625

...

...
43
Housing-Pulley PLN-530055101

...
44
KIT STARTER SPRING PLN-545008011

...
45
PULLEY STARTER PLN-545150201

...
46
Fan Housing PLN-530055102

...

...
48
Foam-182mm (kit) PLN-530071459

...
49
Kit-Gasket (page 1 incl. 2 & 5 ) (page 4 incl. 7,8, & 27 ) PLN-530071458

...
50
Kit-Foam Seals (page 1 incl. 1,14,31) (page 4 incl. 30 & 48) PLN-530071459

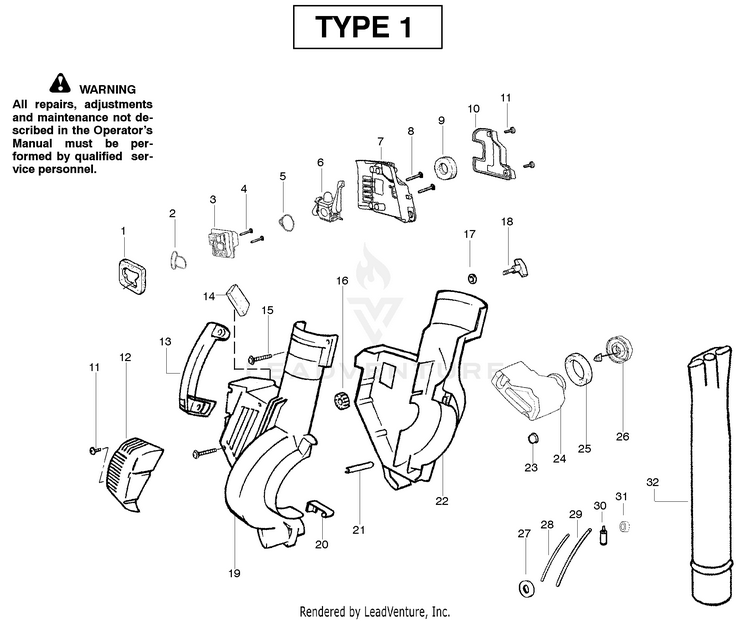

Housing Type 1

...
...
1
Air Dam (kit) PLN-530071459

...
2
Gasket-Adapter (kit) PLN-530071458

...
3
Carburetor Adaptor PLN-530035561


...
5
Gasket-Carburetor (kit) PLN-530071458

...
6
KIT CARB ASSY C1Q-W11 PLN-530071775

...
6
Kit-Carb Ass'y. (WT-606) PLN-530071775

...
7

...
8
Screw-Carb. PLN-530015849

...
9
Filter-Air PLN-530049383

...
10
Cover-Air Filter PLN-530056581

...

...
12
Guard-Muffler PLN-545085001

...
13

...
14
Foam 71.12mm (Kit) PLN-530071459

...

...
16


...
18
Knob-Blower PLN-530016322

...
19
Assy-Shroud RH PLN-545018204

...
20
Spring-Cover Latch PLN-530402044

...
21
Guide-Starter Rope PLN-530049617

...
22
Shroud - LH PLN-545018103

...
23
Isolator-Crankcase PLN-530036792

...
24
Assy-Fuel Tank PLN-545058007

...
25
Gasket-Fuel Tank PLN-530049527

...
26
Assy - Fuel Cap w/retainer PLN-530057973

...
27
Grommet-Shroud PLN-530049656

...
28
Kit-Line Carb/Purge PLN-530069247

...
29
Kit-Line Tank/Purge PLN-530069216

...
30
Assy-Fuel Pick-up PLN-530095646

...
31
Grommet-Fuel line (kit) PLN-530071459

...
32
Tube-Blower PLN-530095593

...
32
Operator Manual Not Shown PLN-530164583

...
32
Warning Decal Not Shown PLN-530057414

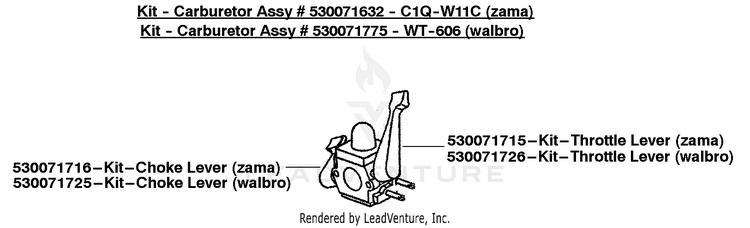

Kit - Carburetor Assy

...
...
530071632
KIT CARB ASSY C1Q-W11 PLN-530071775

...
530071775
KIT CARB ASSY C1Q-W11 PLN-530071775

...
530071716
KIT CHOKE ZAMA LB25 PLN-545081819

...
530071725

...
530071715
THROTTLE KIT ZAMA PLN-530071715

...
530071726

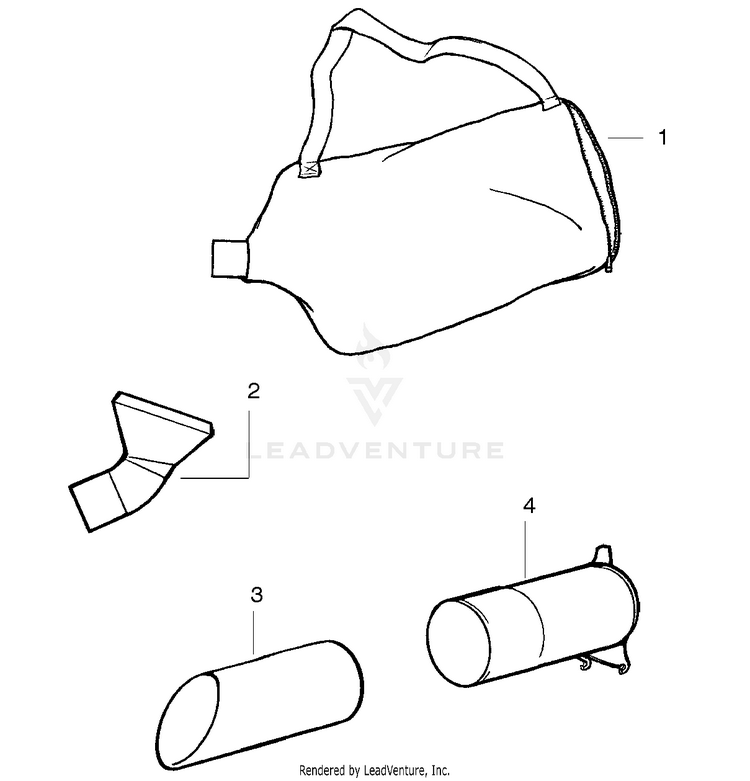

Tube - Vacuum Tube Assy.

...
...
1
Assy-Vac. Bag w/strap PLN-530095564

...
2
Tube-Elbow Vac PLN-530095470

...
3
Tube-Lower Vac PLN-530094476

...
4
Tube-Upper Vac PLN-530056901
...
...
...
