product name

Poulan Pro SM30SB Gas Trimmer

Model: SM30SB Gas Trimmer

Save
 Part Not Listed?Part Not Listed?
product name

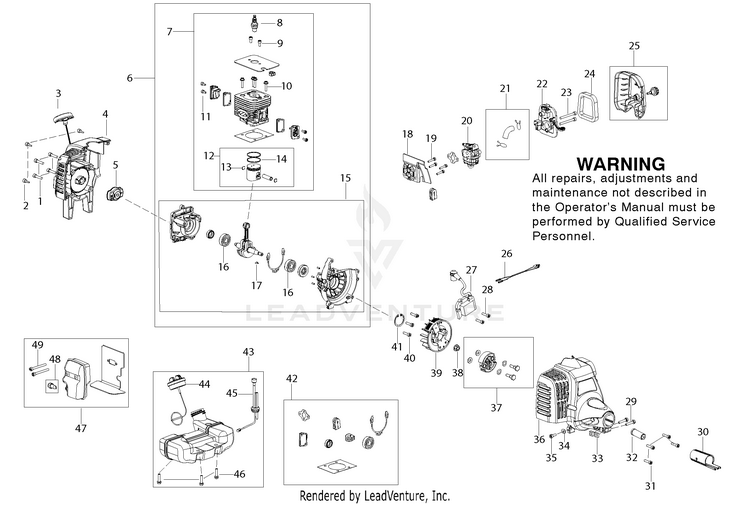

Engine

...
...
1
Screw (9sgk-05-12.5, 4-pack) PLN-575532001
...
2
Screw (6sdabb3.5-18) PLN-576028501
...
3
Kit - Rope/Handle PLN-576128601
...
4
KIT REAR SHROUD ASSY (Incl. 3) PLN-575720701
...
5
Assy. - Pawls (9228-md0107) PLN-574590001
...
6
Kit - Short Block Assembly (Incl. 7,15) PLN-575390601
...
7
Kit - Piston & Cylinder (Incl. 8,9,10,11,12) PLN-575803701
...
8
SPARK PLUG 9295-310801 PLN-574587001
...
9
Screw (9sgeb-05-10, 2-pack) PLN-575532501
...
10
Screw (9srcb-05-22,4-pack) PLN-575532401
...
11
Screw (9sgeb-04-10,4-pack) PLN-575532201
...
12
Kit - Piston & Ring (Incl. 13,14) PLN-575403201
...
13
Circlip (9131-334501) PLN-574588801
...
14
Ring - Piston (9189-334501) PLN-574588701
...
15
Kit - Crankcase & Crankshaft PLN-575803801
...
16
Bearing (9db-620101, 2-pack) PLN-575531601
...
17
Key (6221-830301) PLN-574589301
...
18
Adaptor - Carburetor PLN-576128001
...
19
Screw - Carb. Adaptor (9skkb05-19, 4-pack) PLN-575531801
...
20
Assembly - Carburetor PLN-576128801
...
21
Kit - Intake Tube PLN-575403301
...
22
Kit - Air Box Base Assembly PLN-575391001
...
23
Screw - Air Box PLN-576127901
...
24
Filter - Air (9183-334501) PLN-574590201
...
25
Kit - Air Box Cover Assembly (Incl. knob) PLN-575390901
...
26
Assy - Coil Wire (9010-332102) PLN-574589701
...
27
IGNITION MODULE PLN-575535201
...
28
Screw (9sgeb-05-20, 5-pack) PLN-574590501
...
29
Screw - Nose Clamp PLN-576128301
...
30
Insert - Fan Housing PLN-575349001
...
31
Screw - Fan Hsg to Crankcase PLN-576128401
...
32
Guide - Flexshaft PLN-575348901
...
33
Nut - Square (Nose Clamp) PLN-576128201
...
34
Washer - Lock PLN-530016285
...
35
Screw (9sdabb05-13) PLN-575962301
...
36
Kit - Fan Housing Assembly PLN-575390701
...
37
Kit - Clutch Assembly PLN-575391201
...
38
Nut - Flywheel (9nhc-08) PLN-574634601
...
39
FLYWHEEL PLN-575535101
...
40
Screw (9sgeb-05-20) PLN-574589601
...
41
C-Ring (9cb-32) PLN-574592201
...
42
Kit - Gasket PLN-575403101
...
43
Kit - Fuel Tank Assembly (Incl. 44,45,46) PLN-575803901
...
44
FUEL CAP ASSY PLN-574607701
...
45
Kit - Fuel Line Assembly PLN-575130601
...
46
Screw (9skkby05-18) PLN-574592501
...
47
Kit - Muffler Assembly (Incl. 48,49) PLN-575391101
...
48
MUFFLER ASSY PLN-575391101
...
49
Screw (9sxmbj05-50, 2-pack) PLN-575532301

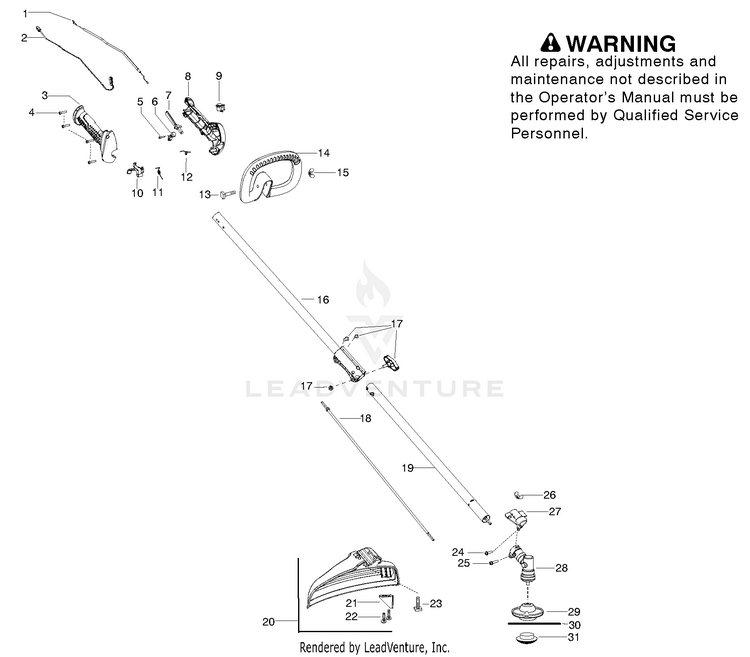

Shaft

...
...
1
Cable - Throttle (9010-gp0501) PLN-575724301
...
2
Assembly - Switch Wire (9010-332103) PLN-575724201
...
3
Housing - Throttle RH (9068-336202) PLN-575723401
...
4
Screw (6sdabb04-12) PLN-574631001
...
5
Screw - Lockout Arm PLN-576146601
...
6
Arm - Lockout PLN-576146701
...
7
Lockout (9176-336202) PLN-575723801
...
8
Housing - Throttle LH (9068-336201) PLN-575724001
...
9
Switch (9022-330522) PLN-574675401
...
10
Trigger (9028-336201) PLN-575723101
...
11
Spring - Trigger (9024-336203) PLN-575723601
...
12
Spring - Lockout (9024-336202) PLN-575723901
...
13
Bolt PLN-530015786
...
14
Assembly - Assist Handle (Incl. 13,15) PLN-530058583
...
15
Nut PLN-530091373
...
16
KIT (Incl. 17) PLN-579214401
...
17
ASSY COUPLER BLACK PLN-545213801
...
18
Flexshaft PLN-545132002
...
19
Kit - Lower Driveshaft (Incl. 18,24,25,27,28) PLN-545003367
...
20
Kit - Shield (Incl. 21,22,23,26) PLN-545003325
...
21
Limiter - Line PLN-530052286
...
22
Screw PLN-530015814
...
23
Bolt PLN-530015820
...
24
Screw PLN-530015775
...
25
Screw PLN-530016014
...
26
Nut PLN-530091373
...
27
Bracket - Shield PLN-545150701
...
28
Gearbox PLN-530096099
...
29
Assembly - Fixed Line Head PLN-545053902
...
30
Accy. - Line PLN-952711635
...
31
Cap - Fixed Line PLN-545049501
...
31
Decal - Shaft Lower Warning Not Shown PLN-545209101
...
31
Decal - Upper Shaft Warning Not Shown PLN-545167716
...
...
...
