Poulan Pro S23 Arbor Pro Gas Chainsaw

Model: S23 Arbor Pro

Save
 Part Not Listed?Part Not Listed?
product name

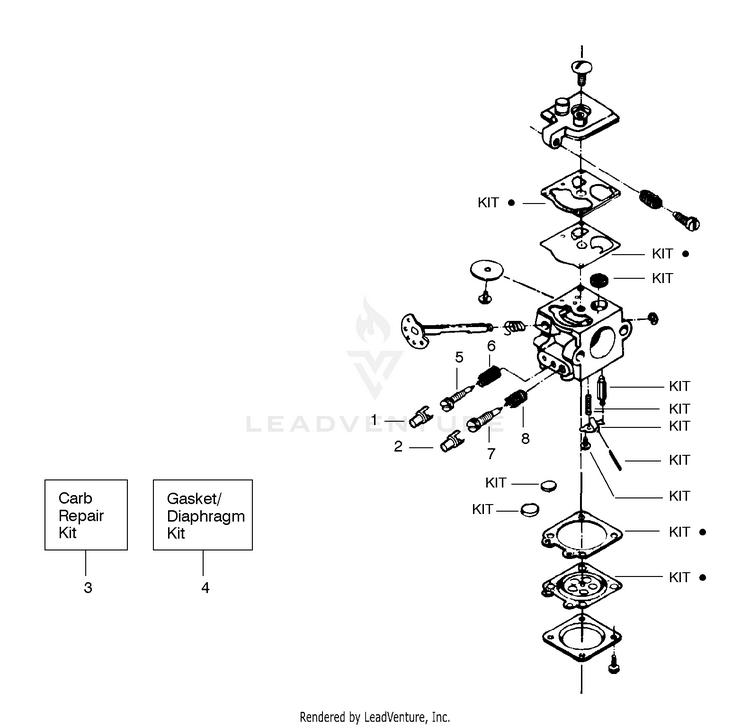

Carburetor Assembly - WT-309

...
...
1
Limiter Cap - High PLN-530038318
...
2
Limiter Cap - Low PLN-530038317
...
3
Carburetor Repair Kit (KIT=Indicates Content); (Incls. 1, 2 & 5 - 8) PLN-530069830
...
4
Gasket/Diaphragm Kit (DOT=Indicates Content) PLN-530069844
...
5
Needle - Low Speed PLN-530035383
...
6
Spring Needle - Low Speed PLN-530035293
...
7
Needle - High Speed PLN-530035169
...
8
Spring Needle - High Speed PLN-530035295

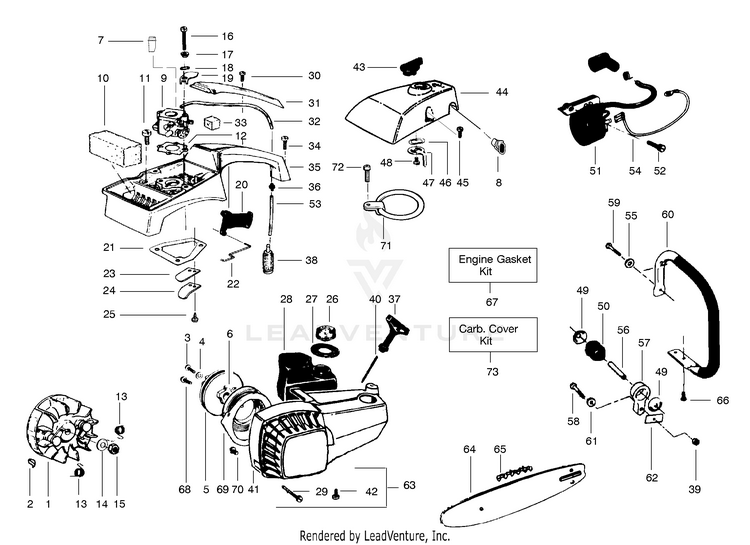

External Power Unit

...
...
1
Flywheel Ass'y. PLN-530047198
...
2
Flywheel Key PLN-530015126
...
3
Screw PLN-530016141
...
4
Washer PLN-530015123
...
5
Starter Pulley PLN-530069288
...
6
SPRING-STARTER PLN-545008007
...
7
Grommet-Idle PLN-530038646
...
8
Grommet-Mixture PLN-530038571
...
9
Carburetor Kit w/Limiter Caps PLN-530069772
...
10
Air Filter PLN-530023791
...
11
Screw PLN-530015242
...
12
Gasket PLN-530019045
...
13
Starter Dog Spring PLN-530023817
...
14
Flywheel Washer PLN-530015127
...
15
Nut PLN-530626605
...
16
Screw PLN-530015245
...
17
Spacer PLN-530023865
...
18
Washer PLN-530015254
...
19
Choke Shutter PLN-530023805
...
20
Throttle Trigger PLN-530029826
...
21
Gasket PLN-530019252
...
22
Throttle Wire PLN-530053549
...
23
Reed Valve PLN-530036331
...
24
Reed Stop PLN-530036332
...
25
SCREW 6-19X.437 PLN-545227101
...
26
Fuel Cap Ass'y. PLN-530014347
...
27
Seal-Fuel Tank PLN-530019093
...
28
Fuel Tank Ass'y. (Incl 26, 27 & 38) PLN-530010775
...
29
Screw PLN-530015812
...
30
Screw PLN-530015247
...
31
Handle Cover Ass'y. PLN-530052405
...
32
Line Kit PLN-530069216
...
33
Throttle Wire Boot PLN-530023373
...
34
Screw PLN-530015239
...
35
Carb. Handle Hsg. PLN-530052315
...
36
Fuel Line Fitting PLN-530023877
...
37
Handle-Starter PLN-530056402
...
38
Fuel Pick-up Ass'y. PLN-530095646
...
39
Locknut PLN-530015515
...
40
Rope Kit PLN-530069232
...
41
Fan Hsg. Kit PLN-530069602
...
42
Screw PLN-530015650
...
43
Choke Knob PLN-530023807
...
44
Carb. Cover PLN-530053599
...
45
Screw PLN-530015168
...
46
Wave Washer PLN-530015147
...
47
Choke Lever PLN-530023806
...
48
Screw PLN-530015407
...
49
Isolator Cup PLN-530025567
...
50
Isolator PLN-530025566
...
51
Ignition Module Kit PLN-530069202
...
52
Screw PLN-530015816
...
53
Fuel Line Kit PLN-530069216
...
54
Switch Lead PLN-530039116
...
55
Washer PLN-530015151
...
56
Spacer PLN-530025565
...
57
Bracket-Isolator PLN-530026659
...
58
Bolt PLN-530015505
...
59
Screw PLN-530001648
...
60
Handlebar Ass'y. PLN-530053732
...
61
Washer PLN-530015209
...
62
Isolation Pad PLN-530024317
...
63
Fan Hsg. Screw Kit PLN-530069286
...
64
BAR 14" .050 3/8 041 52DL PLN-952044368
...
65
ACCY CHN 14" 52DL 3/8 .050 PLN-581562101
...
66
Screw PLN-530015459
...
67
Engine Gasket Kit (Incl. from pg. 1:11,12,15,16,36; from pg.2:12,21,27 & 33) PLN-530069401
...
68
Rope Retaining Screw PLN-530016080
...
69
Air Baffle PLN-530038312
...
70
Screw PLN-530001726
...
71
Rope Ring Kit (Incl. 72) PLN-530069708
...
72
Screw PLN-530001711
...
73
Kit-Carb. Cover New part number for this IPL PLN-530071304

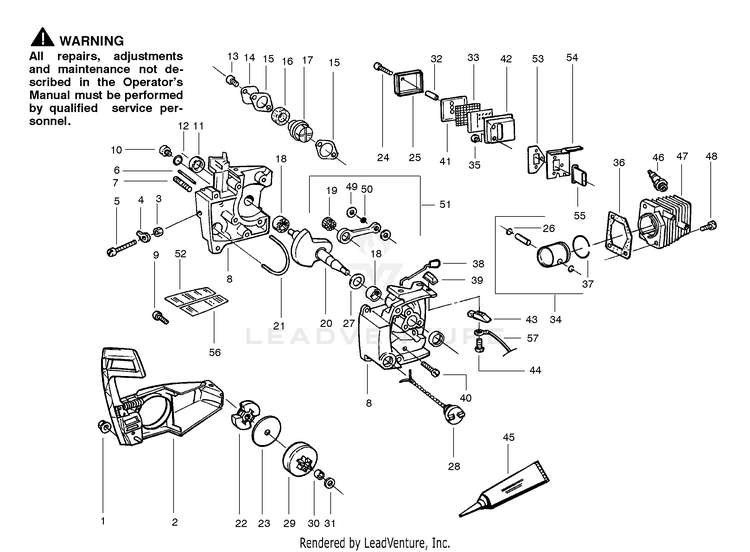

Internal Power Unit

...
...
1
Bar Mounting Nut PLN-530016282
...
2
Chain Brake Ass'y. PLN-952069320
...
3
Nut PLN-530403094
...
4
Bar Adjust Pin PLN-530023064
...
5
Screw PLN-530016256
...
6
Oil Tank Vent Pin PLN-530036450
...
7
Bar Mounting Stud PLN-530015719
...
8
Kit-Crankcase Ass'y. (Incl. 3-7, 10-12, 18, 28 & 40) PLN-530069967
...
9
Screw PLN-530015623
...
10
Check Valve Kit (Incl. 12) PLN-530069142
...
11
Crankshaft Seal PLN-530019059
...
12
Check Valve Gasket PLN-530019089
...
13
Screw PLN-530015476
...
14
Oil Pump Cover PLN-530023802
...
15
Oil Pump Gasket PLN-530019091
...
16
Oil Filter PLN-530023801
...
17
Oil Pump Body Ass'y. PLN-530010195
...
18
Crankshaft Bearing PLN-530032029
...
19
Roller Bearings (Incl. 12 bearings) PLN-530032065
...
20
Crankshaft PLN-530022172
...
21
Oil Discharge Line PLN-530069216
...
22
Clutch Ass'y. Kit PLN-530069193
...
23
Clutch Washer Kit PLN-530069197
...
24
Screw PLN-530015169
...
25
Muffler Cover PLN-530023795
...
26
Piston Pin Retainer PLN-530023843
...
27
Thrust Washer PLN-530023887
...
28
Oil Cap Ass'y. PLN-530010444
...
29
Clutch Drum & Brg. Kit PLN-530069166
...
30
Clutch Bearing PLN-530032079
...
31
Muffler Spacer PLN-530023519
...
32
Spacer PLN-530023535
...
33
Spark Arrestor Screen PLN-530023796
...
34
Piston Kit (Incl. 26, 37, & Pin) PLN-530069552
...
35
Screw PLN-530001666
...
36
Engine Gasket Kit PLN-530069401
...
37
Piston Ring PLN-530037603
...
38
Knob Switch PLN-530023788
...
39
Ramp Switch PLN-530023786
...
40
Screw PLN-530015986
...
41
Muffler Baffle PLN-530023797
...
42
Muffler Body PLN-530038325
...
43
Switch Clamp Insulator PLN-530053688
...
44
Screw PLN-530015235
...
45
Crankcase Sealant PLN-530030054
...
46
BPMR7A NGK SPARK PLUG PLN-503235111
...
47
Cylinder PLN-530012172
...
48
Screw PLN-530015239
...
49
Washer PLN-530015486
...
50
Bearing Rod Top PLN-530032075
...
51
Connecting Rod Ass'y. Kit (Incl. 19, 49 & 50) PLN-530010474
...
52
Kickback Decal PLN-530047952
...
53
Gasket-Muffler PLN-530019255
...
54
Muffler-Back Plate PLN-530038643
...
55
Port-Insulator PLN-530037652
...
56
On/Off Decal Warning PLN-530053689
...
57
Switch Lead Wire PLN-530039116
...
xx
Operator Manual Not shown PLN-530087483
...
xx
Bar Wrench Not shown PLN-530031163
...
...
...
