Poulan Pro PPRT5J Tiller

Model: PPRT5J Tiller

Save
Part Not Listed?Part Not Listed?
product name

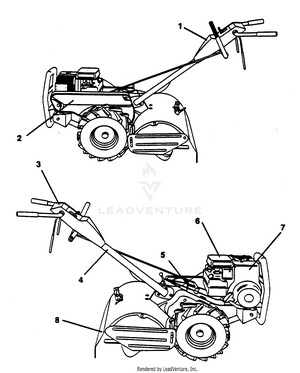

DECALS

...
...
1
Decal, Logo PLN-532138594

...
2
Decal, Logo PLN-532132328

...
3
Decal, Instruction, Tilling (AYP part number) PLN-532136942

...
4
Decal, Hand Placement (AYP part number) PLN-532110614

...
5
Decal, Shift Indicator (AYP part number) PLN-532104323

...
6
Decal, Caution (AYP part number) PLN-532110612

...
7
Decal, Briggs & Stratton (AYP part number) PLN-532271948

...
8
Decal, Warning, Rotating Tines (AYP part number) PLN-532120075

...
xx
Manual, Owner's (English) Not Shown. PLN-532144131

...
xx
Manual, Owner's (French) Not Shown. PLN-532144132

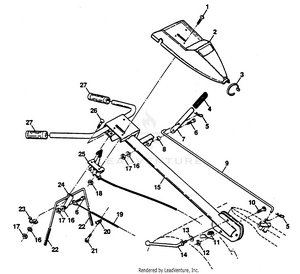

HANDLE ASSEMBLY

...
...
1
Screw, Phd. #10-24 (AYP part number) PLN-871191008

...
2
Panel, Control (AYP part number) PLN-532126951

...
3
Tie, Cable (AYP part number) PLN-532104164

...

...
5
RETAINER M PLN-532004497

...
6
Bolt, Shoulder (AYP part number) PLN-532081328

...
7
Handle, Shift (AYP part number) PLN-532109335

...
8
Grommet, Rubber (AYP part number) PLN-532109313

...
9
Rod, Shift (AYP part number) PLN-532109337

...
10
Bolt, Carriage 3/8-16 x 1 Gr. 5 (AYP part number) PLN-872110608

...
11
Lock, Handle (AYP part number) PLN-532109229

...
12

...
13
Washer 13/32 X 1 X 12 Ga (AYP part number) PLN-819131612

...
14
Lever, Lock, Handle (AYP part number) PLN-532109228

...
15
Handle (AYP part number) PLN-532125327

...
16
Washer, Lock 1/4 (AYP part number) PLN-810040400

...
17
NUT.HEX..25-20.UNC PLN-532050675


...
19
Cable, Clutch (AYP part number) PLN-532102162

...
20
Clip (AYP part number) PLN-532009484

...
21
Screw, Hex Washer Hd. Slotted #10-24 x 1/2 (AYP part number) PLN-532086777

...
22
Grip, Bar, Control (AYP part number) PLN-532102604

...
23
Clamp, Bar, Control (AYP part number) PLN-532102744

...
24
Bar Assembly, Control (AYP part number) PLN-532105216

...
25
CONTROL.THROTTLE PLN-532175769

...
26
Bolt, Carriage 1/4-20 UNC x 1/2 (AYP part number) PLN-872140404

...
27
Grip, Handle (AYP part number) PLN-532140528

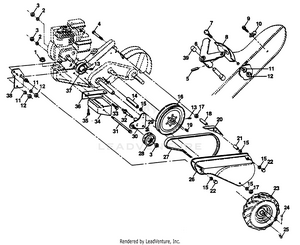

MAINFRAME, LEFT SIDE

...
...
1
Nut, Keps 5/16-18 (AYP part number) PLN-873510500

...
2
SLW 3/8 STD PLN-539990118

...
3
Nut, Hex 3/8-16 (AYP part number) PLN-873220600

...
4
Bolt, Hex 5/16-18 x 4-1/4 (AYP part number) PLN-874930568

...
5
Pin, Roll, 3/16 x 1 (AYP part number) PLN-532001572

...
6
Lever, Shift PLN-532110111

...
7
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 (AYP part number) PLN-872110404

...
8
Plate, Shift Indicator (AYP part number) PLN-532008700

...
9
Screw, Hex, Washer Head, Slotted #10-24 x 1/2 (AYP part number) PLN-532086777

...
10
Clip (AYP part number) PLN-532009484

...
11
Washer, Lock 1/4 (AYP part number) PLN-810040400

...
12
NUT.HEX..25-20.UNC PLN-532050675

...
13
Screw, Set, Hex 5/16-18 x 3/8 (AYP part number) PLN-823230506

...
14
Spacer, Split 0.327 x 0.42 x 2.68 (AYP part number) PLN-532120938

...
15
WASHER - 15X7.3X1.6 PLN-734116301

...
16
Sheave, Transmission (AYP part number) PLN-532100473

...
17
Nut, Hex 5/16-18 (AYP part number) PLN-873220500

...
18
Spacer, Split 0.327 x 0.42 x 1.75 (AYP part number) PLN-532110651

...
19
Key, Square 3/16 x 1-1/8 (AYP part number) PLN-532002649

...
20
Guard, Pinch Point (AYP part number) PLN-532110653

...
21
Spacer, Split 0.327 x 0.42 x 1.627 (AYP part number) PLN-532131691

...
22
Nut, Cap 5/16-18 (AYP part number) PLN-532104214

...
23
Tire (AYP part number) PLN-532005015

...
xx
Rim (AYP part number) PLN-532128952

...
xx
VALVE STEM LT PLN-532065139

...
24
Rivet, Drilled (AYP part number) PLN-532126875

...
25
RETAINER M PLN-532004497

...
26
Guard, Belt (AYP part number) PLN-532125341

...
27
Belt, V (AYP part number) PLN-532132801

...
28
Pulley, Idler (AYP part number) PLN-532104679

...
29
Ring, Klip (AYP part number) PLN-812000032

...
30
BRACKET.IDLER.ASM.SHORT PLN-584289401

...
31
Bolt, Hex 5/16-16 x 12 (AYP part number) PLN-532102384

...
32
Shaft, Idler Arm (AYP part number) PLN-532102141


...
34
Counterweight, L. H. (AYP part number) PLN-532102383

...
35
CAPSCREW 5/16 X 1/1/2 HEX HEAD PLN-539976935

...
36
BRACKET.REINFORCEMENT.LH.PNT PLN-584366901

...
37
Sheave, Engine (AYP part number) PLN-532130812

...
38
Bracket, Guard Belt PLN-532131556

...
39
Cap, Plunger Blk (AYP part number) PLN-532140062

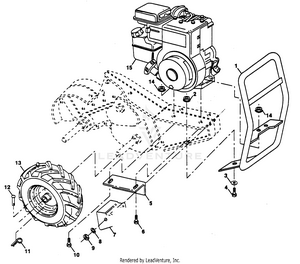

MAINFRAME, RIGHT SIDE

...
...
1
Bumper (AYP part number) PLN-532140271

...
2
NUT.71038.31-18.HEX.NYLOCK PLN-873800500

...
3
WASHER - 15X7.3X1.6 PLN-734116301

...
4
HCS 5/16C X 3/4 PLN-539976934

...
5
BRACKET.REINFORCEMENT.RH.BLACK PLN-581864701

...
6
Bolt, Hex 5/16-18 x 2 (AYP part number) PLN-874760532

...
7
Counter Weight, R.H. (AYP part number) PLN-532102173

...
8
SLW 3/8 STD PLN-539990118

...
9
Nut, Hex 3/8-16 (AYP part number) PLN-873220600

...
10
CAPSCREW 5/16 X 1/1/2 HEX HEAD PLN-539976935

...
11
RETAINER M PLN-532004497

...
12
Rivet, Drilled (AYP part number) PLN-532126875

...
13
Tire (AYP part number) PLN-532005015

...
xx
Rim (AYP part number) PLN-532128952

...
xx
VALVE STEM LT PLN-532065139

...
14
Nut, Keps 5/16-18 (AYP part number) PLN-873510500

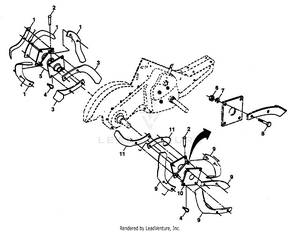

TINE ASSEMBLY

...
...
1
TINE.LH.12" PLN-532006554

...
2
Clevis Pin (AYP part number) PLN-532132673

...
3
Tine, Inner, L.H. (AYP part number) PLN-532006554

...
4
SPRING RETAINER PLN-532003146

...
5
Assembly, Hub and Plate, L.H. (AYP part number) PLN-532132727

...
6

...
7
SLW 3/8 STD PLN-539990118

...
8
Bolt, Hex 3/8-24 x 1 (AYP part number) PLN-874610616

...
9
TINE.RH.12"(72R) PLN-532006555

...
10
HUB.ASM.RH.17.TILLER.BLACK PLN-581813701

...
11
Tine, Inner, R.H. (AYP part number) PLN-532006555

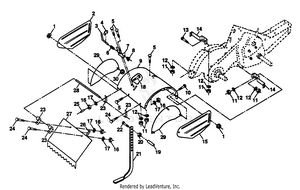

TINE SHIELD

...
...
1
Nut, Flange 5/16-18 (AYP part number) PLN-898000129

...
2
SHIELD.PNT.SIDE.OUTER.LH.ORANG PLN-532440452

...
3
Pin, Stake, Depth (AYP part number) PLN-532008393

...
4
Ring, Klip (AYP part number) PLN-812000036

...
5
BOLT 5/16C X 3/4" CARRIAGE PLN-539990316

...
6
Spring (AYP part number) PLN-532008394

...
7
Bracket, Latch (AYP part number) PLN-532008392

...
8
Spring, Depth Stake (AYP part number) PLN-532109230

...
9
Shield, Tine (AYP part number) PLN-532124736

...
10
Bolt, Carriage 5/16-18 UNC x 1 (AYP part number) PLN-872140508

...
11
Nut, Hex 5/16-18 (AYP part number) PLN-873220500

...
12
Washer, Lock 5/16 (AYP part number) PLN-810040500

...
13
Bolt, Carriage 5/16-18 x 1-1/4 (AYP part number) PLN-872110510

...
14
BRACKET.TINE.SHIELD.TILLER.BLA PLN-581813501

...
15
SHIELD.SIDE.OUTER.RH.BLACK PLN-532195795

...
16
NUT.HEX..25-20.UNC PLN-532050675

...
17
Washer, Lock 1/4 (AYP part number) PLN-810040400

...
18
Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5 (AYP part number) PLN-872040410

...
19
Grip (AYP part number) PLN-532102701

...
20
Nut, Hex 3/8-16 (AYP part number) PLN-873220600

...
21
STAKE.DEPTH.16.CRT.BLACK PLN-532102156

...
22
Bolt, Hex 3/8-16 x 2 (AYP part number) PLN-874930632

...
23
Hinge (AYP part number) PLN-532004440

...
24
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 (AYP part number) PLN-872140404

...
25
VINYL CAP PLN-532006712

...
26
Pad, Idler (AYP part number) PLN-532109227

...
27
Shield, Leveling (AYP part number) PLN-532124714

...
28
Pin, Hinge (AYP part number) PLN-532120588

...
29
Shield, Side (AYP part number) PLN-532124737

...
30
NUT.71038.31-18.HEX.NYLOCK PLN-873800500

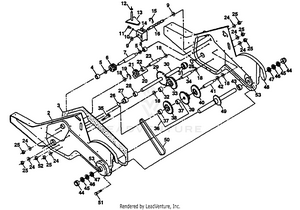

TRANSMISSION

...
...
1
Transmission Assembly (Includes Key Nos. 2-52) (AYP part number) PLN-532140537

...
2
Gearcase, L.H. w/Bearing (Inc. 4) (AYP part number) PLN-532121147

...
3
Gasket, Gearcase (AYP part number) PLN-532106211

...
4
Bearing, Needle (AYP part number) PLN-532005020

...
5
Washer, Thrust 5/8 x 1.10 x 1/32 (AYP part number) PLN-532001370

...
6
PINION INPUT CRT TILLER PLN-586196301

...
7
Shaft, Input (AYP part number) PLN-532102110

...
8

...
9
Washer, Seal (AYP part number) PLN-532102136

...
10
STEEL.BALL.KIT(12 BALLS) PLN-532100482

...
11
Spring, Shift, Fork (AYP part number) PLN-532100371

...
12
O-Ring (AYP part number) PLN-532106160

...
13
Arm, Shift PLN-532142145

...
14
Fork, Shift PLN-532008353

...
15
Ring, Klip (AYP part number) PLN-812000039

...
16
SHAFT.SHIFTER.TILLER PLN-532154466

...
18
Washer (AYP part number) PLN-532004358

...
19
Ring, Klip (AYP part number) PLN-812000040

...
20
Gear, Assembly, Reverse Idler (Includes Key Nos. 21 and 22) PLN-532102114

...
21
Gear, Reverse Idler (AYP part number) PLN-532102115

...
22
Bearing, Needle (AYP part number) PLN-532006803

...
23
Shaft, Reverse Idler (AYP part number) PLN-532102111

...
24
WASHER 7/16 LOCK PLN-539990247

...
25
Nut, Hex 7/16-20 (AYP part number) PLN-873610700

...
26
O-Ring (AYP part number) PLN-532102128

...
27
Bearing, Shaft, Ground Drive (AYP part number) PLN-532102100

...
28
Spacer 0.765 x 1.125 x 1.23 (AYP part number) PLN-532106390

...
29
Chain #35-50 Pitch (AYP part number) PLN-532102134

...
30
GROUND SHAFT ASS'Y PLN-532150737

...
31
BEARING, SHAFT RH CRT PLN-532143008

...
32
Spacer 0.70 x 1.00 x 1.150 (AYP part number) PLN-532106388

...
33
Sprocket and Gear Assembly (AYP part number) PLN-532102121

...
34
Shaft, Reduction (2nd) (AYP part number) PLN-532102112

...
35
Screw, Whiz, Lock 5/16-18 x 3-1/2 (AYP part number) PLN-532102101

...
36
Sprocket Assembly w/Bearing (Includes Key Nos. 37 and 38) (AYP part number) PLN-532137300

...
37
BEARING NEEDLE .875X.687 OE.50 PLN-585695502

...
38
Sprocket Assembly w/Bearing (Includes Key Nos. 37 and 38) (AYP part number) PLN-532137300

...
39
Gear, Cluster, Red 1st & 2nd (AYP part number) PLN-532105345

...
40
Gear, Reverse (AYP part number) PLN-532105346

...
41
Shaft, Reduction (1st) (AYP part number) PLN-532008358

...
42
Washer, Thrust (AYP part number) PLN-532004220

...
43
Spacer 1.01 x 1.75 x 0.760 PLN-532106146

...
44
SEAL ASM, OIL PLN-532155236

...
45
Ring, Spiral (AYP part number) PLN-532102144

...
46
Seal, Ring, Rubber (AYP part number) PLN-532140576

...
47


...
49
KIT.TINE.SHAFT.SERVICE PLN-532432058

...
50
Chain, Roller #50-50 Pitch (AYP part number) PLN-532106147

...
51
Screw 1/4-20 x 1/2 (AYP part number) PLN-817580408

...
52
Nut, Hex 5/16-18 (AYP part number) PLN-873220500

...
53
BEARING KIT PLN-532165140

...
xx
GREASE, 14 OZ. CARTRIDGE Not Shown. PLN-585517301
...
...
...
