Poulan Pro PPRT5B Tiller

Model: PPRT5B Tiller

Save
 Part Not Listed?Part Not Listed?
product name

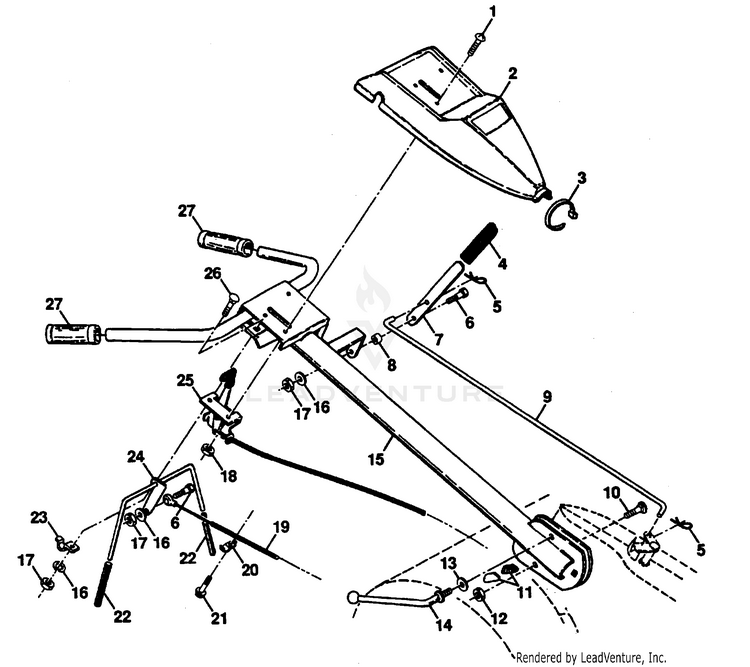

HANDLE ASSEMBLY

...
...
1
Screw, Truss Hd. #10-24 UNC x 1/2 (AYP part number) PLN-871091008
...
2
Panel, Control (AYP part number) PLN-532126951
...
3
Tie, Cable (AYP part number) PLN-532104164
...
4
GRIP T PLN-532008206
...
5
RETAINER M PLN-532004497
...
6
Bolt, Shoulder (AYP part number) PLN-532081328
...
7
Handle, Shift (AYP part number) PLN-532109335
...
8
Grommet, Rubber (AYP part number) PLN-532109313
...
9
Rod, Shift (AYP part number) PLN-532109337
...
10
Bolt, Carriage 3/8-16 x 1 Gr. 5 (AYP part number) PLN-872110608
...
11
Lock, Handle (AYP part number) PLN-532109229
...
12
LOCKNUT PLN-873680600
...
13
Washer 13/32 X 1 X 12 Ga (AYP part number) PLN-819131612
...
14
Lever, Lock, Handle (AYP part number) PLN-532109228
...
15
Handle (AYP part number) PLN-532125327
...
16
Washer, Lock 1/4 (AYP part number) PLN-810040400
...
17
NUT.HEX..25-20.UNC PLN-532050675
...
18
NUT PLN-873271000
...
19
Cable, Clutch (AYP part number) PLN-532102162
...
20
Clip (AYP part number) PLN-532009484
...
21
Screw, Hex Washer Hd. Slotted #10-24 x 1/2 (AYP part number) PLN-532086777
...
22
Grip, Bar, Control (AYP part number) PLN-532102604
...
23
Clamp, Bar, Control (AYP part number) PLN-532102744
...
24
Bar Assembly, Control (AYP part number) PLN-532105216
...
25
CONTROL.THROTTLE PLN-532175769
...
26
Bolt, Carriage 1/4-20 UNC x 1/2 (AYP part number) PLN-872140404
...
27
Grip, Handle (AYP part number) PLN-532009266
...
xx
Manual, Owner's Not Shown. PLN-532132327
...
xx
Decal, Instruction (AYP part number) Not Shown. PLN-532102721
...
xx
Decal, Control Panel Not Shown. PLN-532134242
...
xx
DECAL-PLACEMENT Not Shown. PLN-584449501

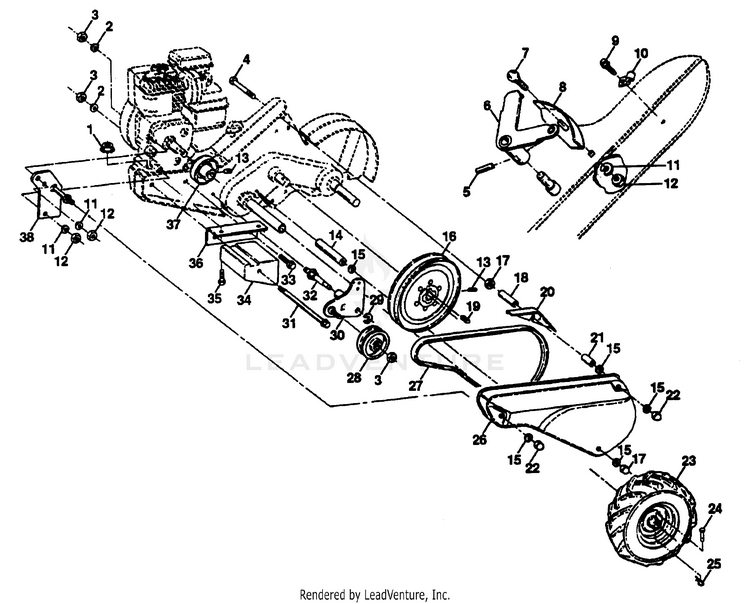

MAINFRAME, LEFT SIDE

...
...
1
Nut, Keps 5/16-18 (AYP part number) PLN-873510500
...
2
SLW 3/8 STD PLN-539990118
...
3
Nut, Hex 3/8-16 (AYP part number) PLN-873220600
...
4
Bolt, Hex 5/16-18 x 4-1/4 (AYP part number) PLN-874930568
...
5
Pin, Roll, 3/16 x 1 (AYP part number) PLN-532001572
...
6
Lever, Shift PLN-532110111
...
7
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 (AYP part number) PLN-872110404
...
8
Plate, Shift Indicator (AYP part number) PLN-532008700
...
9
Screw, Hex, Washer Head, Slotted #10-24 x 1/2 (AYP part number) PLN-532086777
...
10
Clip (AYP part number) PLN-532009484
...
11
Washer, Lock 1/4 (AYP part number) PLN-810040400
...
12
NUT.HEX..25-20.UNC PLN-532050675
...
13
Screw, Set, Hex 5/16-18 x 3/8 (AYP part number) PLN-823230506
...
14
Spacer, Split 0.327 x 0.42 x 2.68 (AYP part number) PLN-532120938
...
15
WASHER - 15X7.3X1.6 PLN-734116301
...
16
Sheave, Transmission (AYP part number) PLN-532100473
...
17
Nut, Hex 5/16-18 (AYP part number) PLN-873220500
...
18
Spacer, Split 0.327 x 0.42 x 1.75 (AYP part number) PLN-532110651
...
19
Key, Square 3/16 x 1-1/8 (AYP part number) PLN-532002649
...
20
Guard, Pinch Point (AYP part number) PLN-532110653
...
21
Spacer, Split 0.327 x 0.42 x 1.627 (AYP part number) PLN-532131691
...
22
Nut, Cap 5/16-18 (AYP part number) PLN-532104214
...
23
Tire (AYP part number) PLN-532102190
...
xx
Rim (AYP part number) PLN-532124258
...
xx
VALVE STEM LT PLN-532065139
...
24
Rivet, Drilled (AYP part number) PLN-532126875
...
25
RETAINER M PLN-532004497
...
26
Guard, Belt (AYP part number) PLN-532125341
...
27
Belt, V (AYP part number) PLN-532132672
...
28
Pulley, Idler (AYP part number) PLN-532104679
...
29
Ring, Klip (AYP part number) PLN-812000032
...
30
BRACKET.IDLER.ASM.SHORT PLN-584289401
...
31
Bolt, Hex 5/16-16 x 12 (AYP part number) PLN-532102384
...
32
Shaft, Idler Arm (AYP part number) PLN-532102141
...
33
BOLT PLN-874780616
...
34
Counterweight, L. H. (AYP part number) PLN-532102383
...
35
CAPSCREW 5/16 X 1/1/2 HEX HEAD PLN-539976935
...
36
BRACKET.REINFORCEMENT.LH.PNT PLN-584366901
...
37
Sheave, Engine (AYP part number) PLN-532130816
...
38
Bracket, Guard Belt (AYP part number) PLN-532131558
...
xx
Decal, Shift Indicator (AYP part number) Not Shown. PLN-532102180
...
xx
Decal, Logo (Belt Guard) Not Shown. PLN-532132328

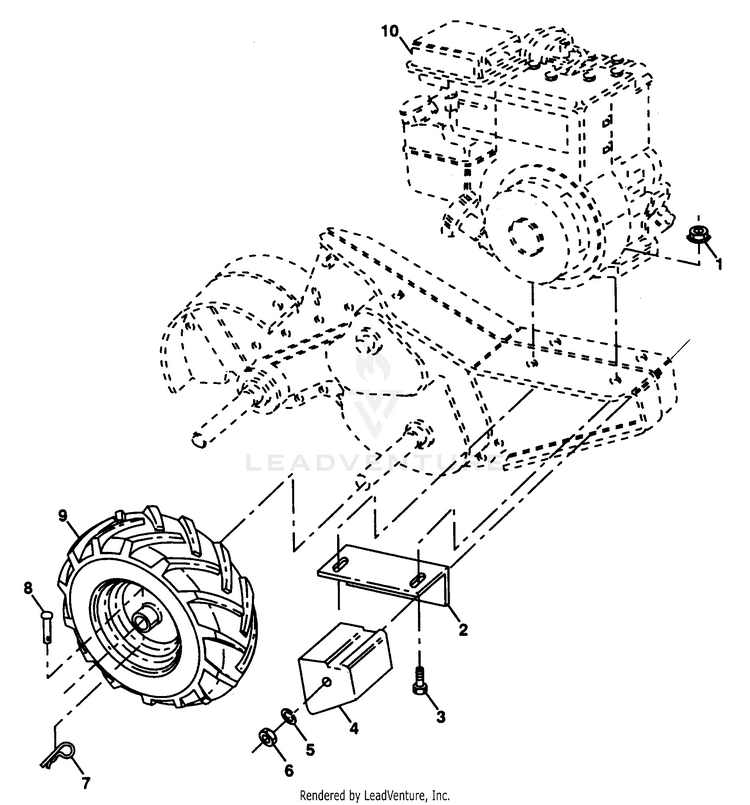

MAINFRAME, RIGHT SIDE

...
...
1
Nut, Keps 5/16-18 (AYP part number) PLN-873510500
...
2
BRACKET.REINFORCEMENT.RH.BLACK PLN-581864701
...
3
CAPSCREW 5/16 X 1/1/2 HEX HEAD PLN-539976935
...
4
Counter Weight, R.H. (AYP part number) PLN-532102173
...
5
SLW 3/8 STD PLN-539990118
...
6
Nut, Hex 3/8-16 (AYP part number) PLN-873220600
...
7
RETAINER M PLN-532004497
...
8
Rivet, Drilled (AYP part number) PLN-532126875
...
9
Tire (AYP part number) PLN-532102190
...
xx
Rim (AYP part number) PLN-532124258
...
xx
VALVE STEM LT PLN-532065139
...
10
Decal, Briggs & Stratton (AYP part number) Not Shown. PLN-532271948
...
10
Engine, Briggs & Stratton Model No. 130202, Decal, Caution (Top of Engine) (AYP part number) Not Shown. PLN-532110593

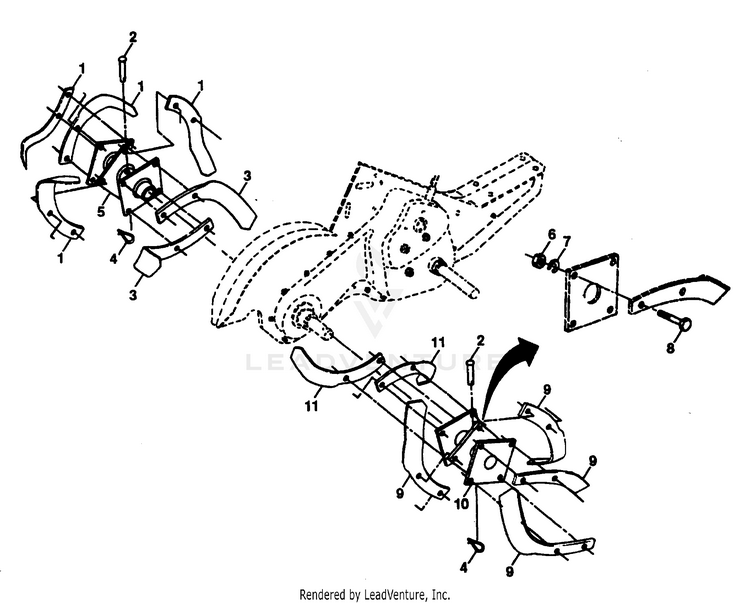

TINE ASSEMBLY

...
...
1
TINE.LH.12" PLN-532006554
...
2
Pin, Shear (AYP part number) PLN-532132673
...
3
Tine, Inner, L.H. (AYP part number) PLN-532006554
...
4
SPRING RETAINER PLN-532003146
...
5
Assembly, Hub and Plate, L.H. (AYP part number) PLN-532132727
...
6
LOCKNUT PLN-873680600
...
7
SLW 3/8 STD PLN-539990118
...
8
Bolt, Hex 3/8-24 x 1 (AYP part number) PLN-874610616
...
9
TINE.RH.12"(72R) PLN-532006555
...
10
HUB.ASM.RH.17.TILLER.BLACK PLN-581813701
...
11
Tine, Inner, R.H. (AYP part number) PLN-532006555

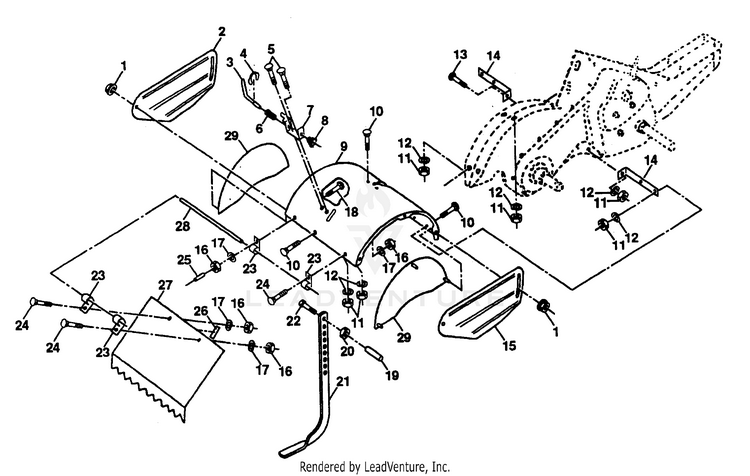

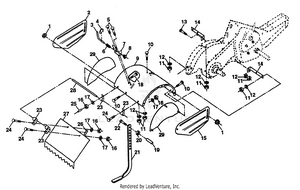

TINE SHIELD

...
...
1
Nut, Flange 5/16-18 (AYP part number) PLN-898000129
...
2
Shield, Side, Outer L. H. (AYP part number) PLN-532125001
...
3
Pin, Stake, Depth (AYP part number) PLN-532008393
...
4
Ring, Klip (AYP part number) PLN-812000036
...
5
Bolt, Carriage 5/16-18 x 1 (AYP part number) PLN-872110508
...
6
Spring (AYP part number) PLN-532008394
...
7
Bracket, Latch (AYP part number) PLN-532008392
...
8
Spring, Depth Stake (AYP part number) PLN-532109230
...
9
Shield, Tine (AYP part number) PLN-532124713
...
10
BOLT 5/16C X 3/4" CARRIAGE PLN-539990316
...
11
Nut, Hex 5/16-18 (AYP part number) PLN-873220500
...
12
Washer, Lock 5/16 (AYP part number) PLN-810040500
...
13
Bolt, Carriage 5/16-18 x 1-1/4 (AYP part number) PLN-872110510
...
14
BRACKET.TINE.SHIELD.BLACK PLN-584459301
...
15
Shield, Side, Outer R.H. (AYP part number) PLN-532125002
...
16
NUT.HEX..25-20.UNC PLN-532050675
...
17
Washer, Lock 1/4 (AYP part number) PLN-810040400
...
18
Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5 (AYP part number) PLN-872040410
...
19
Grip (AYP part number) PLN-532102701
...
20
Nut, Hex 3/8-16 (AYP part number) PLN-873220600
...
21
Stake, Depth (AYP part number) PLN-532102156
...
22
Bolt, Hex 3/8-16 x 2 (AYP part number) PLN-874930632
...
23
Hinge (AYP part number) PLN-532004440
...
24
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 (AYP part number) PLN-872140404
...
25
VINYL CAP PLN-532006712
...
26
Pad, Idler (AYP part number) PLN-532109227
...
27
Shield, Leveling (AYP part number) PLN-532124714
...
28
Pin, Hinge (AYP part number) PLN-532120588
...
29
Shield, Side (AYP part number) PLN-532124715
...
xx
Decal, Tine Shield (AYP part number) Not Shown. PLN-532124263
...
xx
Decal, Warning (Leveling Shield) (AYP part number) Not Shown. PLN-532120075

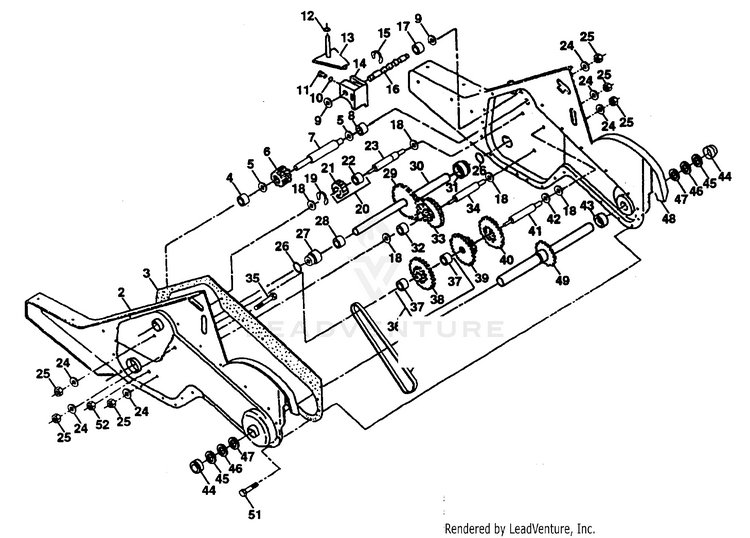

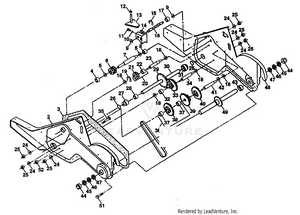

TRANSMISSION

...
...
1
Transmission Assembly (Includes Key Nos. 2-52) (AYP part number) PLN-532132718
...
2
Gearcase, L.H. w/Bearing (AYP part number) (Incl. 4) PLN-532121147
...
3
Gasket, Gearcase (AYP part number) PLN-532106211
...
4
Bearing, Needle (AYP part number) PLN-532005020
...
5
Washer, Thrust 5/8 x 1.10 x 1/32 (AYP part number) PLN-532001370
...
6
Pinion, Input (AYP part number) PLN-532102113
...
7
Shaft, Input (AYP part number) PLN-532102110
...
8
BEARING PLN-532004895
...
9
Washer, Seal (AYP part number) PLN-532102136
...
10
STEEL.BALL.KIT(12 BALLS) PLN-532100482
...
11
Spring, Shift, Fork (AYP part number) PLN-532100371
...
12
O-Ring (AYP part number) PLN-532106160
...
13
Arm,. Shift (AYP part number) PLN-532102107
...
14
Fork, Shift PLN-532008353
...
15
Ring, Klip (AYP part number) PLN-812000039
...
16
Shaft, Shift (AYP part number) PLN-532102109
...
17
Spacer, Split (AYP part number) PLN-532104159
...
18
Washer (AYP part number) PLN-532004358
...
19
Ring, Klip (AYP part number) PLN-812000040
...
20
Gear, Assembly, Reverse Idler (Includes Key Nos. 21 and 22) PLN-532102114
...
21
Gear, Reverse Idler (AYP part number) PLN-532102115
...
22
Bearing, Needle (AYP part number) PLN-532006803
...
23
Shaft, Reverse Idler (AYP part number) PLN-532102111
...
24
WASHER 7/16 LOCK PLN-539990247
...
25
Nut, Hex 7/16-20 (AYP part number) PLN-873610700
...
26
O-Ring (AYP part number) PLN-532102128
...
27
Bearing, Shaft, Ground Drive (AYP part number) PLN-532102100
...
28
Spacer 0.765 x 1.125 x 1.23 (AYP part number) PLN-532106390
...
29
Chain #35-50 Pitch (AYP part number) PLN-532102134
...
30
GROUND SHAFT ASS'Y PLN-532150737
...
31
BEARING, SHAFT RH CRT PLN-532143008
...
32
Spacer 0.70 x 1.00 x 1.150 (AYP part number) PLN-532106388
...
33
Sprocket and Gear Assembly (AYP part number) PLN-532102121
...
34
Shaft, Reduction (2nd) (AYP part number) PLN-532102112
...
35
Screw, Whiz, Lock 5/16-18 x 3-1/2 (AYP part number) PLN-532102101
...
36
Sprocket Assembly w/Bearing (Includes Key Nos. 37 and 38) (AYP part number) PLN-532137300
...
37
BEARING NEEDLE .875X.687 OE.50 PLN-585695502
...
38
Sprocket Assembly w/Bearing (Includes Key Nos. 37 and 38) (AYP part number) PLN-532137300
...
39
Gear, Cluster, Red 1st & 2nd (AYP part number) PLN-532105345
...
40
Gear, Reverse (AYP part number) PLN-532105346
...
41
Shaft, Reduction (1st) (AYP part number) PLN-532008358
...
42
Washer, Thrust (AYP part number) PLN-532004220
...
43
Spacer 1.01 x 1.75 x 0.760 PLN-532106146
...
44
SEAL ASM, OIL PLN-532155236
...
45
Ring, Spiral (AYP part number) PLN-532102144
...
46
Seal, Ring, Rubber (AYP part number) PLN-532009676
...
47
Seal, Oil (AYP part number) PLN-532009674
...
48
(Incl. 8) PLN-532150700
...
49
KIT.TINE.SHAFT.SERVICE PLN-532432058
...
50
Chain, Roller #50-50 Pitch (AYP part number) PLN-532106147
...
51
Screw 1/4-20 x 1/2 (AYP part number) PLN-817580408
...
52
Nut, Hex 5/16-18 (AYP part number) PLN-873220500
...
xx
GREASE, 14 OZ. CARTRIDGE Not Shown. PLN-585517301
...
...
...
