Poulan Pro PPFT5 Tiller

Model: PPFT5 Tiller

Save
 Part Not Listed?Part Not Listed?
product name

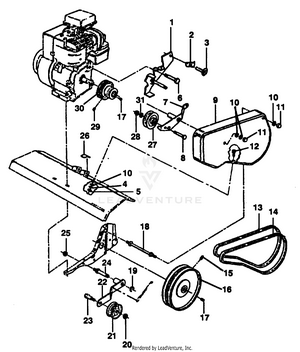

BELT GUARD AND PULLEY ASSEMBLY

...
...
1
Assembly, Bracket, Belt Guard (AYP part number) PLN-532123643
...
2
Clip, Cable (AYP part number) PLN-532009484
...
3
Screw, Hex, Washer Hd., Slotted, Thd. Cutting #10-24 x 1/2 Type D (AYP part number) PLN-532086777
...
4
Washer, Lock 1/4 (AYP part number) PLN-810040400
...
5
NUT.HEX..25-20.UNC PLN-532050675
...
6
Bolt, Hex 1/2-20 x 3/4 (AYP part number) PLN-874770812
...
7
Assembly, Arm, Reverse Idler (AYP part number) PLN-532106953
...
8
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) PLN-874930624
...
9
Guard, Belt (AYP part number) PLN-532124767
...
10
Washer 9/32 x 5/8 x 16 Ga. (AYP part number) PLN-819091016
...
11
NUT-CAP TI PLN-583644101
...
12
Bolt, Carriage 5/16-18 x 5/8 (AYP part number) PLN-872140405
...
13
BELT PLN-532133035
...
14
BELT.TILLER.DRIVE PLN-532446054
...
15
Screw, Set, Socket, Headless C.P. 5/16-18 x 3/8 (AYP part number) PLN-823230506
...
16
Sheave, Transmission (AYP part number) PLN-532002607
...
17
Key, Square (AYP part number) PLN-532002649
...
18
BOLT TI PLN-583660201
...
19
Ring, Klip (AYP part number) PLN-812000036
...
20
NUT.HEX.3/8-16UNC PLN-873220600
...
21
Pulley, Idler (AYP part number) PLN-532009178
...
22
Arm, Idler (AYP part number) PLN-532124688
...
23
Bolt, Hex 3/8-16 x 1-1/4 (AYP part number) PLN-874760620
...
24
Shaft, Idler Arm (AYP part number) PLN-532106968
...
25
NUT PLN-873220500
...
26
Pad, Idler (AYP part number) PLN-532109227
...
27
PULLEY W/SPACER PLN-583728401
...
28
Nut, Hex 3/8-16 (AYP part number) PLN-873220600
...
29
Screw, Set, Socket, Headless C.P. 1/4-20 x 1/4 (AYP part number) PLN-823200404
...
30
Sheave, Engine (AYP part number) PLN-532101189
...
31
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) PLN-819131316
...
xx
Decal, Belt Guard (Belt Guard) (AYP part number) Not Shown. PLN-532127346

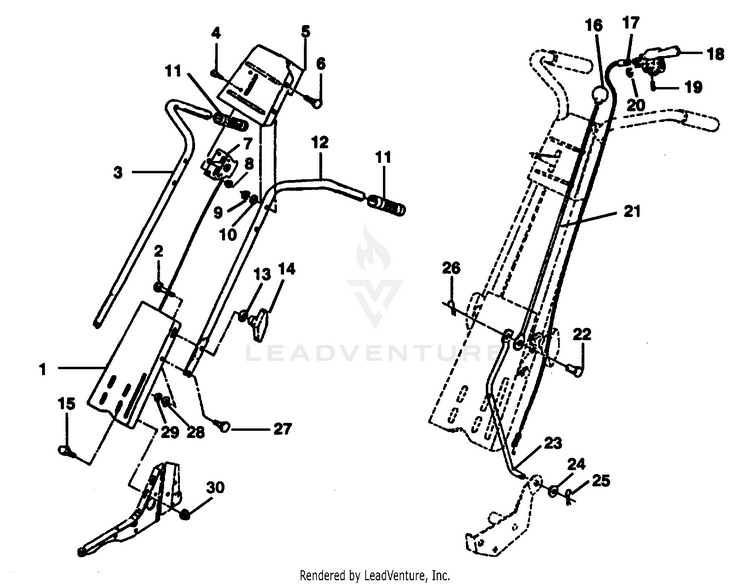

HANDLE ASSEMBLY

...
...
1
Panel, Handle (AYP part number) PLN-532124684
...
2
Bolt, Carriage 5/16-18 x 1-1/4 Gr. 5 (AYP part number) PLN-872110510
...
3
Handle, R.H. (AYP part number) PLN-532002624
...
4
Screw, Machine, Pan Hd. CR #10-24 UNC x 1/2 (AYP part number) PLN-871091008
...
5
Bracket, Handle (AYP part number) PLN-532125128
...
6
RHSNB 5/16-18 X 1-1/2 GR 5 ZD PLN-539102933
...
7
Control, Throttle (AYP part number) PLN-532127011
...
8
NUT PLN-873271000
...
9
NUT.71038.31-18.HEX.NYLOCK PLN-873800500
...
10
WASHER - 15X7.3X1.6 PLN-734116301
...
11
Grip, Handle (AYP part number) PLN-532009266
...
12
Handle, L.H. (AYP part number) PLN-532002623
...
13
WASHER PLN-734117201
...
14
KNOB.HANDLE.KIT.SERVICE PLN-532183724
...
15
BOLT 5/16C X 3/4" CARRIAGE PLN-539990316
...
16
KNOB T (3/8 HOLE) PLN-532106932
...
17
Cable, Control, Tine (AYP part number) PLN-532003066
...
18
Lever, Control, Tine (AYP part number) PLN-532002635
...
19
Screw, Set, Socket, Forged, Headless 1/4-20 x 5 (AYP part number) PLN-823200405
...
20
Ring, Klip (AYP part number) PLN-812000027
...
21
Rod, Reverse, Upper (AYP part number) PLN-532101248
...
22
Pin, Retaining (AYP part number) PLN-532001778
...
23
Rod, Reverse, Lower (AYP part number) PLN-532002613
...
24
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) PLN-819131316
...
25
Pin, Cotter 1/8 x 3/4 (AYP part number) PLN-876020412
...
26
Pin, Cotter 3/32 x 1/2 (AYP part number) PLN-876020308
...
27
Bolt, Shoulder 5/16-18 x 3/4 (AYP part number) PLN-532000471
...
28
Washer, Lock 5/16 (AYP part number) PLN-810040500
...
29
Nut, Hex 5/16-18 (AYP part number) PLN-873220500
...
30
Nut, Flanged 5/16-18 (AYP part number) PLN-898000129
...
xx
Decal, Throttle (Handle Bracket) (AYP part number) Not Shown. PLN-532121751
...
xx
Decal, Reverse (Handle Bracket) (AYP part number) Not Shown. PLN-532121753
...
xx
DECAL-PLACEMENT Not Shown. PLN-584449501
...
xx
Decal, Logo (Handle Bracket) (AYP part number) Not Shown. PLN-532127344
...
xx
Decal, HP (Handle Bracket) (AYP part number) Not Shown. PLN-532127345
...
xx
Manual, Operator's Not Shown. PLN-532127347

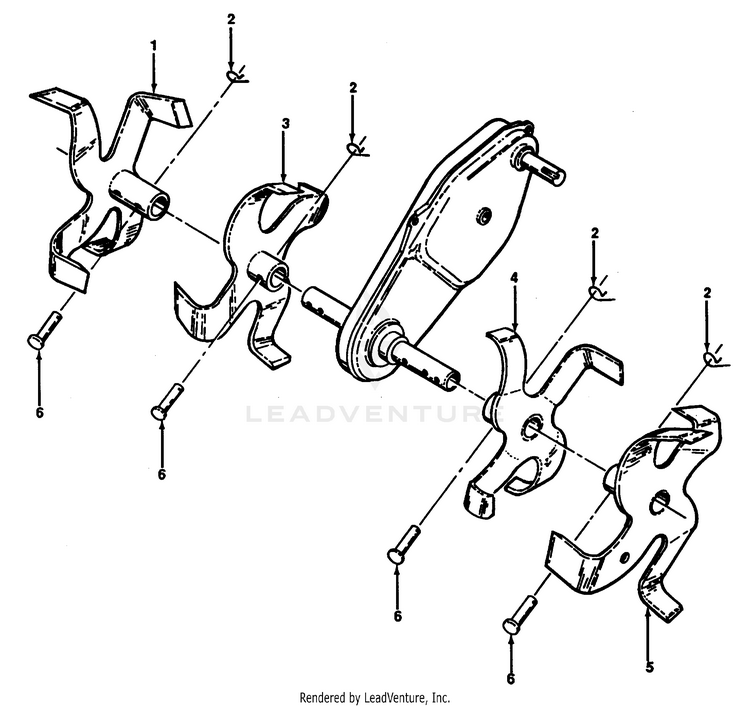

TINES

...
...
1
Tine, Outer, R.H. (AYP part number) PLN-532100746
...
2
SPRING RETAINER PLN-532003146
...
3
Tine, Inner, R.H. (AYP part number) PLN-532124690
...
4
Tine, Inner, L.H. (AYP part number) PLN-532124689
...
5
Tine, Outer, L.H. (AYP part number) PLN-532100744
...
6
Pin, Clevis PLN-532004929

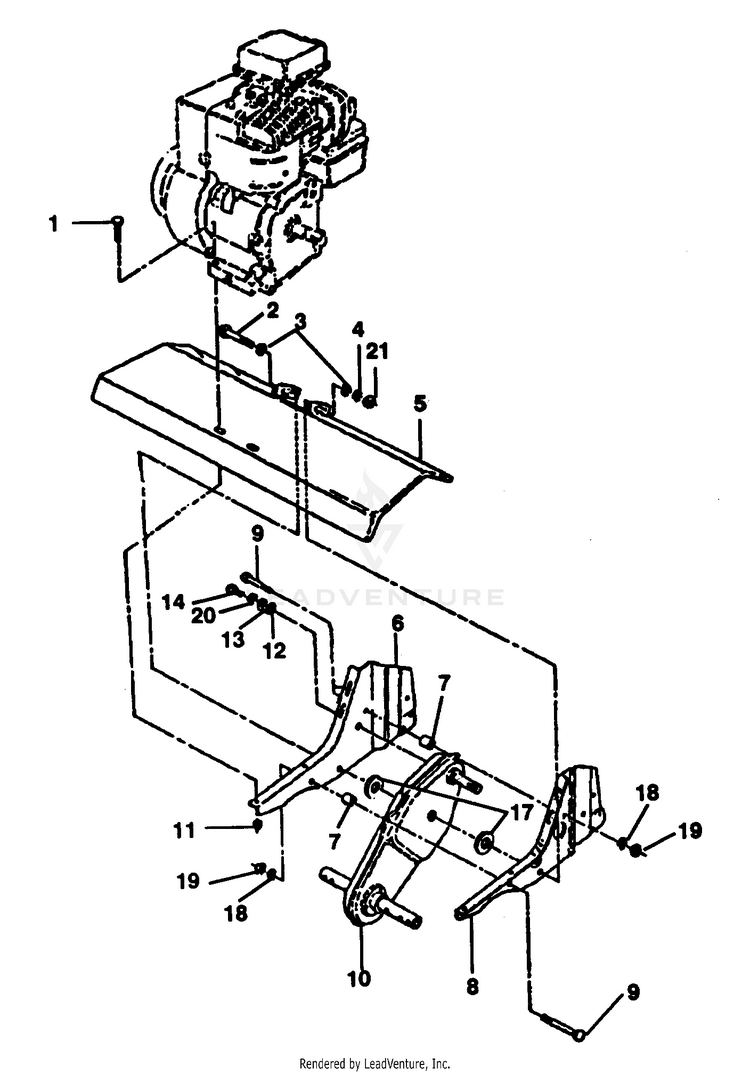

TRANSMISSION

...
...
1
CAPSCREW 5/16 X 1/1/2 HEX HEAD PLN-539976935
...
2
Bolt, Hex 3/8-24 x 3-1/4 Gr.5 (AYP part number) PLN-874610652
...
3
Washer 13/32 x 13/16 x 11 (AYP part number) PLN-819131311
...
4
SLW 3/8 STD PLN-539990118
...
5
Shield, Tine (AYP part number) PLN-532124706
...
6
Bracket, Engine, R.H. (AYP part number) PLN-532001949
...
7
Spacer, Split (AYP part number) PLN-532009178
...
8
Bracket, Engine, L.H. (AYP part number) PLN-532110519
...
9
BOLT HEX PLN-874780544
...
10
TRANSMISSION.ASM.W/1".SFT.TINE PLN-582800901
...
11
Nut, Keps 5/16 (AYP part number) PLN-873510500
...
12
WASHER PLN-819091416
...
13
Washer 9/32 x 1-1/4 x 16 Ga. (AYP part number) PLN-819092016
...
14
Bolt, Hex 1/4-28 x 3/4 Gr. 5 (AYP part number) PLN-874610412
...
17
Washer 17/32 x 1 x 16 Ga. (AYP part number) PLN-819171616
...
18
Washer, Lock 5/16 (AYP part number) PLN-810040500
...
19
Nut, Hex 5/16-18 (AYP part number) PLN-873220500
...
20
Lockwasher 1/4 (AYP part number) PLN-810040400
...
21
Locknut 3/8-24 (AYP part number) PLN-532124701
...
xx
Decal, Caution (Engine, Top) (AYP part number) Not Shown. PLN-532110593
...
xx
Decal, Warning (Tine Shield) (AYP part number) Not Shown. PLN-532120075
...
xx
Decal, Briggs & Stratton (AYP part number) Not Shown. PLN-532271948

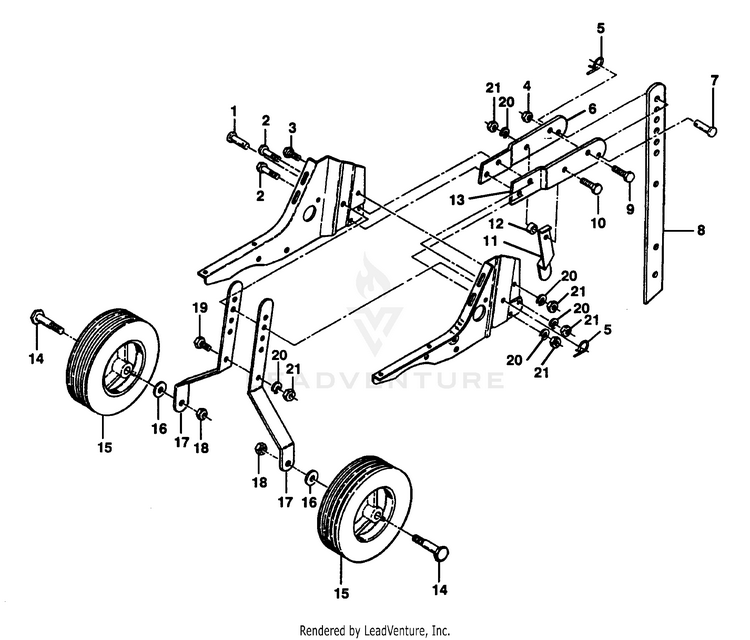

WHEEL AND DEPTH STAKE ASSEMBLY

...
...
1
PIN.CLEVIS.HD.25X1.75.TILLER PLN-532443676
...
2
BOLT.5/16-18X1-1/4 FULL THD PLN-874520520
...
3
HCS 5/16C X 3/4 PLN-539976934
...
4
Locknut 3/8-24 (AYP part number) PLN-532124701
...
5
Spring, Retainer (AYP part number) PLN-532004921
...
6
Support, Depth Stake, R.H. (AYP part number) PLN-532124659
...
7
RIVET TI PLN-532004929
...
8
STAKE.DEPTH.13.25.W/9HOLES PLN-532446066
...
9
Bolt, Hex 3/8-24 x 1-1/2 Gr.5 (AYP part number) PLN-874610624
...
10
CAPSCREW 5/16 X 1/1/2 HEX HEAD PLN-539976935
...
11
SPRING.STAKE PLN-532446063
...
12
Washer (AYP part number) PLN-532120958
...
13
Support, Depth Stake, L.H. (AYP part number) PLN-532001951
...
14
Bolt, Shoulder (AYP part number) PLN-532121117
...
15
Wheel (AYP part number) PLN-532009188
...
16
Washer 13/32 x 13/16 x 11 Ga. (AYP part number) PLN-819131311
...
17
Bracket, Wheel (AYP part number) PLN-532124707
...
18
Locknut, Crown 3/8-16 PLN-873680600
...
19
BOLT.FIN.HEX.5/16-18UNC X 1.00 PLN-874780516
...
20
Washer, Lock 5/16 (AYP part number) PLN-810040500
...
21
Nut, Hex 5/16-18 (AYP part number) PLN-873220500
...
...
...
