Poulan Pro PPFT35A Tiller

Model: PPFT35A Tiller

Save
Part Not Listed?Part Not Listed?
product name

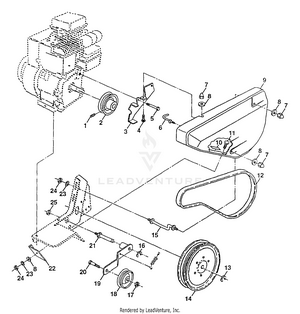

Belt Guard and Pulley Assembly

...
...
1
Screw, Set, Forged Socket, Headless 5/16-18 x 3/8 PLN-23230506

...
2
Pulley, Engine (AYP part number) PLN-130811

...
3
Bracket Assembly, Guard, Belt PLN-122955X

...
4
Bolt, Carriage 1/4-20 x 1/2 PLN-72140404

...
5
Bolt, Hex 1/2-20 x 3/4 PLN-74770812

...
6
Keeper, Belt, Transmission Pulley PLN-121463X

...
7
Nut, Cap 1/4-20 PLN-104213X

...
8
Washer 9/32 x 5/8 x 16 Ga. PLN-19091016

...
9
Guard, Belt PLN-131157X421

...
10
Pad, Idler PLN-109227X

...
11
Bolt, Carriage 1/4-20 x 3/4 PLN-72140406

...
12

...
13
Ring, Retainer (AYP part number) PLN-12000028

...
14
Pulley, Transmission PLN-151939

...
15
Bolt, Belt Guard PLN-532132213

...
16
Ring, Klip PLN-12000036

...
17
Nut, Hex, Jam 3/8-16 PLN-73350600

...
18
Pulley, Idler PLN-75673

...
19
Idler Arm Assembly PLN-674A30

...
20
Bolt, Hex 3/8-16 x 1-1/4 PLN-74760620

...
21
Shaft, Idler Arm (AYP part number) PLN-106968

...
22
Shield, Dirt PLN-105358X

...
23
Washer, Lock 1/4 PLN-10040400

...
24
Nut, Hex 1/4-20 PLN-73220400

...
25
Nut, Hex, Jam 5/16-18 PLN-73350500

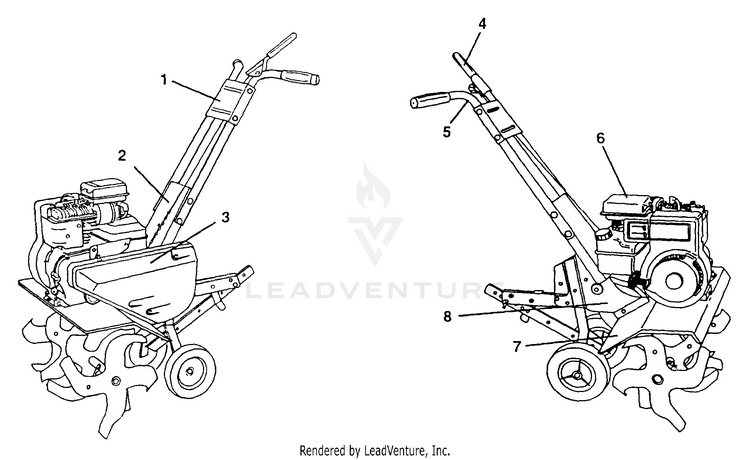

Decals

...
...
1
Decal, Logo PLN-532157855

...
2
Decal, HP PLN-532157856

...
3
Decal, Logo PLN-532157854

...
4
Decal, Tine Control (AYP part number) PLN-532110613

...
5
Decal, Hand Placement (AYP part number) PLN-532110614

...
6
Decal, Caution (AYP part number) PLN-110612

...
7
Decal, Warning, Rotating Tines (AYP part number) PLN-120076

...
8
Decal, Cust Assist PLN-150496

...
xx
Manual, Owner's (English) PLN-532157555

...
xx
Manual, Owner's (French) PLN-532157556

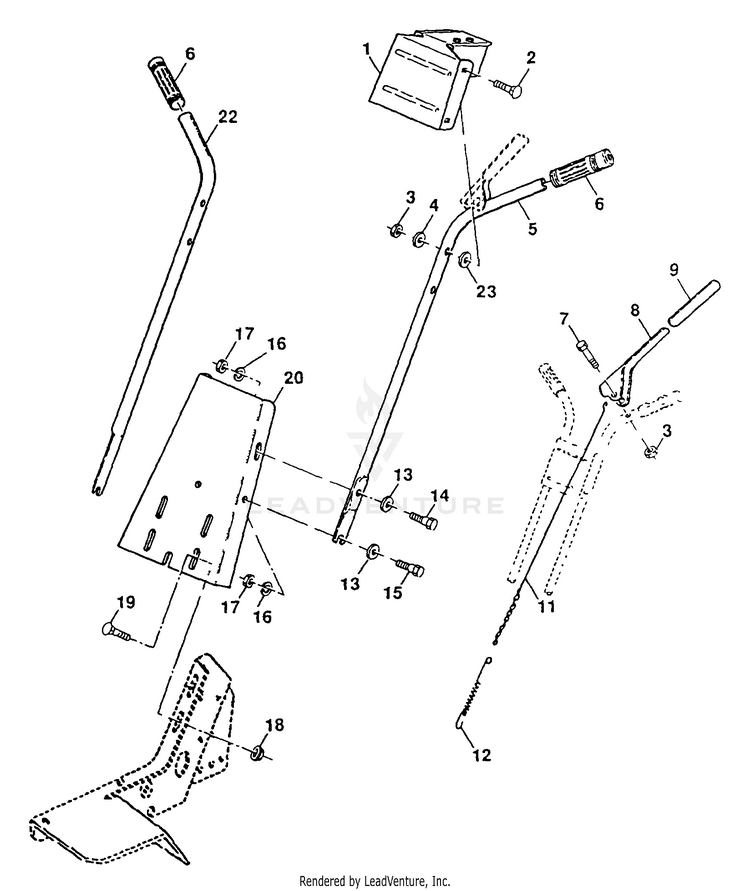

Handle Assembly

...
...
1
Bracket, Handle PLN-137176X421

...
2
Bolt, Carriage 5/16-18 UNC x 1-1/2 PLN-72140512

...
3
Locknut, Crown 5/16-18 PLN-73680500

...
4
Washer 11/32 x 11/16 x 16 Ga. PLN-19111116

...
5
Handle, L.H. PLN-151473

...
6
Grip, Handle PLN-624A78

...
7
Bolt, Hex 5/16-18 x 1-1/2 PLN-74760524

...
8
Lever, Control, Tine PLN-3069J

...
9
Grip, Lever PLN-8206H

...
11
Cable, Control, Tine PLN-100382K

...
12
Spring, Extension PLN-3070J

...
13
Washer 3/8 x 7/8 x 14 Ga. PLN-19121414

...
14
Bolt, Hex Hd 5/16-18 x 1 (AYP part number) PLN-74760516

...
15
Bolt, Hex Hd 5/16-18 x 3/4 PLN-74760512

...
16
Washer, Lock 5/16 PLN-10040500

...
17
Nut, Hex 5/16-18 PLN-73220500

...
18
Nut, Flanged 5/16-18 (AYP part number) PLN-98000129

...
19
Bolt, Carriage 5/16-18 x 3/4 Gr. 5 PLN-72140506

...
20
Panel, Handle PLN-9209R421

...
22
Handle, R.H. PLN-151474

...
23
Washer 13/32 x 13/16 x 12 Ga PLN-19131312

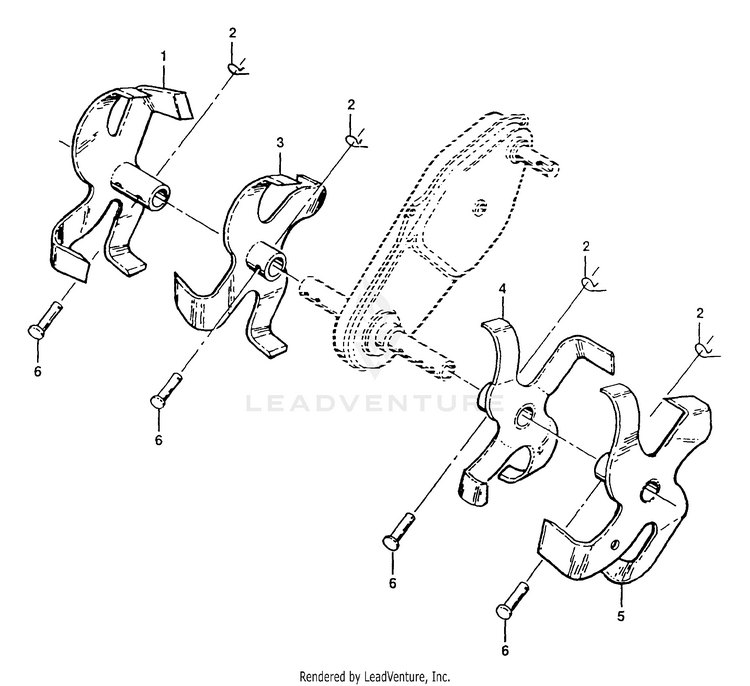

Tine Assembly

...
...
1
Tine, Outer, R.H. (AYP part number) PLN-106860X

...
2
Clip, Hairpin PLN-4921H

...
3
Tine, Inner, R.H. (AYP part number) PLN-106858X

...
4
Tine, Inner, L.H. (AYP part number) PLN-106857X

...
5
Tine, Outer, L.H. (AYP part number) PLN-106859X

...
6
Pin, Clevis PLN-9194R

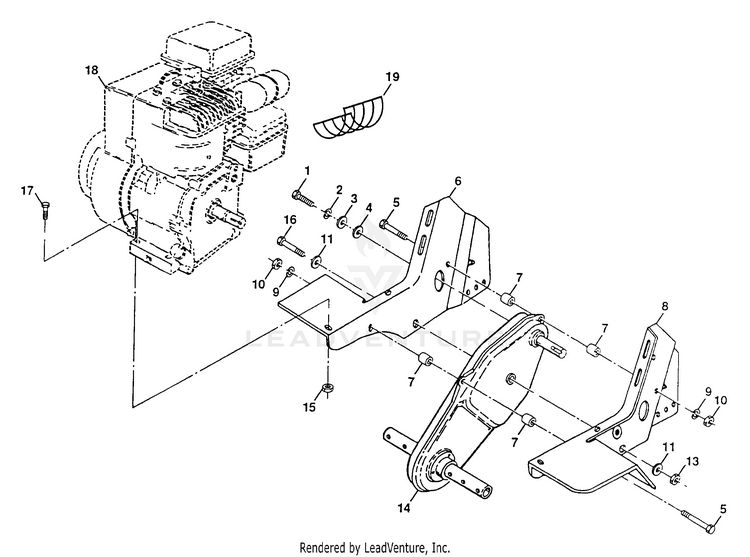

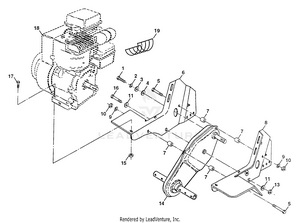

Transmission

...
...
1
Bolt, Hex 1/4-28 x 3/4 Gr. 5 PLN-74610412

...
2
Washer, Lock 1/4 PLN-10040400

...
3
Washer 9/32 x 1-1/4 x 16 Ga. PLN-19092016

...
4
Washer 9/32 x 7/8 x 12 Ga. PLN-19091412

...
5
Bolt, Hex 5/16-18 x 2-3/4 (AYP part number) PLN-74760544

...
6
Bracket, Engine, R.H. PLN-2606J421

...
7
Spacer, Split PLN-9173R

...
8
Bracket, Engine, L.H. PLN-132212X421

...
9
Washer, Lock 5/16 PLN-10040500

...
10
Nut, Hex 5/16-18 PLN-73220500

...
11
Washer 13/32 x 13/16 x 11 Ga. PLN-19131311

...
13
Locknut, w/Insert 3/8-16 PLN-73800600

...
14
Transmission PLN-151937

...
15
Nut, Keps 5/16-18 PLN-73510500

...
16
Bolt, Hex 3/8-16 x 3-1/4 PLN-74780652

...
17
Bolt, Hex 5/16-18 x 1-1/2 PLN-74760524

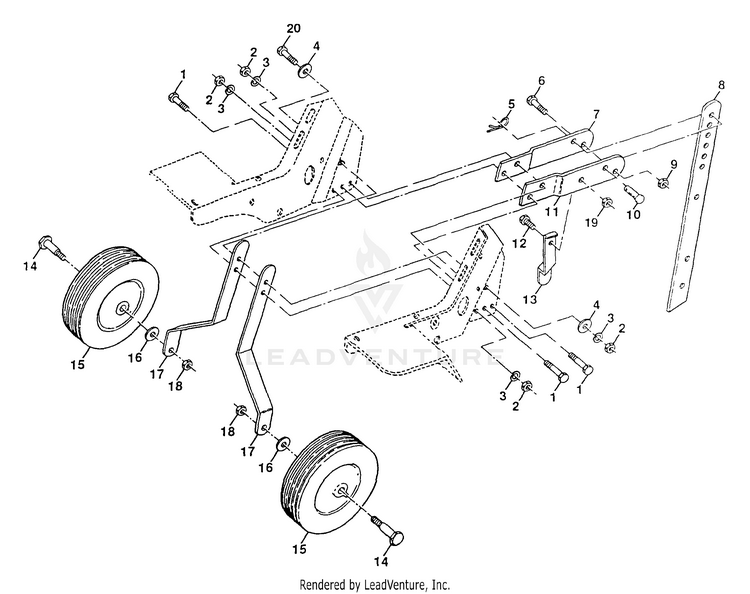

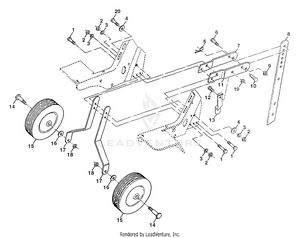

Wheel and Depth Stake Assembly

...
...
1
Bolt, Hex 5/16-18 x 1-1/4 PLN-74760520

...
2
Nut, Hex 5/16-18 PLN-73220500

...
3
Washer, Lock 5/16 PLN-10040500

...
4
Washer 3/8 x 7/8 x 14 Ga. PLN-19121414

...
5
Clip, Hairpin PLN-4921H

...
6
Bolt, Fin, Hex 3/8-16 x 1-3/4 PLN-74780628

...
7
Support, Depth Stake, R.H. PLN-318J

...
8
Depth Stake PLN-9193R500

...
9
Locknut, w/Insert 3/8-16 PLN-73800600

...
10
Pin, Clevis PLN-9551R

...
11
Support, Depth Stake, L.H. PLN-317J500

...
12
Bolt, Hex 5/16-18 x 3/4 PLN-74760512

...
13
Spring, Depth Stake PLN-325J

...
14
Bolt, Shoulder PLN-121117X

...
15

...
16
Washer 13/32 x 13/16 x 11 Ga PLN-19131311

...
17
Bracket, Wheel PLN-674H4

...
18
Nut, Crownlock 3/8-16 PLN-73680600

...
19
Locknut, w/Insert 5/16-18 PLN-73800500

...
20
Bolt Hex 5/16-18 x 1-1/2 PLN-74760524
...
...
...
