Poulan Pro PPBVM200LE Gas Blower Type 2

Model: PPBVM200LE Gas Blower Type 2

Save
 Part Not Listed?Part Not Listed?
product name

Assy - Vacuum

...
...
530071632
KIT CARB ASSY C1Q-W11 PLN-530071775

Carburetor Assembly (C1Q-W11) 530071465

...
...
1
Assy-Carb. Zama (C1Q-W11) PLN-530071465
...
2
Cap-Limiter (high) brown PLN-530038479
...
3
Cap-Limiter (low) tan PLN-530038478
...
4
Kit-Carb. Repair PLN-530071475
...
5
Kit-Carburetor Minor Repair PLN-530071442
...
530071465
Carburetor Assembly (C1Q-W11) PLN-530071465

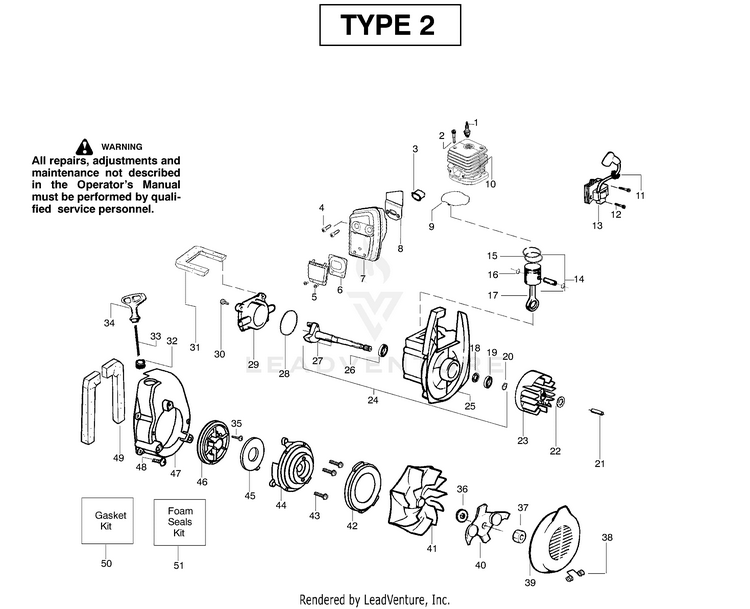

Engine Assembly Type 2

...
...
1
Spark Plug (RCJ-6Y) PLN-952030249
...
2
Screw PLN-530015953
...
3
Insulator-Heat PLN-530055191
...
4
Screw-Muffler-Internal PLN-530016387
...
5
Screw PLN-530015241
...
6
Kit-Spark Screen incl. #5 PLN-530071461
...
7
Kit-Muffler incl. 4,5,6, & 8 PLN-530071460
...
8
Gasket-Baffle (Kit) PLN-530071458
...
9
Gasket-Cylinder (Kit) PLN-530071458
...
10
CYLINDER PLN-530012458
...
11
Grommet-Ign. Module PLN-530019182
...
12
Screw-Ignition Module PLN-530016357
...
13
Ignition Module PLN-530035505
...
14
Kit-Piston Incl. 15 & 16 PLN-530071476
...
15
PISTON RING PLN-545154009
...
16
Retainer-Piston Pin PLN-530015162
...
17
CONNECTING ROD ASSY PLN-530049817
...
18
Kit-Crankcase Seal PLN-530071615
...
19
Bearing-Outer PLN-530055728
...
20
Retainer Ring-C'chaft PLN-530015941
...
21
Spacer-Flywheel PLN-530016190
...
22
Washer PLN-530015149
...
23
FLYWHEEL ASSY PLN-530047534
...
24
Assy-Crankcase/Crankshaft incl. 20,25,27 PLN-530071456
...
25
Assy-Crankcase Incl. 18,19,26 PLN-530012492
...
26
Bearing-Inner PLN-530032125
...
27
Assy-Crankshaft PLN-530012452
...
28
O-ring-C/case (Kit) PLN-530071458
...
29
Cover-Crankcase PLN-530012443
...
30
SCREW PLN-530016386
...
31
Foam-219mm (Kit) PLN-530071459
...
32
Eyelet-Flange PLN-530029182
...
33
Kit-Rope Incl. 35 PLN-530071467
...
34
Handle-Starter PLN-530054834
...
35
Screw-Rope PLN-530016326
...
36
Washer-Belleville PLN-530016240
...
37
Nut PLN-530626605
...
38
Spring-Return Cover PLN-530402043
...
39
Inlet Door PLN-530049313
...
40
Mulch Blade PLN-530095355
...
41
Assy-Impeller PLN-530069817
...
42
Seal-Ring PLN-530056625
...
43
Screw PLN-530016349
...
44
Housing-Pulley PLN-530055101
...
45
KIT STARTER SPRING PLN-545008011
...
46
PULLEY STARTER PLN-545150201
...
47
Fan Housing PLN-530055102
...
48
SCREW PLN-530016386
...
49
Foam-182mm (Kit) PLN-530071459
...
50
Kit-Gasket (page 2 incl. 2,5 & 19 ) (page 6 incl. 8,9, & 28 ) PLN-530071458
...
51
Kit-Foam Seals (page 2 incl. 1, 14,33) (page 6 incl. 31 & 49) PLN-530071459

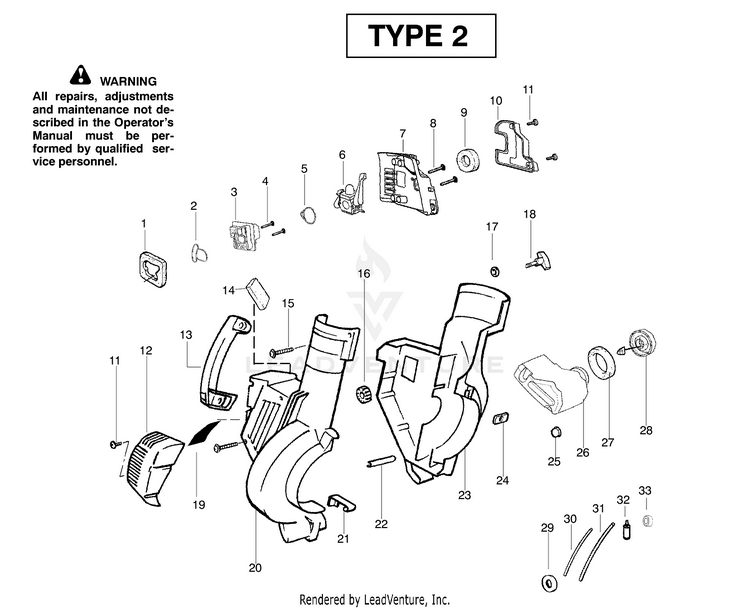

Housing Assembly Type 2

...
...
1
Air Dam (Kit) PLN-530071459
...
2
Gasket-Adapter (Kit) PLN-530071458
...
3
Carburetor Adaptor PLN-530035561
...
4
Screw PLN-530016309
...
5
Gasket-Carburetor (Kit) PLN-530071458
...
6
Kit-Carb Ass'y. (C1Q-W11) PLN-530071465
...
6
KIT CARB ASSY C1Q-W11 PLN-530071775
...
7
Air Box PLN-530056629
...
8
Screw-Carb. PLN-530015849
...
9
Filter-Air PLN-530049383
...
10
Cover-Air Filter PLN-530056581
...
11
Screw PLN-530016349
...
12
Guard-Muffler PLN-545085001
...
13
Handle PLN-530095469
...
14
Foam - 71.12mm (Kit) PLN-530071459
...
15
Screw PLN-530015886
...
16
Isolator PLN-530049323
...
17
Nut PLN-530015197
...
18
Knob-Tube Clamp PLN-530016322
...
19
Reflector-Heat (Kit) PLN-530071458
...
20
Housing-Right PLN-530057312
...
21
Spring-Cover Latch PLN-530402044
...
22
Guide-Starter Rope PLN-530049617
...
23
Housing-Left PLN-530057313
...
24
Nut PLN-530016207
...
25
Isolator-Crankcase PLN-530036792
...
26
Assy-Fuel Tank PLN-545058007
...
27
Gasket-Fuel Tank PLN-530049527
...
28
Assy - Fuel Cap w/retainer PLN-530057973
...
29
Grommet-Shroud PLN-530049656
...
30
Kit-Line Carb/Purge PLN-530069247
...
31
Kit-Line Tank/Purge PLN-530069216
...
32
Assy-Fuel Pick-up PLN-530095646
...
33
Grommet-Fuel line (Kit) PLN-530071459
...
xx
Operator Manual Not Shown PLN-530165753
...
xx
Warning Decal Not Shown PLN-530057414
...
xx
Decal-Start Inst. Not Shown PLN-530057214

Kit - Carburetor Assy (C1Q-W11C) 530071632

...
...
1
Assy-Vac. Bag w/strap PLN-530095564
...
2
Tube-Elbow Vac PLN-530095470
...
3
Retainer-Vac Tube Knob PLN-530049686
...
4
Knob PLN-530016322
...
5
Tube-Lower Vac PLN-530094476
...
7
Tube-Blower PLN-530095593
...
...
...
