product name

Poulan Pro PPBVM200LE Gas Blower Type 1

Model: PPBVM200LE Gas Blower Type 1

Save
 Part Not Listed?Part Not Listed?
product name

Assy - Vacuum

...
...
530071632
KIT CARB ASSY C1Q-W11 PLN-530071775

Carburetor Assembly (C1Q-W11) 530071465

...
...
1
Assy-Carb. Zama (C1Q-W11) PLN-530071465
...
2
Cap-Limiter (high) brown PLN-530038479
...
3
Cap-Limiter (low) tan PLN-530038478
...
4
Kit-Carb. Repair PLN-530071475
...
5
Kit-Carburetor Minor Repair PLN-530071442
...

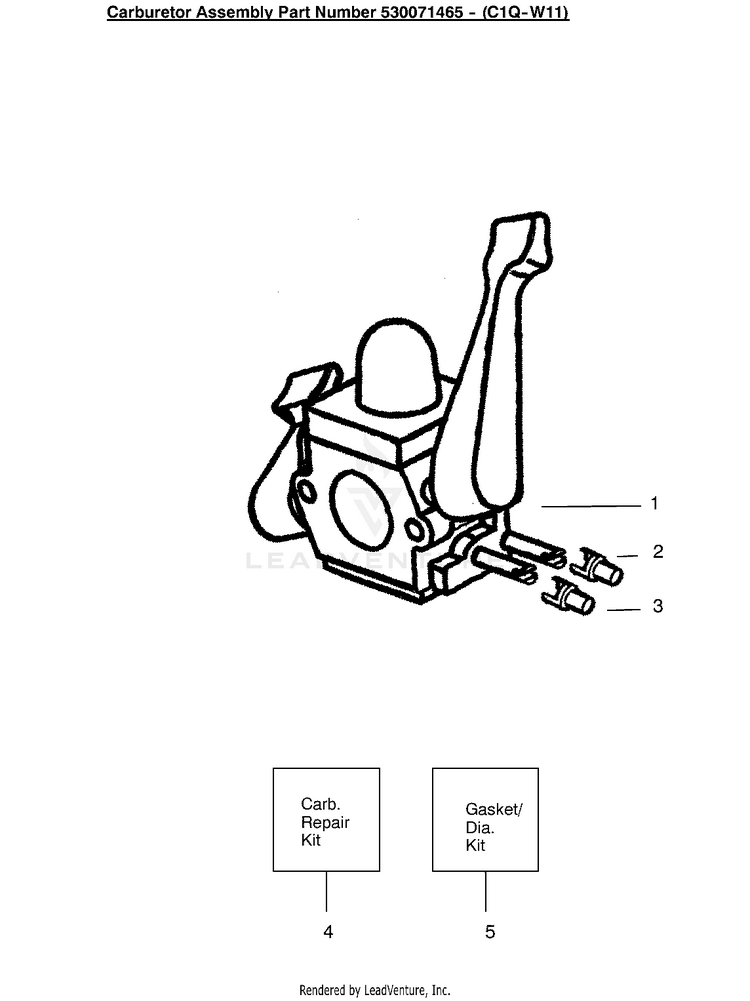

530071465
Carburetor Assembly (C1Q-W11) PLN-530071465

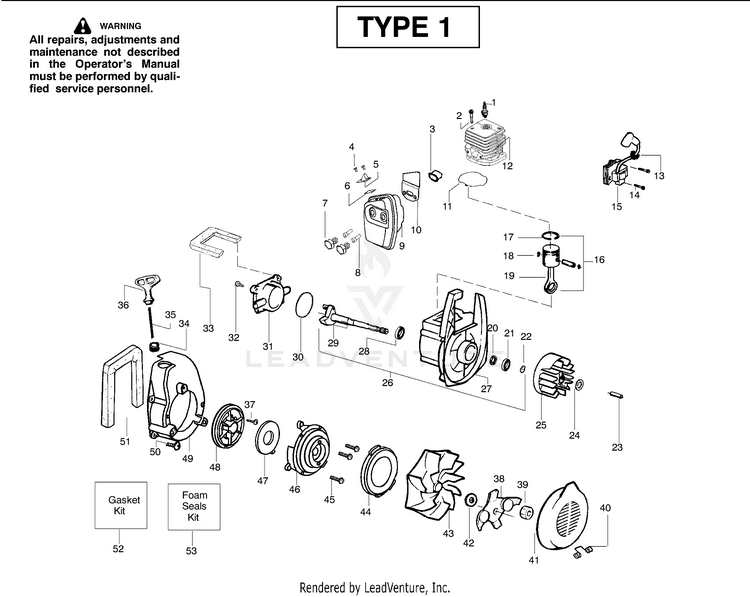

Engine Assembly Type 1

...
...
1
Spark Plug (RCJ-6Y) PLN-952030249
...
2
Screw PLN-530015953
...
3
Insulator-Heat PLN-530055191
...
4
Screw PLN-530055240
...
5
Deflector-Muffler PLN-530055241
...
6
Kit-Spark Screen incl. #4 PLN-530071461
...
7
Bolt-Muffler-external PLN-530016369
...
8
Screw-Muffler-Internal PLN-530016341
...
9
Kit-Muffler incl. 4-6,8,10 PLN-530071460
...
10
Gasket-Baffle (Kit) PLN-530071458
...
11
Gasket-Cylinder (Kit) PLN-530071458
...
12
CYLINDER PLN-530012458
...
13
Grommet-Ign. Module PLN-530019182
...
14
Screw-Ignition Module PLN-530016357
...
15
Ignition Module PLN-530035505
...
16
Kit-Piston Incl. 17 & 18 PLN-530071476
...
17
Piston Ring PLN-530053565
...
18
Retainer-Piston Pin PLN-530015162
...
19
CONNECTING ROD ASSY PLN-530049817
...
20
Seal-Crankcase PLN-530019264
...
21
Bearing-Outer PLN-530055728
...
22
Retainer Ring-C'chaft PLN-530015941
...
23
Spacer-Flywheel PLN-530016190
...
24
Washer PLN-530015149
...
25
FLYWHEEL ASSY PLN-530047534
...
26
Assy-Crankcase/Crankshaft incl. 22,27,29 PLN-530071456
...
27
Assy-Crankcase Incl. 20,21,28 PLN-530012440
...
28
Bearing-Inner PLN-530032125
...
29
Assy-Crankshaft PLN-530012452
...
30
O-ring-C/case (Kit) PLN-530071458
...
31
Cover-Crankcase PLN-530012443
...
32
SCREW PLN-530016386
...
33
Foam-219mm (Kit) PLN-530071459
...
34
Eyelet-Flange PLN-530029182
...
35
Kit-Rope PLN-530071467
...
36
Handle-Starter PLN-530049488
...
37
Screw-Rope PLN-530016326
...
38
Mulch Blade PLN-530095355
...
39
Nut PLN-530626605
...
40
Spring-Return Cover PLN-530402043
...
41
Inlet Door PLN-530049313
...
42
Washer-Belleville PLN-530016240
...
43
Assy-Impeller PLN-530069817
...
44
Seal-Ring PLN-530055106
...
45
Screw PLN-530016349
...
46
Housing-Pulley PLN-530055101
...
47
KIT STARTER SPRING PLN-545008011
...
48
PULLEY STARTER PLN-545150201
...
49
Fan Housing PLN-530055102
...
50
SCREW PLN-530016386
...
51
Foam-365mm (Kit) PLN-530071459
...
52
Kit-Gasket includes #10,11,31, adaptor gasket, & carb. gasket PLN-530071458
...
53
Kit-Foam Seals includes #34,52, air dam & Fuel line grommet PLN-530071459

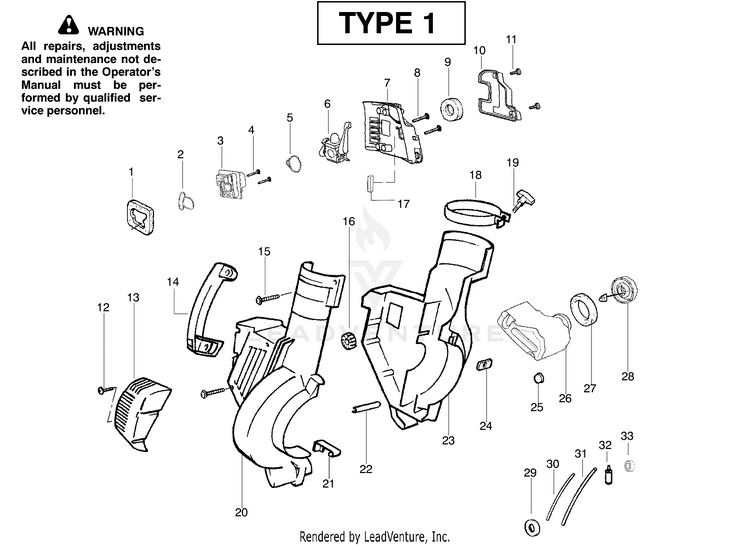

Housing Assembly Type 1

...
...
1
Air Dam (Kit) PLN-530071459
...
2
Gasket-Adapter (Kit) PLN-530071458
...
3
Carburetor Adaptor PLN-530035502
...
4
Screw PLN-530016309
...
5
Gasket-Carburetor (Kit) PLN-530071458
...
6
Kit-Carb Ass'y. (C1Q-W11) PLN-530071465
...
7
Air Box PLN-530055103
...
8
Screw-Carb. PLN-530016340
...
9
Filter-Air PLN-530049383
...
10
Cover-Air Filter PLN-530055104
...
11
Screw-Air Box Cover PLN-530016354
...
12
Screw PLN-530015880
...
13
Assy-Muffler Cover PLN-530056257
...
14
Handle PLN-530095469
...
15
Screw PLN-530015886
...
16
Isolator PLN-530049323
...
17
Foam-25.4mm (Kit) PLN-530071459
...
18
Clamp-Blower Tube PLN-530016324
...
19
Knob-Tube Clamp PLN-530016322
...
20
Housing-Right (yellow) PLN-530055148
...
21
Spring-Cover Latch PLN-530402044
...
22
Guide-Starter Rope PLN-530049617
...
23
Housing-Left (yellow) PLN-530055147
...
24
Nut PLN-530016207
...
25
Isolator-Crankcase PLN-530036792
...
26
Assy-Fuel Tank PLN-545058007
...
27
Gasket-Fuel Tank PLN-530049527
...
28
Assy - Fuel Cap w/retainer PLN-530057973
...
29
Grommet-Shroud PLN-530049656
...
30
Kit-Line Carb/Purge PLN-530069247
...
31
Kit-Line Tank/Purge PLN-530069216
...
32
Assy-Fuel Pick-up PLN-530095646
...
33
Grommet-Fuel line (Kit) PLN-530071459
...
xx
Operator Manual Not Shown PLN-530088953
...
xx
Warning Decal Not Shown PLN-530084404
...
xx
Decal-Start Inst. Not Shown PLN-530055358

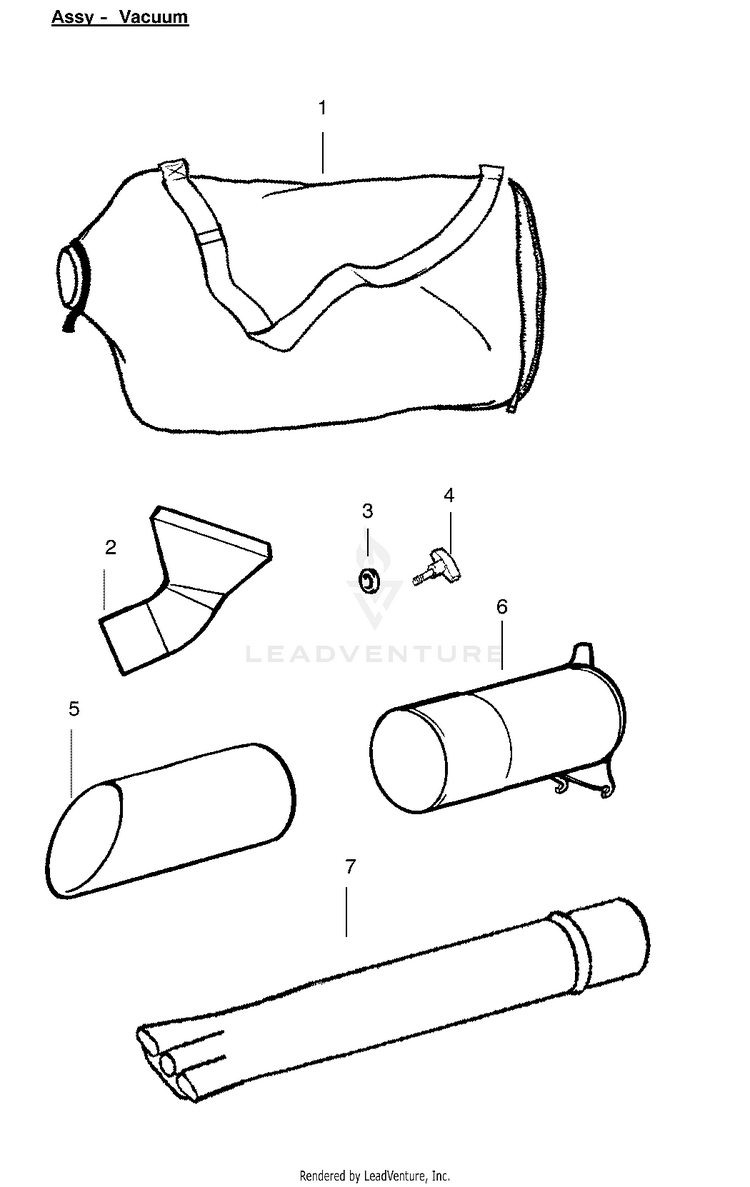

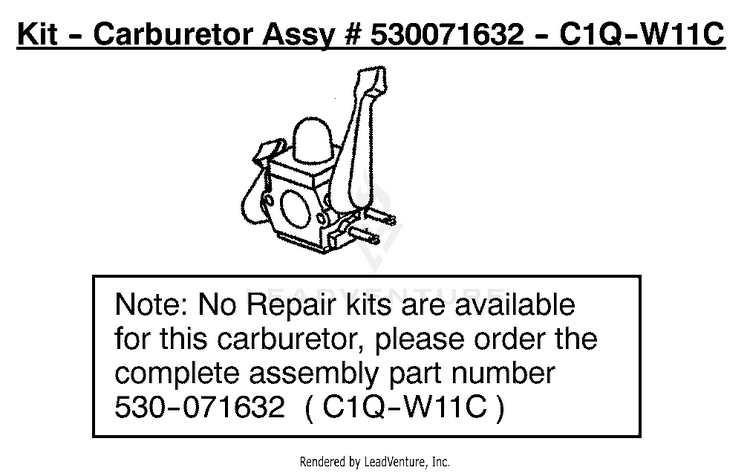

Kit - Carburetor Assy (C1Q-W11C) 530071632

...
...
1
Assy-Vac. Bag w/strap PLN-530095564
...
2
Tube-Elbow Vac PLN-530095470
...
3
Retainer-Vac Tube Knob PLN-530049686
...
4
Knob PLN-530016322
...
5
Tube-Lower Vac PLN-530094476
...
7
Tube-Blower PLN-530095593
...
...
...
