Poulan Pro PPBVM200 Gas Blower Type 2

Model: PPBVM200 Gas Blower Type 2

Save Part Not Listed?
product name

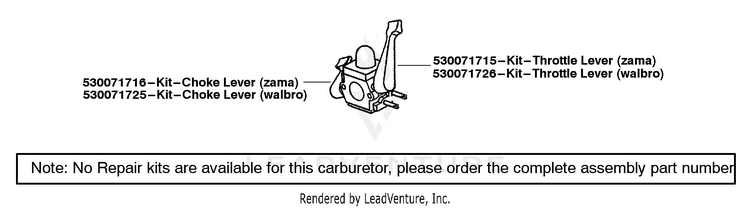

Carburetor Assembly (C1Q-W11C) P/N 530071632

...
...
xx
KIT CARB ASSY C1Q-W11 - C1Q-W11C (zama) PLN-530071775
...
530071716
KIT CHOKE ZAMA LB25 PLN-545081819
...
530071725
Kit-Choke Lever (Walbro) PLN-530071725
...
530071715
Kit-Throttle Lever (zama) PLN-530071715
...
530071726
Kit-Throttle Lever (Walbro) PLN-530071726

Carburetor Assembly (WT-606) P/N 530071775

...
...
xx
Kit - Carburetor Assy # - WT-606 (walbro) PLN-530071775
...
530071716
KIT CHOKE ZAMA LB25 PLN-545081819
...
530071725
Kit-Choke Lever (Walbro) PLN-530071725
...
530071715
Kit-Throttle Lever (zama) PLN-530071715
...
530071726
Kit-Throttle Lever (Walbro) PLN-530071726

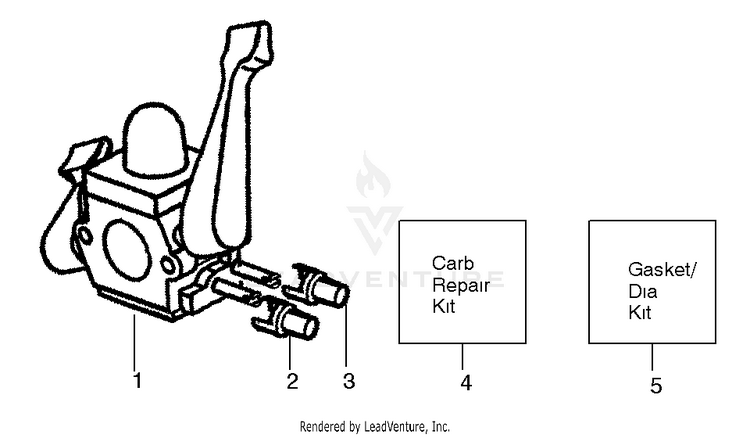

Carburetor Assembly C1Q-W11) P/N 530071465 Type 2 & 3

...
...
1
Assy-Carb. Zama (C1Q-W11) PLN-530071465
...
2
Cap-Limiter (high) brown PLN-530038479
...
3
Cap-Limiter (low) tan PLN-530038478
...
4
Kit-Carb. Repair PLN-530071475
...
5
Kit-Carburetor Minor Repair PLN-530071442

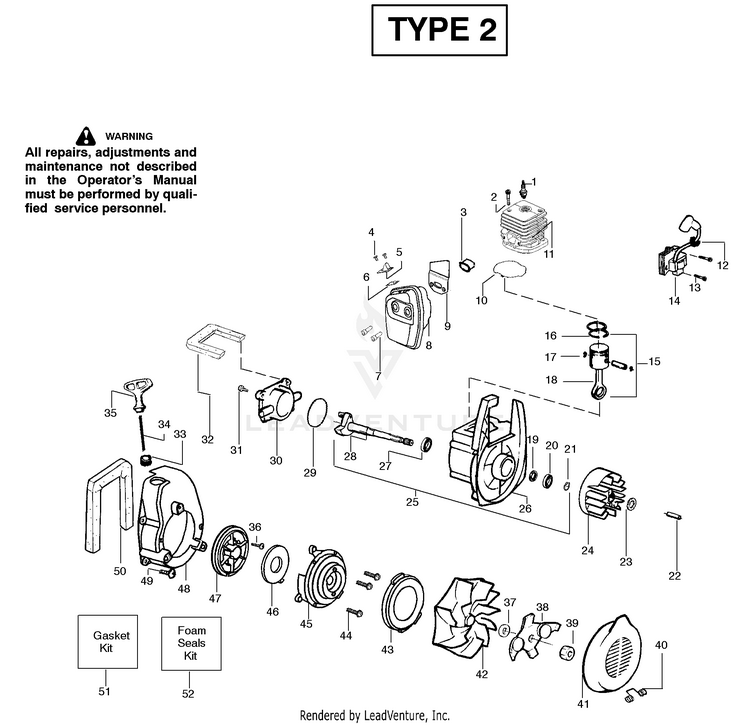

Engine Assembly Type 2

...
...
1
Spark Plug (RCJ-6Y) PLN-952030249
...
2
Screw PLN-530015953
...
3
Insulator-Heat PLN-530055191
...
4
Screw PLN-530055240
...
5
Deflector-Muffler PLN-530055241
...
6
Kit-Spark Screen (incl. #4) PLN-530071461
...
7
Screw-Muffler-Internal PLN-530016341
...
8
Kit-Muffler (incl. 4-6,7,9) PLN-530071499
...
9
Gasket-Baffle (kit) PLN-530071458
...
10
Gasket-Cylinder (kit) PLN-530071458
...
11
CYLINDER PLN-530012458
...
12
Grommet-Ign. Module PLN-530019182
...
13
Screw-Ignition Module PLN-530016357
...
14
Module-Ignition PLN-530035505
...
15
Kit-Piston (Incl. 16 & 17) PLN-530071476
...
16
PISTON RING PLN-545154009
...
17
Retainer-Piston Pin PLN-530015162
...
18
CONNECTING ROD ASSY PLN-530049817
...
19
Seal-Crankcase PLN-530019264
...
20
Bearing-Outer PLN-530055728
...
21
Retainer Ring-C'chaft PLN-530015941
...
22
Spacer-Flywheel PLN-530016190
...
23
Washer PLN-530015149
...
24
FLYWHEEL ASSY PLN-530047534
...
25
Assy-Crankcase/Crankshaft (incl. 21,26,28) PLN-530071456
...
26
Assy-Crankcase (Incl. 19,20,27) PLN-530012440
...
27
Bearing-Inner PLN-530032125
...
28
Assy-Crankshaft PLN-530012452
...
29
O-ring-C/case (kit) PLN-530071458
...
30
Cover-Crankcase PLN-530012443
...
31
SCREW PLN-530016386
...
32
Foam-219mm (kit) PLN-530071459
...
33
Eyelet-Flange PLN-530029182
...
34
Kit-Rope PLN-530071467
...
35
Handle-Starter PLN-530049488
...
36
Screw-Rope PLN-530016326
...
37
Washer-Belleville PLN-530016240
...
38
Mulch Blade PLN-530095355
...
39
Nut PLN-530626605
...
40
Spring-Return Cover PLN-530402043
...
41
Door-Inlet PLN-530049313
...
42
Kit-Impeller Assy PLN-530069817
...
43
Seal-Ring PLN-530055106
...
44
Screw PLN-530016349
...
45
Housing-Pulley PLN-530055101
...
46
KIT STARTER SPRING PLN-545008011
...
47
PULLEY STARTER PLN-545150201
...
48
Housing-Fan PLN-530055102
...
49
SCREW PLN-530016386
...
50
Foam-365mm (kit) PLN-530071459
...
51
Kit-Gasket (includes (#9,10,29, adaptor gas ket, & carb. gasket) PLN-530071458
...
52
Kit-Foam Seals (includes (#32,50, air dam & Fuel line grommet) PLN-530071459

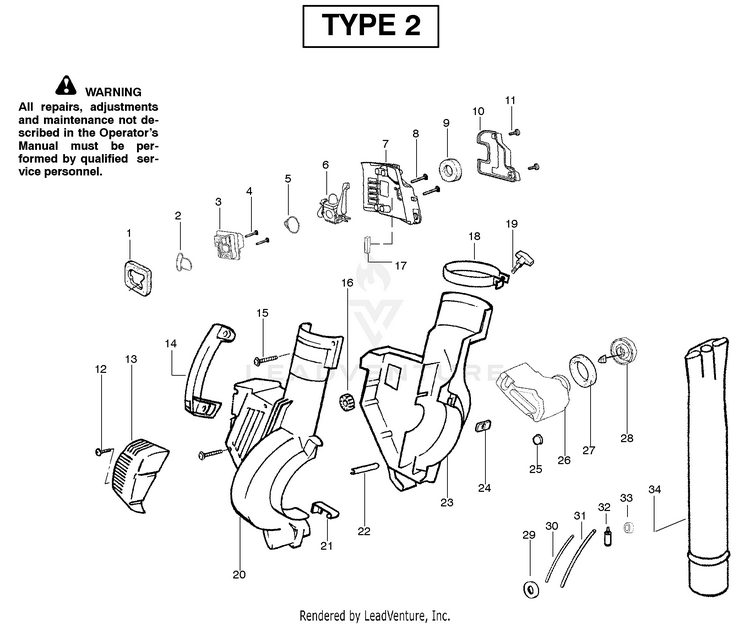

Handle, Chassis & Blower Assembly Type 2

...
...
1
Air Dam (kit) PLN-530071459
...
2
Gasket-Adapter (kit) PLN-530071458
...
3
Carburetor Adaptor PLN-530035502
...
4
Screw PLN-530016309
...
5
Gasket-Carburetor (kit) PLN-530071458
...
6
Kit-Carb Ass'y. (C1Q-W11) PLN-530071465
...
7
Air Box PLN-530055103
...
8
Screw-Carb. PLN-530016340
...
9
Filter-Air PLN-530049383
...
10
Cover-Air Filter PLN-530055104
...
11
Screw-Air Box Cover PLN-530016354
...
12
Screw PLN-530016349
...
13
Assy-Muffler Cover PLN-530055722
...
14
Handle PLN-530095469
...
15
Screw PLN-530015886
...
16
Isolator PLN-530049323
...
17
Foam 25.4mm (kit) PLN-530071459
...
18
Clamp-Blower Tube PLN-530016324
...
19
Knob-Tube Clamp PLN-530016322
...
20
Housing-Right PLN-530055148
...
21
Spring-Cover Latch PLN-530402044
...
22
Guide-Starter Rope PLN-530049617
...
23
Housing-Left PLN-530055147
...
24
Nut PLN-530016207
...
25
Isolator-Crankcase PLN-530036792
...
26
Assy-Fuel Tank PLN-545058007
...
27
Gasket-Fuel Tank PLN-530049527
...
28
Assy - Fuel Cap w/retainer PLN-530057973
...
29
Grommet-Shroud PLN-530049656
...
30
Kit-Line Carb/Purge PLN-530069247
...
31
Kit-Line Tank/Purge PLN-530069216
...
32
Assy-Fuel Pick-up PLN-530095646
...
33
Grommet-Fuel line (kit) PLN-530071459
...
34
Tube - Blower PLN-530095593
...
xx
Operator Manual Not Shown PLN-530088124
...
xx
Warning Decal Not Shown PLN-530084404
...
xx
Decal-Start Inst. Not Shown PLN-530057214

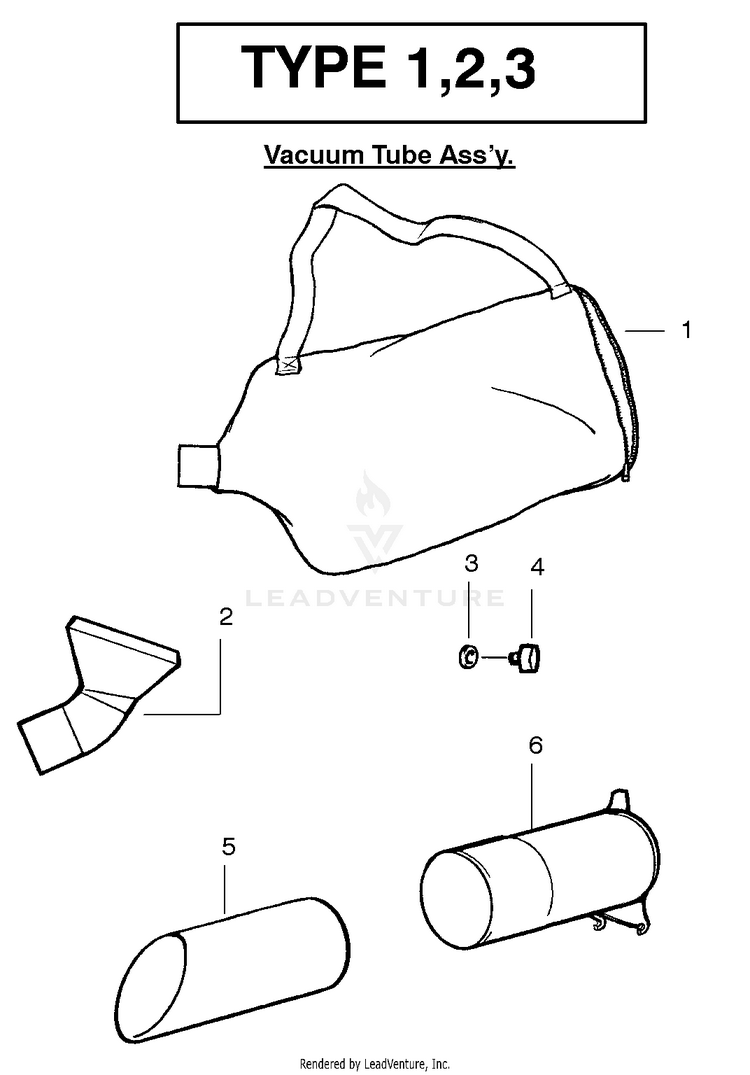

Vacuum Tube Assembly

...
...
1
Assy-Vac. Bag w/strap PLN-530095564
...
2
Tube-Elbow Vac PLN-530095470
...
3
Retainer-Vac Tube Knob PLN-530049686
...
4
Knob PLN-530016322
...
5
Tube-Lower Vac PLN-530094476
...
6
Tube-Upper Vac Service Note (When ordering the new upper vac tube 530056901 , items # 3,4 are not required.) PLN-530056901
