Poulan Pro PPB5500P Pruner Attachment

Model: PPB5500P-Poulan Pro

Save
 Part Not Listed?Part Not Listed?
product name

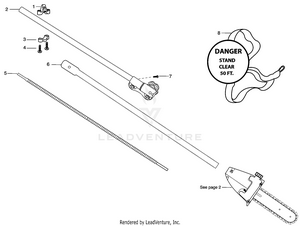

Handle & Shaft Assembly

...
...
1
KIT HARNESS CLAMP PLN-530071605
...
2
TUBE (Incl. 7) PLN-576472801
...
3
KIT HARNESS CLAMP PLN-530071605
...
4
Screw (#10 plastite) PLN-530016406
...
5
Flexshaft - Lower PLN-530096218
...
6
Assy. - Lower Shaft PLN-545219201
...
7
Screw (12-24 x .480) PLN-530016344
...
8
Shoulder Strap PLN-530094417
...
xx
Manual Not Shown PLN-115261126
...
xx
Decal-shaft warning Not Shown PLN-545003066
...
xx
Hanger-Att.(90 deg.) Not Shown PLN-530150031
...
xx
Wrench-hex (5/32) Not Shown PLN-530031159

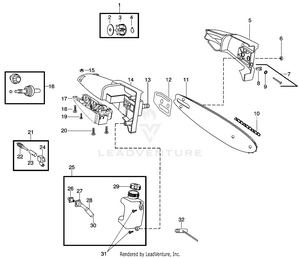

Pole Pruner Attachment Assembly

...
...
1
Kit - Sprocket Assy. (Incl. 2,3,4) PLN-530071647
...
2
Washer PLN-530056521
...
3
Sprocket PLN-530056520
...
4
Retainer - Sprocket PLN-530056563
...
5
Assy - Bar Clamp (Incl. 7) PLN-530057100
...
6
Nut - Bar Mounting PLN-530015917
...
7
Kit - Bar Adjust (Incl. 8,9) PLN-530069611
...
8
Pin - Bar Adjust PLN-530015826
...
9
Retainer - Bar Adjust PLN-530038593
...
10
Chain - 8" PLN-530051524
...
11
Bar - 8" PLN-530044908
...
12
Plate - Bar Pad PLN-530056523
...
13
Bolt - Bar PLN-530016133
...
14
Housing - Upper (Incl. 13) PLN-530056513
...
15
Nut PLN-530016284
...
16
Kit - Gear Assy. PLN-530071646
...
17
Housing - Lower PLN-530056514
...
18
Screw (10-24) PLN-530016312
...
19
Screw - Alignment (10-14 x 1/2") PLN-530015805
...
20
Screw (10-14 x 13/16") PLN-530015886
...
21
Kit - Oil Assy (Incl. 22,23,24,26) PLN-530071645
...
22
Assy. - Gear Plunger PLN-530053764
...
23
Barrel PLN-530053765
...
24
Assy- Oil Block (Incl. 23) PLN-530057347
...
25
ASSY OIL TANK (Incl. 26,27,28,29,30) PLN-530150266
...
26
Fitting - Oil Line PLN-530056524
...
27
Intake - Oil Line PLN-530021160
...
28
Filter-Oil PLN-530056533
...
29
CAP OIL PLN-530150552
...
30
Filter-Oil PLN-530056533
...
31
Screw (10-24 x 7/8") PLN-530015843
...
32
Wrench - Bar PLN-530031163
...
...
...
