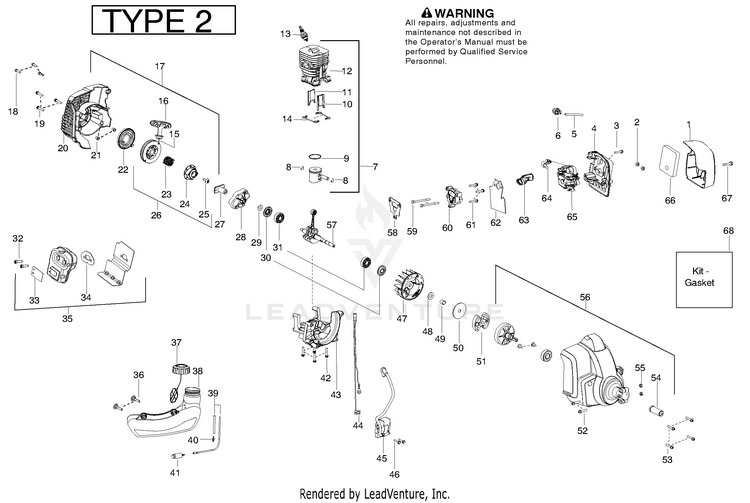

Poulan Pro PPB335 Gas Trimmer Type 2

Model: PPB335 Gas Trimmer Type 2

Save
Part Not Listed?Part Not Listed?

product name

Cutting Equipment

...
...
1
Assy-Switch Wire PLN-545191801

...
2
Housing-Throttle (RH) PLN-545189402

...
3

...
4
Screw 10-14 x 1/2 PLN-530015805

...
5
Spring-Trigger PLN-545190001

...
6
Kit - Trigger (Incl. 5) PLN-545008077

...
7
Bolt - 1/4-20 x 2 PLN-530015786

...
8
Assy - Throttle Cable PLN-545199301

...
9
Housing-Throttle (LH) PLN-545189302

...
10
Kit-Switch PLN-545008040

...
11
Assy - Handle Assist (Incl. 7,12) PLN-530058583


...
13
Kit-Upper Shaft (Incl.#14) PLN-545006039

...
14
ASSY COUPLER BLACK PLN-545213801

...
15
Flexshaft PLN-545132002

...
16
Kit-Driveshaft Lower (Incl. 15,20,21,24,25) PLN-545008072

...
17
Kit-Shield (Incl. 18,19,22,23) PLN-545003325

...
18
Limiter-Line PLN-530052286

...
19
Screw - 10-14 x 3/4 PLN-530015814

...
20
Screw - 8-16 x .593 PLN-530015775

...
21
Screw - 12-24 x .960 PLN-530016014

...
22
Bolt - 1/4-20 x 1-1/4 PLN-530015820


...
24
Bracket - Shield PLN-545150701

...
25
Assy - Gearbox 1" PLN-530096099

...
26
Assy - Fixed Line Head (Incl. line & cap) PLN-545053902

...
27
Accy - Line (12 pcs ) PLN-952711635

...
28
Cap - Fixed Line PLN-545049501

...
28
Decal-Shaft Warning (lower) Not Shown PLN-545209101

...
28
Decal-Shaft Warning (upper) Not Shown PLN-545167716

...
28
Decal - California Spark / Hand Not Shown PLN-527291101

Engine

...
...
1
Cover - Airbox PLN-545189001

...
2
Nut - Carb. Screw PLN-530016101

...
3
Screw 8-32 PLN-530016301

...
4
Base - Airbox PLN-545188901

...
6
Assy - Purge Bulb PLN-530047721

...
7
Kit - Piston/Cylinder (Incl. 8,9,10,11,12) PLN-545008046

...
8
Retainer - Piston pin PLN-545194801

...
9
Ring - Piston PLN-545194601

...
10
Insert - Front Transfer Port PLN-545194901

...
11
Insert - Rear Transfer Port PLN-545195001

...
12
Cylinder - Machined PLN-545181801

...
13
Spark Plug (RCJ- 6Y) PLN-952030249

...
14
Seal - Cylinder (Kit) PLN-545008044

...
15
Kit - Rope PLN-545029901

...
16
Handle - Starter PLN-545208401

...
17
Assy - Starter/Shroud (Incl. 15,16,20,21,22,26) PLN-545212701

...
18
Screw M4 x 1.75 PLN-530016449

...
19
Screw M5x25mm PLN-530015897

...
20
Assy - Starter/Shroud PLN-545212701

...
21

...
22
Kit - Starter Spring PLN-545008013

...
23
Spring - Starter Hub PLN-545188301

...
24
Hub - Starter PLN-545188001

...
25

...
26
Kit - Starter Pulley (Incl. 23,24,25) PLN-545008049

...
27
Coupling - Starter PLN-545188201

...
28
Assy - Starter Cup PLN-545188701

...
29
Washer - Flat PLN-530015828

...
30
Seal - Crankshaft (kit) PLN-545008044

...
31
Bearing - Crankshaft PLN-545013401

...
32
Bolt - Muffler PLN-530058982

...
33
SPARK ARRESTER PLN-545224001

...
34
Gasket - Muffler (kit) PLN-545008044

...
35
Assy - Muffler (Incl. 32,33,34) PLN-545180701

...
36
Screw - Tank Retainer PLN-530016445

...
37
Assy - Fuel Cap w/retainer PLN-530057973

...
38
ASSY FUEL TANK (Incl. 37, 39,40,41) PLN-578942701

...
39
Kit - Fuel line (Incl. 40) PLN-530069599

...
40
Fitting - Fuel Line PLN-530023877

...
41
Assy - Fuel Pickup PLN-530095646

...
42
Screw - M5x25mm PLN-530015897

...
43
Crankcase PLN-545181901

...
44
Assy - Leadwire PLN-545191601

...
45
Module - Ignition PLN-545189701

...
46
Screw 8-32 PLN-530016357

...
47

...
48

...
49
Spacer - Flywheel PLN-530057852

...
50
Washer - Clutch PLN-530094189

...
51
Assy-Clutch PLN-530055122

...
52
Screw 10-24 x 1" PLN-530015774

...
53
Screw M5 x 25mm PLN-530015897

...
54
Guide - Clutch Drum PLN-545186401

...
55
Locknut 10-24 PLN-530015768

...
56
Assy - Fan Housing (Incl. 52,54,55) PLN-545212401

...
57
CRANKSHAFT PLN-545194001

...
58
Gasket - Adapter/Cyl. (kit) PLN-545008044

...
59
Bolt M5 x .80 PLN-530016418

...
60
Adaptor - Carburetor PLN-575391501

...
61
Screw .20 x 32 PLN-530016441

...
62
Gasket - Carb./Adapter(kit) PLN-545008044

...
63
Boot - Carb. PLN-545190501

...
64
Lever - Choke PLN-574719701

...
65
Carburetor (WTA-32) PLN-525810301

...
66
Filter - Air PLN-545195901

...
67
Bolt - Knob PLN-530016465

...
68
Kit - Gasket (Incl. 14,30,34,58,62) PLN-545008044
...
...
...
