Poulan Pro PPB250E Gas Trimmer Type 3

Model: PPB250E Gas Trimmer Type 3

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

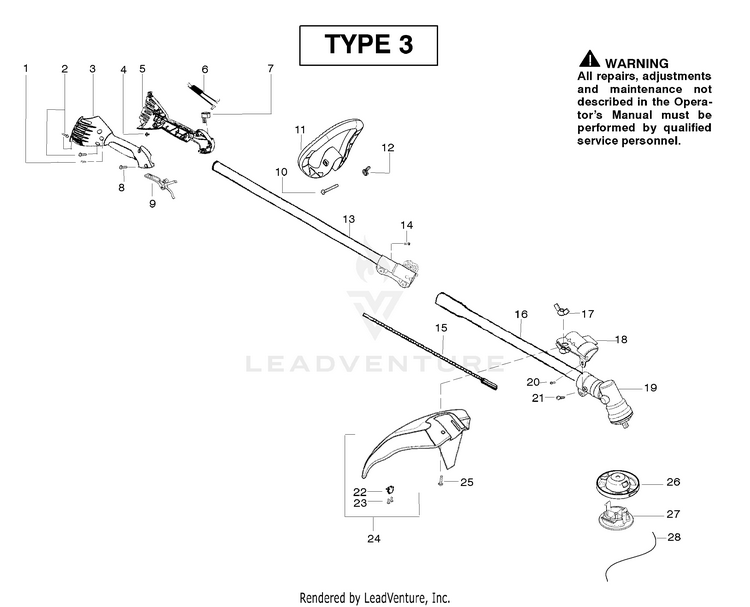

Handle & Shaft Assembly Type 3

...
...
1
Screw-alignment PLN-530015805


...
3
Hsg.-Throttle right PLN-530057983

...
4
Screw-Cable Retention PLN-530016326

...
5
Hsg.-Left throttle PLN-530057984

...
6
Assy-Wire PLN-530058843

...
7
Kit-Switch PLN-530071356


...
9
TRIGGER THROTTLE RED PLN-545017701


...
11
Assy-Handle (Incl. 10,12) PLN-530058583


...
13
Kit-Upper Shaft (Incl. flex,clamp & 14) PLN-545006039

...

...
15
Shaft-Flex (lower) PLN-530096218

...
16
Assy-Lower Shaft PLN-530071790


...
18
Bracket-Shield PLN-530150701

...
19

...

...

...
22
Limiter-Line PLN-530052285

...

...
24
Kit-Shield Assy. (incl. 22,23) PLN-530071765


...
26
Assy - Fixed Line Head PLN-545053902

...
27
Cap-Fixed Line PLN-545049501

...
28
Accy-Line (12 pcs) PLN-952711635

...
xx
Operator Manual Not Shown PLN-545177330

...
xx
Decal-Shaft Warning Not Shown PLN-545209101

...
xx
Decal-Upper Shaft Not Shown PLN-545167703
...
...
...
