Poulan Pro PPB200 Gas Trimmer

Model: PPB200 Gas Trimmer

Save Part Not Listed?
product name

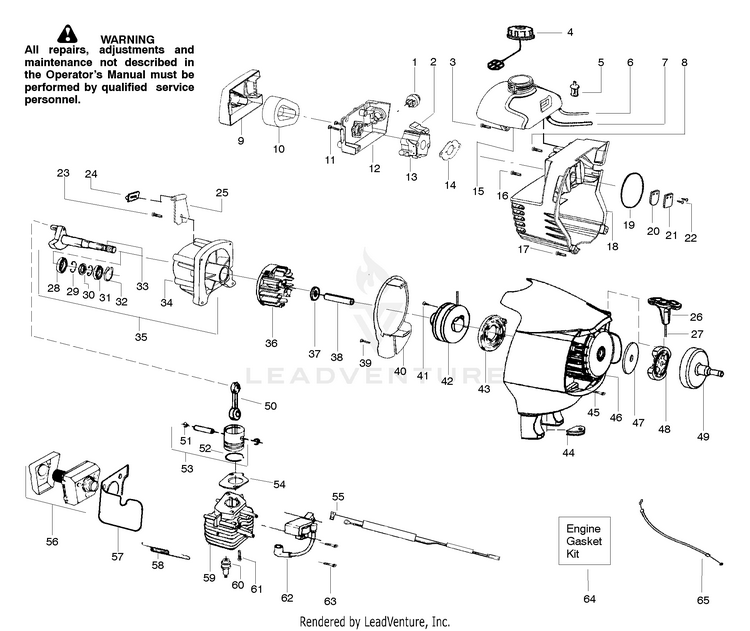

Engine Assembly

...
...
1
Bulb-Purge PLN-530047721
...
2
Kit-Choke Lever PLN-530071717
...
3
Screw-tank PLN-530015843
...
4
Assy - Fuel Cap w/retainer PLN-530057973
...
5
Assy-Fuel pickup PLN-530095646
...
6
Kit-Fuel line PLN-530069247
...
7
Kit-Fuel/Purge line PLN-530069216
...
8
Screw PLN-530015775
...
9
Cover-Air box PLN-530054935
...
10
Filter-Air PLN-530054946
...
11
Screw-Carb. PLN-530015849
...
12
Box-Air PLN-530054934
...
13
Assy-Carb (WT628) (Note: Repair kits are not available for this carburetor) PLN-530071637
...
14
Gasket-Carb. (kit) PLN-530071401
...
15
Assy-Fuel Tank PLN-545075305
...
16
Screw-Crankcase PLN-530015771
...
17
Screw-Shroud PLN-530015952
...
18
Shroud PLN-530058797
...
19
O-ring-Shroud (kit) PLN-530071401
...
20
Valve-Reed PLN-530027593
...
21
Stop-Reed PLN-530054596
...
22
SCREW 6-19X.437 PLN-545227101
...
23
Screw-Retainer PLN-530015875
...
24
Isolator-Tank PLN-530055492
...
25
Ret.-Tank PLN-530054941
...
26
Handle-Starter PLN-530054834
...
27
Kit-Rope PLN-530071325
...
28
Bearing-Inner PLN-530032103
...
29
Retainer PLN-530015787
...
30
Seal PLN-530019158
...
31
Bearing-Outer PLN-530032102
...
32
Ret.-Crankshaft PLN-530015789
...
33
Assy-Crankshaft PLN-530028807
...
34
Assy-Crankcase (Incl. 28-31) PLN-545081901
...
35
Assy-C’case/C’shaft (Incl. 32,33,34) PLN-545006037
...
36
Assy-Flywheel PLN-530055524
...
37
Washer PLN-530016030
...
38
Spacer PLN-530055620
...
39
Screw-Baffle PLN-530015775
...
40
Plate-Baffle PLN-545115201
...
41
Screw-Rope PLN-530016391
...
42
Kit-Pulley (incl. 41) PLN-530071399
...
43
KIT STARTER SPRING PLN-545008011
...
44
Grommet PLN-530019182
...
45
SCREW PLN-530016386
...
46
Assy.-Fan Housing PLN-530059254
...
47
Washer-Clutch PLN-530094189
...
48
Assy-Clutch PLN-530055122
...
49
Drum-Clutch PLN-530028799
...
50
Assy-Conn. Rod PLN-530010960
...
51
Ret.-Piston pin PLN-530015162
...
52
Ring-Piston PLN-530012594
...
53
Kit-Piston (Incl. 51,52) PLN-530071998
...
54
Gasket-Cylinder (kit) PLN-530071401
...
55
Assy-Leadwire PLN-530058846
...
56
Kit-Muffler PLN-530069310
...
57
Shield PLN-530058957
...
58
Spring-Muffler PLN-530036409
...
59
Kit-Cylinder PLN-530071582
...
60
Plug-Spark (RCJ-6Y) PLN-952030249
...
61
Bolt-Cyl. 1/4-20" PLN-530001624
...
62
Module-Ignition PLN-530039218
...
63
Screw-Module PLN-530016357
...
64
Kit-Gasket (Incl. 14,19, 54) PLN-530071401
...
65
Assy-Throttle cable PLN-545026801

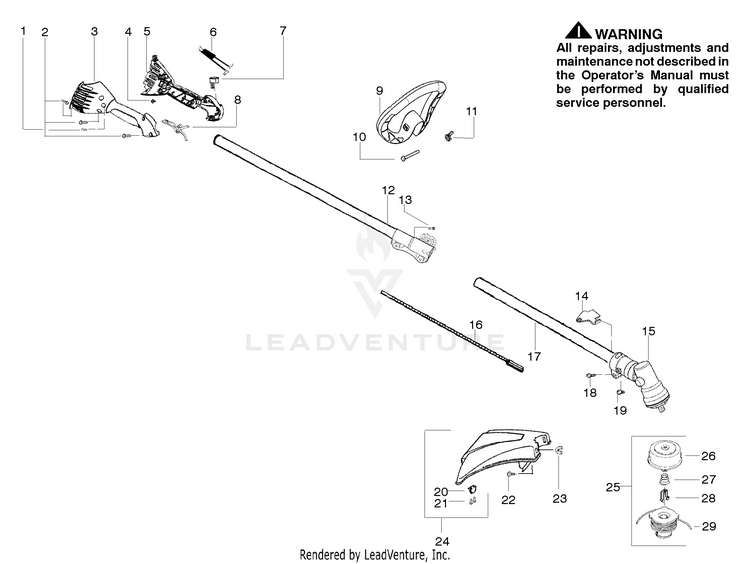

Handle / Shaft Assembly

...
...
1
Screw-alignment PLN-530015805
...
2
Screw PLN-530015886
...
3
Hsg.-Throttle-right PLN-530057983
...
4
Screw-Cable Ret. PLN-530016326
...
5
Hsg.-Throttle-left PLN-530057984
...
6
Assy-Wire PLN-530058843
...
7
Kit-Switch PLN-530069572
...
8
TRIGGER THROTTLE RED PLN-545017701
...
9
Assy-Handle (Incl. 10,11) PLN-530058583
...
10
Bolt-Handle PLN-530015786
...
11
Nut PLN-530091373
...
12
KIT UPPER SHAFT BLACK (Incl. Flex, clamp & 13) PLN-575260201
...
13
Screw PLN-530016344
...
14
Bracket-Shield PLN-530057554
...
15
Gearbox PLN-530096099
...
16
Shaft-Flex (lower) PLN-530096218
...
17
Kit-Lower Shaft Assy. PLN-530071790
...
18
Screw PLN-530016014
...
19
Screw PLN-530016224
...
20
Limiter-Line PLN-530052285
...
21
Screw PLN-530015814
...
22
Bolt PLN-530015820
...
23
Nut PLN-530091373
...
24
Kit-Shield Assy. (incl. 20,21) PLN-530071765
...
25
Accy--Cutting Head (Incl. 26-29) PLN-952711550
...
26
Assy-Hub/Arbor PLN-530095772
...
27
Spring-Return PLN-530053241
...
28
Retainer-Spool PLN-530401957
...
29
Accy--Spool w/Line PLN-952711551
...
xx
Operator Manual Not Shown PLN-545123431
...
xx
Decal-Shaft Warning Not Shown PLN-530055350
...
xx
Decal-Upper Shaft Warning Not Shown PLN-530056221

PPB1000E Gas Edger Attachment Type 1, Poulan Pro Edger Attachment PPB1000E Type 1

...

No Parts Available for this Schematic

PPB2000T Gas Cultivator Attachment

...

No Parts Available for this Schematic

PPB3000B Gas Blower Attachment

...

No Parts Available for this Schematic

PPB4000C Gas Brushcutter Attachment Type 1, Poulan Pro Brushcutter Attachment PPB4000C Type 1

...

No Parts Available for this Schematic
