Poulan Pro PPB1000E Gas Edger Attachment Type 3

Model: PPB1000E Gas Edger Type 3

Save
 Part Not Listed?Part Not Listed?
product name

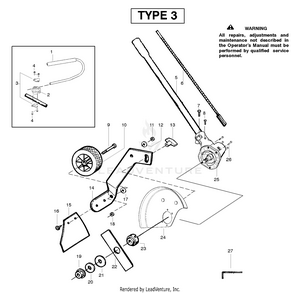

Edger Attachment Assembly Type 3

...
...
1
Kit-Handlebar (incl. grip,cap,decal) PLN-530071394
...
2
Clamp-Handlebar (7/8") PLN-530058766
...
2
Clamp-Handlebar ( 1") PLN-530058765
...
3
Bracket-Clamp PLN-530058563
...
4
Screw PLN-530015886
...
5
Kit-Assy. Driveshaft PLN-545003364
...
6
Flexshaft-Split boom PLN-530096183
...
7
Screw PLN-530016014
...
8
Screw-Alignment PLN-530016224
...
9
Bolt-Shoulder Axle PLN-530015981
...
10
Wheel-4" (rubber) PLN-530095125
...
11
Locknut PLN-530015515
...
12
Washer PLN-530092062
...
13
Knob PLN-530092059
...
14
Bracket-Adj. Wheel PLN-530053009
...
15
Kit-Mud Flap (incl.#16) PLN-530071251
...
16
Fastener-Mud Flap PLN-530053012
...
17
Washer PLN-530092062
...
18
Locknut PLN-530015515
...
19
Nut-Flange (LH.) PLN-530015793
...
20
Washer-Belleville PLN-530016240
...
21
Washer-Flat PLN-530015792
...
22
Accy-7.5" Blade PLN-952711625
...
23
Dustcup PLN-530054623
...
24
Kit-Edger Guard PLN-530071930
...
25
Kit-Gearbox PLN-530071586
...
26
Screw PLN-530016312
...
27
Wrench-Hex (5/32") PLN-530031159
...
xx
Manual Not Shown PLN-545133458
...
xx
Hanger-Attachment Not Shown PLN-530150031
...
xx
Decal-Shaft Warning Not Shown PLN-545005908
...
xx
Decal-Guard Warning Not Shown PLN-545074501
...
...
...
