Poulan Pro PP850PEA Mower

Model: PP850PEA Mower

Save
Part Not Listed?Part Not Listed?

product name

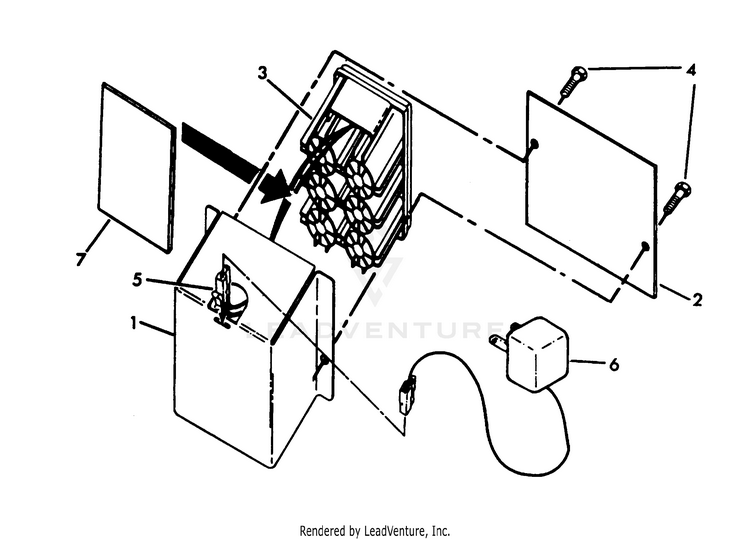

BATTERY MOUNTING

...
...
1
Battery Bracket (AYP part number) PLN-532125286

...
2
Battery Cover (AYP part number) PLN-532125287

...
3
Battery (AYP part number) PLN-532086336

...
4
Hex Washer Head Screw #10-24 x .625 (AYP part number) PLN-532036953

...
5
Connector Mounting Clip (AYP part number) PLN-532086353

...
6
Battery Charger (AYP part number) PLN-532111549

...
7
Battery Pad (AYP part number) PLN-532086649

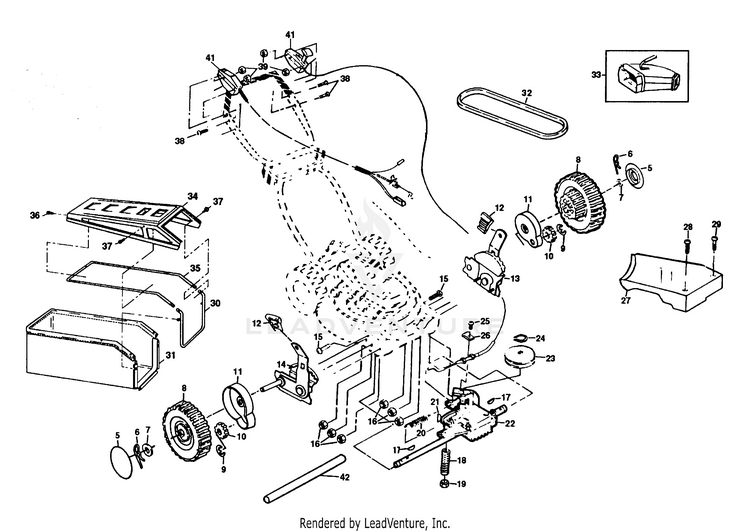

DRIVE ASSEMBLY

...
...
1
Engine Control (AYP part number) PLN-532851098

...
2
NUT 1/4-20 NYLOC PLN-539976978

...

...
6
Retainer Clip (AYP part number) PLN-532085179

...
7
Washer (AYP part number) PLN-532052160

...
8
WHEEL/TIRE 8X1.75 PLN-583602401

...

...
10
Pinion (AYP part number) PLN-532074507

...
11
Dust Cover (AYP part number) PLN-532076401

...
12
SELECTOR KNOB PLN-532701037

...
13
Wheel Adjuster Assembly (Left) (AYP part number) PLN-532851032

...
14
Wheel Adjuster Assembly (Right) (AYP part number) PLN-532851031

...
15
Screw (AYP part number) PLN-874100412

...
16
NUT 1/4-20 NYLOC PLN-539976978

...
17
Woodruff Key #3 (AYP part number) PLN-532065692

...
18
Spring (AYP part number) PLN-532137090


...
20

...
21
Woodruff Key #213 (AYP part number) PLN-532057076

...
22
Gear Case Halves, Upper and Lower (AYP part number) PLN-532048281

...
23
PULLEY KIT PLN-532154753

...
24
Retaining Ring (AYP part number) PLN-532074976

...
25
Pan Head Self-tapping Screw #10-24 (AYP part number) PLN-532750108

...
26
Cable Clamp (AYP part number) PLN-532083700

...
27
Drive Cover (AYP part number) PLN-532083590

...
28
Pan Head Machine Screw #10-24 x 2-3/4 (AYP part number) PLN-532075725

...
29
Pan Head Machine Screw #10-24 x 1-3/4 (AYP part number) PLN-874981028

...
30
Catcher Frame (AYP part number) PLN-532851735

...
31
Grass Catcher PLN-532801779

...
32

...
34
Catcher Top (AYP part number) PLN-532851739

...
35
Tube Catcher (AYP part number) PLN-532851658

...
36
Screw Self-Tapping #10-24 x .625 (AYP part number) PLN-532036953

...
37
Screw Tapping #10-24 x .38 (AYP part number) PLN-532750634

...
38
Machine Screw 1/4-20 x 2-1/8 (AYP part number) PLN-874250434

...
39
NUT.CROWNLOCK.1/4 PLN-873680400

...
41
Drive Control (AYP part number) PLN-532128378

...
42
Drive Shaft, Cover (AYP part number) PLN-532086012

...
xx
Decal (Drive Cover) (AYP part number) Not Shown. PLN-532127942

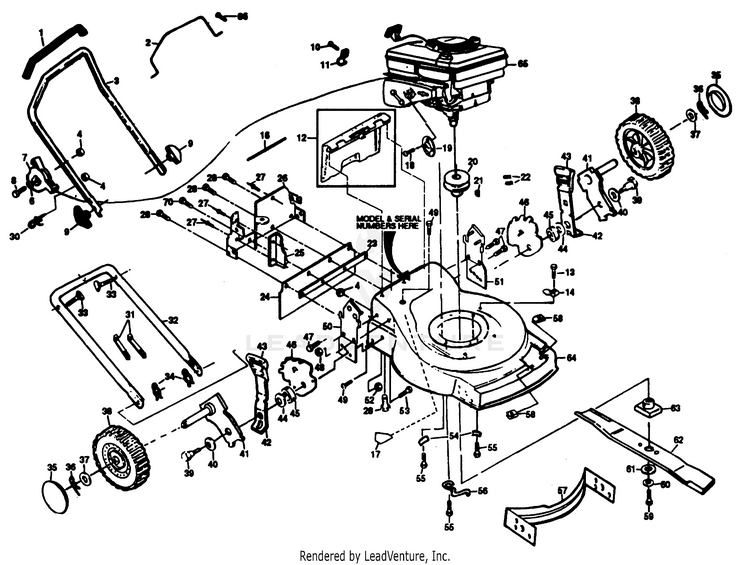

MOWER HOUSING, ENGINE B/S 124707

...
...
1
Handle Grip (AYP part number) PLN-532850724

...
2
Control Bar (AYP part number) PLN-532801775

...
3
Upper Handle (AYP part number) PLN-532125266

...
4
NUT 1/4-20 NYLOC PLN-539976978

...
6
Washer (AYP part number) PLN-532085723

...
7
Throttle Control (AYP part number) PLN-532851461


...
9
KNOB.HANDLE.KIT.SERVICE PLN-532183724

...
10
Screw #10 x 5/8 (AYP part number) PLN-532083816

...
11
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532125078

...
12
Rear Door Kit (AYP part number) PLN-532129898

...
13
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008

...
14
Housing Cable Guide (AYP part number) PLN-532087930

...
16
Hinge Rod (AYP part number) PLN-532851738

...
17
DECAL.CUTFINGER.CE.02 PLN-581579101

...
18
Screw (AYP part number) These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532069485

...
19
Muffler Deflector These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532223290

...
20
Engine Pulley (AYP part number) PLN-532084596

...
21
Hi Pro Key #505 (AYP part number) PLN-532087677

...
22
Set Screw 1/4-20 x 5/16 (AYP part number) PLN-532059708

...
23
Backing Strip (AYP part number) PLN-532125224

...
24
Rear Skirt (AYP part number) PLN-532130444

...
25
Side Baffle (AYP part number) PLN-532125222

...
26
Back Plate (AYP part number) PLN-532125267

...
27
Pop Rivet (AYP part number) PLN-532128415

...
28
Hex Head Tapping Screw 1/4-20 x 1/2 (AYP part number) PLN-532054583

...
30
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788

...
31

...
32
Lower Handle (AYP part number) PLN-532125268

...
33
Handle Bolt PLN-532058714

...
34
Hairpin Cotter (AYP part number) PLN-532051793

...
35
Hubcap (AYP part number) PLN-532800544

...
36
Retainer Clip (AYP part number) PLN-532085179

...
37
Washer (AYP part number) PLN-532052160

...
38
Wheel & Tire Assembly 9.00 x 2.00 (AYP part number) PLN-532851071

...
39
BOLT SHOULDER 3/8 -16X1 PLN-532174719

...
40
Belleville Washer (AYP part number) PLN-532062335

...
41
ARM.ASM.AXLE. PLN-532187930

...
42
Selector Spring (AYP part number) PLN-532125168

...
43
SELECTOR KNOB PLN-532701037

...
44
Washer (AYP part number) PLN-532088348

...
45
Spacer (AYP part number) PLN-532084920

...
46
Wheel Adjusting Bracket (AYP part number) PLN-532139901

...
47
Self-tapping Screw 5/16-18 x 3/4 (AYP part number) PLN-532055187

...
48
NUT.71038.31-18.HEX.NYLOCK PLN-873800500

...
49
Hex Tapping Screw 1/4-20 x 1/2 (AYP part number) PLN-532054583

...
50
Handle Bracket (Right) (AYP part number) PLN-532125269

...
51
Handle Bracket (Left) (AYP part number) PLN-532125270

...
52


...
54
Engine Washer (AYP part number) PLN-532125078

...
55
BOLT 3/8-16X1-1/8 PLN-532150406

...
56
Belt Snubber (AYP part number) PLN-532851000

...
57
Front Baffle (AYP part number) PLN-532132255

...
58
Speed Nut (U Type) (AYP part number) PLN-532075449

...
59
Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8 PLN-532851084

...
60
SLW 3/8 STD PLN-539990118

...
61
Hardened Washer (AYP part number) PLN-532851074

...
62
BLADE.22.MULCH.STANDARD PLN-532406713

...
63
ADAPTOR.BLADE.7/8 PLN-581547901

...
64
Lawn Mower Housing Kit (Inc. 17) PLN-532130831

...
66
Screw #10-24 x .625 (AYP part number) PLN-532026953

...
70
Screw, Hex, Head Machine 1/4-20 (AYP part number) PLN-532086779

...
xx
Rear Door Seal (AYP part number) Not Shown. PLN-532129925

...
xx
Operator's Manual (English) Not Shown. PLN-532801778

...
xx
Decal Elec. Start (Engine) (AYP part number) Not Shown. PLN-532851101
...
...
...
