Poulan Pro PP722SKA Mower

Model: PP722SKA Mower

Save
Part Not Listed?Part Not Listed?

product name

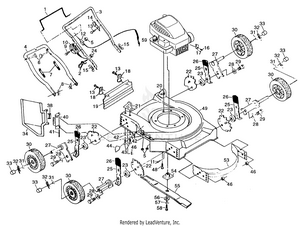

MOWER ASSEMBLY, ENGINE B/S 10A902

...
...
1
Control Bar (AYP part number) PLN-532086902

...
2
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788

...
3
UPPER HANDLE PLN-532125338

...
4
HANDLE.LOWER.BLACK PLN-532157081

...
5
NUT 1/4-20 NYLOC PLN-539976978

...
6
KNOB.HANDLE.KIT.SERVICE PLN-532183724

...
7

...
8
Hairpin Cotter (AYP part number) PLN-532051793

...
9
SCREW.PAN.HEAD PLN-532158755

...
10
Throttle Control (AYP part number) PLN-532700644

...
11
Pop Rivet (AYP part number) PLN-532128415

...
12
Engine Zone Control Cable PLN-532130861

...
13
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008

...
14
BRACKET.UPSTOP PLN-532850733

...
15
Wing Nut (AYP part number) PLN-532128638

...
16
Screw #10 x 5/8 (AYP part number) PLN-532083816

...
17
WASHER.ENGINE.BZP These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532125078

...
18
Skirt Bracket (AYP part number) PLN-532125207

...
19
Rear Deflector (AYP part number) PLN-532140540

...
20
Handle Bracket Assembly (Left) (AYP part number) PLN-532140466

...
21
Handle Bracket Assembly (Right) (AYP part number) PLN-532140465

...
22
Wheel Adjusting Bracket (AYP part number) PLN-532139901

...
23
Spacer (AYP part number) PLN-532084920

...
24
NUT.CROWNLOCK.1/4 PLN-873680400

...
25
Selector Spring (AYP part number) PLN-532141730

...
26
Selector Knob (AYP part number) PLN-532087877

...
27
ARM.ASM.AXLE. PLN-532187930

...
28
Belleville Washer (AYP part number) PLN-532062335

...
29
BOLT SHOULDER 3/8 -16X1 PLN-532174719

...
30
Wheel & Tire Assembly (AYP part number) PLN-532752005

...
31
Washer (AYP part number) PLN-532052160

...
32
Retainer Clip (AYP part number) PLN-532085179

...
33
Hubcap (AYP part number) PLN-532800090

...
34
Discharge Guard (AYP part number) PLN-532145282

...
38
SPRING HINGE PLN-532152186

...
40
Housing Bracket Assembly (AYP part number) PLN-532147775

...
41
Hinge Rod (AYP part number) PLN-532147286

...
42
Flat Washer (AYP part number) PLN-532059289

...
43
Screw 5/16-18 x 3/4 (AYP part number) PLN-532055187

...
44
DECAL.CUTFINGER.CE.02 PLN-581579101

...
46

...
48
BOLT 3/8-16X1-1/8 PLN-532150406

...
49
Mower Housing (Incl. Ref. #44) PLN-532702159

...
53
Front & Rear Baffle (rear not shown) (AYP part number) PLN-532139771

...
54
ADAPTOR.BLADE.7/8 PLN-581547901

...
55
Blade 22" (AYP part number) PLN-532141114

...
56
Hardened Washer (AYP part number) PLN-532851074

...
57
SLW 3/8 STD PLN-539990118

...
58
Hex Head Screw 3/8-24 x 1-3/8 (Grd. 8) PLN-532851084

...
59
Engine - Briggs & Stratton Model No. 10A902, Operator's Manual (English) (AYP part number) Not Shown. PLN-532145655

...
59
Engine - Briggs & Stratton Model No. 10A902, Operator's Manual (French) (AYP part number) Not Shown. PLN-532145656

...
59
Engine - Briggs & Stratton Model No. 10A902, Replacement Parts Manual Not Shown. PLN-532147911

...
59
Engine - Briggs & Stratton Model No. 10A902, Grass Catcher (AYP part number) PLN-GCK2200

...
59
Engine - Briggs & Stratton Model No. 10A902, Mulcher Kit (AYP part number) PLN-MK1000
...
...
...
