Poulan Pro PP722L Mower

Model: PP722L Mower

Save
Part Not Listed?Part Not Listed?
product name

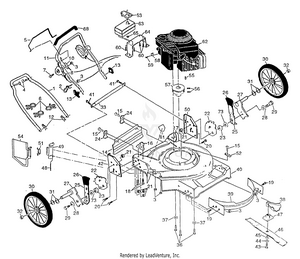

Assembly

...
...
1
HANDLE.LOWER.21.FWGD.BLACK PLN-532175245

...
2
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788

...
3
NUT 1/4-20 NYLOC PLN-539976978

...
4
KNOB.HANDLE.KIT.SERVICE PLN-532183724

...
5
BAIL.CONT.WIRE.DLX.COM.BLK PLN-583678201

...
6

...
7
SCREW.PAN.HEAD PLN-532158755

...
8
Throttle Control PLN-532700417

...
10
Engine Zone Cable PLN-532130861

...
11
Upper Handle (AYP part number) PLN-532146883

...
12
Hairpin Cotter (AYP part number) PLN-532051793

...
13
KNOB.HANDLE.KIT.SERVICE PLN-532183724

...
14
Rear Skirt (AYP part number) PLN-532140539

...
15
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008

...
16
KIT HANDLE BRACKET LH/RH PLN-532192983

...
17
Handle Bracket Assembly (Left) (AYP part number) PLN-532153027

...
18
BOLT, 5/16-18 X 1 3/4 PLN-532171877

...
19
Flat Machine Screw 1/4-20 x 3/4 (AYP part number) PLN-874100412

...
20
Hex Head Bolt 3/8-16 x 3/4 (AYP part number) PLN-874760612

...
21

...
22
Wheel Adjusting Bracket (R.R.) (AYP part number) PLN-532139901

...
23
Spacer (AYP part number) PLN-532084920

...
24
Skirt Bracket (AYP part number) PLN-532125207

...
25
Selector Spring (AYP part number) PLN-532141730

...
26
SELECTOR KNOB PLN-532701037

...
27
Axle Arm Assembly (AYP part number) PLN-532125373

...
28
WASHER.CURVED.CYLINDRICAL PLN-532401630

...
29
BOLT SHOULDER 3/8 -16X1 PLN-532174719

...
30
Wheel & Tire Assembly (Rear) (AYP part number) PLN-532107620

...
31
KIT.O-RING/WASHER PLN-532428450

...
32
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148

...
33
Rod Support (AYP part number) PLN-532850709

...
35
Fuel Tank Cap (AYP part number) PLN-532087277

...
36
Thread Rolling Screw 3/8-16 x 1 (AYP part number) PLN-532150406

...
37
Engine Washer (AYP part number) PLN-532125078

...
38
KIT.SHIELD.DEBRIS.21.RWGD.EZ PLN-532048283

...
39
Front Baffle PLN-532132352

...
40
Mower Housing Kit Includes Key No. 61 PLN-532153550

...
41
Screw (AYP part number) PLN-532054583

...
42
Wheel Support Bracket R.H. (AYP part number) PLN-532125365

...
43
Hex Head Screw 3/8-24 x 1-3/8 Gr. 8 PLN-532851084

...
44
SLW 3/8 STD PLN-539990118

...
45
Hardened Washer (AYP part number) PLN-532851074

...
46
22" Blade (AYP part number) PLN-532141114

...
47
ADAPTOR.BLADE.7/8 PLN-581547901

...
48
Hinge Rod (AYP part number) PLN-532147286

...
49
Housing Bracket (AYP part number) PLN-532147775

...
50
Wheel Support Bracket L.H. (AYP part number) PLN-532125363

...
51
SPRING HINGE PLN-532152186

...
52
Guide C(ip (AYP part number) PLN-532087930

...
53
Deflector (AYP part number) PLN-532073459

...
54
Discharge Guard (AYP part number) PLN-532145282

...
55
Hi-Pro Key (AYP part number) PLN-532087677

...
56
Set Screw (AYP part number) PLN-532059708

...
57
Engine Pulley (AYP part number) PLN-532084596

...
58
Cable Clamp (AYP part number) These parts must be purchased through an authorized Briggs & Stratton Dealer. PLN-532111190

...
59
Screw #10 x 5/8 (AYP part number) PLN-532083816

...

...
61
DECAL.CUTFINGER.CE.02 PLN-581579101

...
63
Fuel Tank (AYP part number) PLN-532073427

...
64
Fuel Tank Bracket (AYP part number) PLN-532153604

...
65
Fuel Line Clamp (AYP part number) PLN-532074486

...
68
Handle Grip (AYP part number) PLN-532850724

...
73
Flat Washer 3/8 (AYP part number) PLN-532088348

...
xx
Rear Baffle Not Shown PLN-532083976

...
xx
Operator's Manual (English) (AYP part number) PLN-532145658

...
xx
Operator's Manual (French) (AYP part number) PLN-532145659

...
xx
Repair Part's Manual PLN-532153549

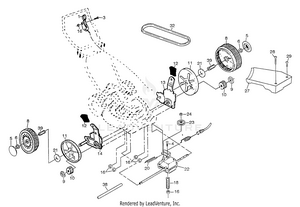

Drive Assembly

...
...
1
Drive Control (AYP part number) PLN-532146323

...
3
SCREW.PAN.HEAD PLN-532158755

...
4
Carriage Bolt 1/4-20 x 2 (AYP part number) PLN-532700875

...
5
Hubcap (AYP part number) PLN-532077400

...
6
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409149

...
8
Wheel & Tire Assembly (AYP part number) PLN-532750851

...
9
E-ring (AYP part number) PLN-812000058

...
10

...
11
COVER.DUST.WHEEL.INNER.WALK PLN-581840401

...
12
SELECTOR KNOB PLN-532701037

...
13
Wheel Adjuster Assembly (Left) (AYP part number) PLN-532152015

...
14
Wheel Adjuster Assembly (Right) (AYP part number) PLN-532152016

...
16
NUT 1/4-20 NYLOC PLN-539976978

...
18
Spring (AYP part number) PLN-532137090

...
20

...
21
Washer 1/2 x 1-1/2 x .134 (AYP part number) PLN-532067725

...
22
Gear Case Assembly (AYP part number) PLN-532702510

...
23
Drive Pulley (AYP part number) PLN-532137052

...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148

...
27
Drive Cover PLN-532137080

...
28
Pan Head Tapping Screw #10-24 x 2-3/4 (AYP part number) PLN-532146072

...
29
Pan Head Tapping Screw #10-24 x 1-3/4 (AYP part number) PLN-532149746

...
32
KIT.SERVICE.BELT/SPRING. PLN-532157769

...
38
Drive Shaft Cover (AYP part number) PLN-532086012

...
39
Wheel Bushing (AYP part number) PLN-532088446

...
xx
Drive Cover Decal PLN-532146598

...
xx
Grass Catcher Available (AYP part number) Accessory - not included with Lawn Mower. PLN-GCK2200

...
xx
Mulcher Kit Available (AYP part number) Accessory - not included with Lawn Mower. PLN-MK1000

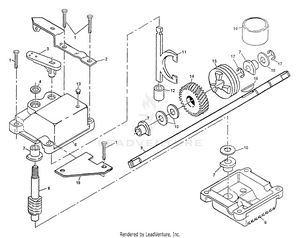

Gear Case Assembly

...
...
1
Screw, Tapping 1/4-20 x 1-1/4 (AYP part number) PLN-817490416

...
2
Bracket, Adjusting (AYP part number) PLN-532137055

...
3
Shifter (AYP part number) PLN-532137053


...
6
Gear Case Halves, Upper and Lower (AYP part number) Includes Key #4, 5 and 7 PLN-532048373

...
7

...
8
SHAFT GEAR WORM PLN-532183863

...
9
Drive Shaft (AYP part number) PLN-532137077

...
10
Washer, Hardened (AYP part number) PLN-532057079

...
11
Yoke, Clutch (AYP part number) PLN-532131484

...
12
Bushing (AYP part number) PLN-532700343

...
13
Plug (AYP part number) PLN-532086447

...
14
Gear, Helical (AYP part number) PLN-532137050

...
15
Jaw, Clutch (AYP part number) PLN-532750436

...
16
Grease (AYP part number) PLN-532750369

...
17

...
18
Key, Hi-Pro (AYP part number) PLN-532850848

...
19
Spring Bracket (AYP part number) PLN-532125441

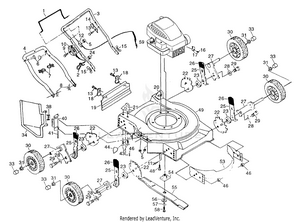

Rotory Lawn Mower

...
...
1
Control Bar (AYP part number) PLN-532086902

...
2
GUIDE.ROPE.STD.BLK.ZIN PLN-532194788

...
3
Upper Handle (AYP part number) PLN-532153553

...
4
HANDLE.LOWER.BLACK PLN-532157081

...
5
NUT 1/4-20 NYLOC PLN-539976978

...
6
KNOB.HANDLE.KIT.SERVICE PLN-532183724

...
7

...
8
Hairpin Cotter (AYP part number) PLN-532051793

...
9
SCREW.PAN.HEAD PLN-532158755

...
10
Throttle Control (AYP part number) PLN-532700644

...
11
Pop Rivot (AYP part number) PLN-532128415

...
12
Engine Zone Control Cable PLN-532130861

...
13
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) PLN-817021008

...
14
BRACKET.UPSTOP PLN-532850733

...
15
Wing Nut (AYP part number) PLN-532128638

...
16
Screw #10 x 5/8 (AYP part number) PLN-532083816

...
17
Cable Clamp (AYP part number) These parts must be purchased through an authorized Briggs & Stratton dealer. PLN-532111190

...
18
Skirt Bracket (AYP part number) PLN-532125207

...
19
Rear Deflector (AYP part number) PLN-532140540

...
20
Handle Bracket Assembly (Left) (AYP part number) PLN-532153027

...
21
KIT HANDLE BRACKET LH/RH PLN-532192983

...
22
Wheel Adjusting Bracket (AYP part number) PLN-532139901

...
23
SPACER.HEIGHT.ADJUSTER PLN-532401629

...
24
NUT.CROWNLOCK.1/4 PLN-873680400

...
25
Selector Spring (AYP part number) PLN-532141730

...
26
Selector Knob (AYP part number) PLN-532087877

...
27
ARM.AXLE.ASM.BZP PLN-532145935

...
28
Belleville Washer (AYP part number) PLN-532062335

...
29
BOLT SHOULDER 3/8 -16X1 PLN-532174719

...
30
Wheel & Tire Assembly (AYP part number) PLN-532752005

...
31
NUT.HEX.FLANGE.3/8-16.LOCKNUT PLN-532409148

...
33
Hubcap (AYP part number) PLN-532800090

...
34
Discharge Guard (AYP part number) PLN-532145282

...
38
SPRING HINGE PLN-532152186

...
40
Housing Bracket Assembly (AYP part number) PLN-532147775

...
41
Hinge Rod (AYP part number) PLN-532147286

...
43
BOLT, 5/16-18 X 1 3/4 PLN-532171877

...
44
DECAL.CUTFINGER.CE.02 PLN-581579101

...
46

...
48
Hex Head Thread Rolling Screw 3/8-16 x 1 (AYP part number) PLN-532150406

...
49
Mower Housing Incl. Ref. #44 PLN-532702159

...
53
Front & Rear Baffle (AYP part number) Rear not shown PLN-532139771

...
54
ADAPTOR.BLADE.7/8 PLN-581547901

...
55
Blade 22" (AYP part number) PLN-532141114

...
56
Hardened Washer (AYP part number) PLN-532851074

...
57
SLW 3/8 STD PLN-539990118

...
58
Hex Head Screw 3/8-24 x 1-3/8 (Grd. 8) PLN-532851084

...
xx
Operator's Manual (English) (AYP part number) PLN-532145655

...
xx
Operator's Manual (French) (AYP part number) PLN-532145656

...
xx
Replacement Parts Manual PLN-532153325

...
xx
Grass Catcher (AYP part number) Available Accessory - Not included with mower. PLN-GCK2200

...
xx
Mulcher Kit (AYP part number) Available Accessory - Not included with mower.3 PLN-MK1000
...
...
...
