Poulan Pro PP655 Gas Saw, 655 Gas Saw

Model: PP655 Gas Saw, 655 Gas Saw

Back To Assemblies

Save Part Not Listed?
product name

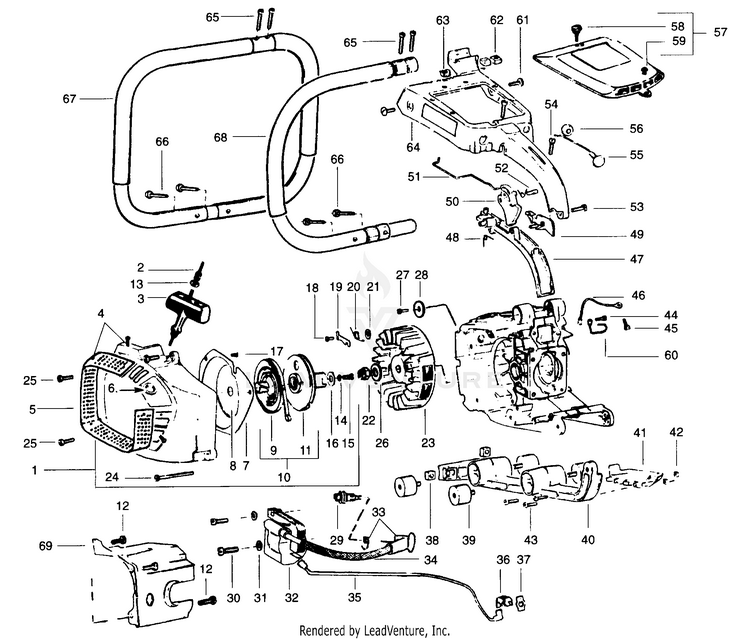

HANDLE & EXTERNAL POWER UNIT

...
...
1
Starter Ass'y. PLN-5074766056
...
2
Starter Cord PLN-507476562
...
3
Starter Handle PLN-5074314418
...
4
Fan Housing Assy(incl. 2-5, 7, 8,10, & 13-17) PLN-530047206
...
5
Air Inlet Screen PLN-507475583
...
6
Eyelet PLN-507430716
...
7
Baffle Plate PLN-507430576
...
8
Washer PLN-507430812
...
9
KIT STARTER SPRING PLN-545008004
...
10
Pulley & Spring Kit PLN-507476606
...
11
Starter Pulley PLN-507476601
...
12
Screw PLN-507431649
...
13
Washer PLN-507431640
...
14
Lockwasher PLN-507431692
...
15
Screw PLN-507431694
...
16
Washer PLN-507428105
...
17
Screw PLN-507431695
...
18
Screw PLN-507430877
...
19
Pawl PLN-507430876
...
20
Pawl Spring PLN-507431416
...
21
Washer PLN-507430878
...
22
Nut PLN-507430800
...
23
Flywheel PLN-507476638
...
24
Screw PLN-507433159
...
25
Screw PLN-507433158
...
26
Washer PLN-507429851
...
27
Screw PLN-507433611
...
28
Washer PLN-507433488
...
29
BPMR7A NGK SPARK PLUG PLN-503235111
...
30
Screw PLN-507431705
...
31
Washer PLN-507431640
...
32
Module & Switch Wire Ass'y. (Incl. 35) PLN-507476339
...
33
Spark Plug Boot & Clip PLN-507476096
...
34
Sleeve PLN-507430694
...
35
Switch Wire PLN-507433248
...
36
Grounding Switch PLN-507475623
...
37
Switch Plate PLN-530038387
...
38
Nut PLN-507431655
...
39
Shock Absorber PLN-507430197
...
40
Bottom Frame PLN-5074305758
...
41
Rear Hand Guard PLN-50743240418
...
42
Nut PLN-507431078
...
43
Screw PLN-507431685
...
44
Plate Screw PLN-507431675
...
45
Terminal Screw PLN-507429266
...
46
Ground Wire PLN-507430990
...
47
Lower Grip Ass'y. PLN-507473935
...
48
Spring PLN-507431092
...
49
Throttle Lockout Lever PLN-507430840
...
50
Throttle Trigger PLN-507430327
...
51
Throttle Link PLN-507430830
...
52
Throttle Pin PLN-507430399
...
53
Screw PLN-507431669
...
54
Screw PLN-507431705
...
55
Choke Knob & Wire Ass'y. PLN-507430202
...
56
Grommet PLN-507429650
...
57
Top Cover Ass'y. (Incl. 58 & 59) PLN-5074757218
...
58
Knob Cover PLN-507432817
...
59
Bumper PLN-507430282
...
60
Clip PLN-507432140
...
61
Screw PLN-507432634
...
62
Nut PLN-507431655
...
63
Nut PLN-507430203
...
64
Top Frame PLN-5074315548
...
65
Screw PLN-507433184
...
66
Screw PLN-507431687
...
67
Front Handle-Full PLN-507476485
...
68
Front Handle-Half PLN-507476484
...
69
Cylinder Shroud PLN-507432337
