product name

Poulan Pro PP655 Gas Saw, 655 Gas Saw

Model: PP655 Gas Saw, 655 Gas Saw

Back To Assemblies

Save Part Not Listed?
product name

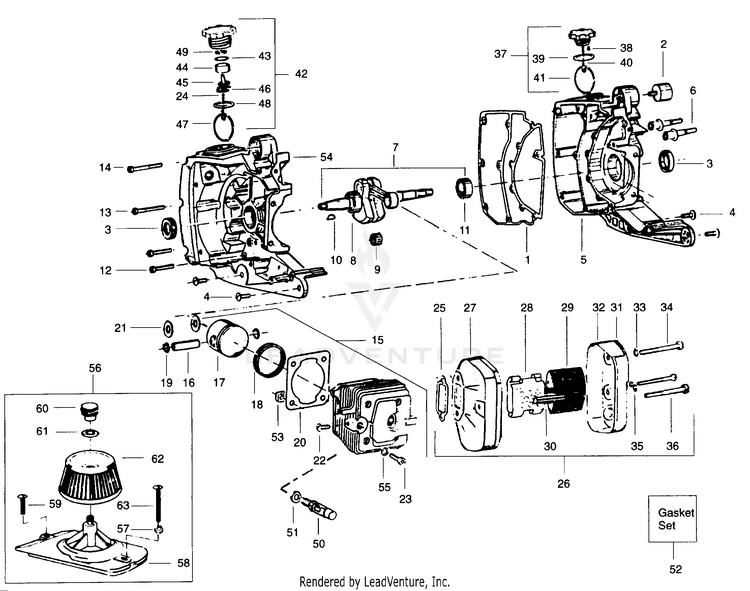

INTERNAL POWER UNIT

...
...
1
Crankcase Gasket PLN-507430573
...
2
Shock Absorber PLN-507430197
...
3
Seal PLN-507428746
...
4
Screw PLN-507432634
...
5
C'Case & Stud Ass,y. (Incl. 6) PLN-5074765391
...
6
Bar Mounting Studs PLN-507433228
...
7
Crankshaft Ass'y. (incl. 8-11) PLN-507476542
...
8
Main Bearing PLN-507433355
...
9
Bearing PLN-507431408
...
10
Flywheel Key PLN-507432210
...
11
Bearing PLN-507433508
...
12
Screw PLN-507431650
...
13
Screw PLN-507431690
...
14
Screw PLN-507431658
...
15
Cylinder & Piston Kit (Incl. 9, 20, 17) PLN-507476630
...
18
Piston Ring Set PLN-507476624
...
20
Cylinder Gasket PLN-507433226
...
21
Thrust Washer PLN-507433940
...
22
Plate Screw PLN-507431675
...
23
Screw PLN-507431691
...
24
Bead Chain PLN-507431370
...
25
Muffler Gasket PLN-507430684
...
27
Muffler Body PLN-5074759848
...
28
Muffler Channel PLN-507433096
...
29
Muffler Screen PLN-507433104
...
30
Spacer PLN-507430835
...
31
Muffler Cover PLN-5074764298
...
32
Heat Shield Ass'y. PLN-5074761068
...
33
Lockwasher PLN-507431686
...
34
Screw PLN-530015718
...
35
Lockwasher PLN-507431683
...
36
Screw PLN-507430993
...
37
Oil Cap Ass'y. PLN-507475168
...
38
Screw PLN-507428335
...
39
O-Ring PLN-507433143
...
40
Bead Chain PLN-507427690
...
41
Retainer PLN-507431369
...
42
Gas Cap Ass'y. PLN-530047186
...
43
Gasket PLN-507427273
...
44
Spacer PLN-507431003
...
45
Umbrella Valve PLN-530026383
...
46
Gas Cap Cover PLN-507427278
...
47
Retainer PLN-507431368
...
48
O-Ring PLN-507429946
...
49
Disc PLN-507427993
...
50
Decompression Valve PLN-507475356
...
51
Washer PLN-507432302
...
52
Gasket Set (incl. 5,20 & 25, 39 in "CLUTCH, OIL PUMP..", 41 & 44 in "CARBURETOR" PLN-507475492
...
53
Nut PLN-507431655
...
54
C'Case Half M/S PLN-5074332271
...
55
Washer PLN-507431706
...
56
Air Filter Kit-Optional PLN-507476467
...
57
Washer PLN-507431688
...
58
Filter Base Ass'y. PLN-507476463
...
59
Screw PLN-507433468
...
60
Knob PLN-507433470
...
61
Washer PLN-507433576
...
62
Filter Element PLN-507476468
...
63
Screw PLN-507433469
...
0
Operator Manual Not Shown. PLN-507433715
