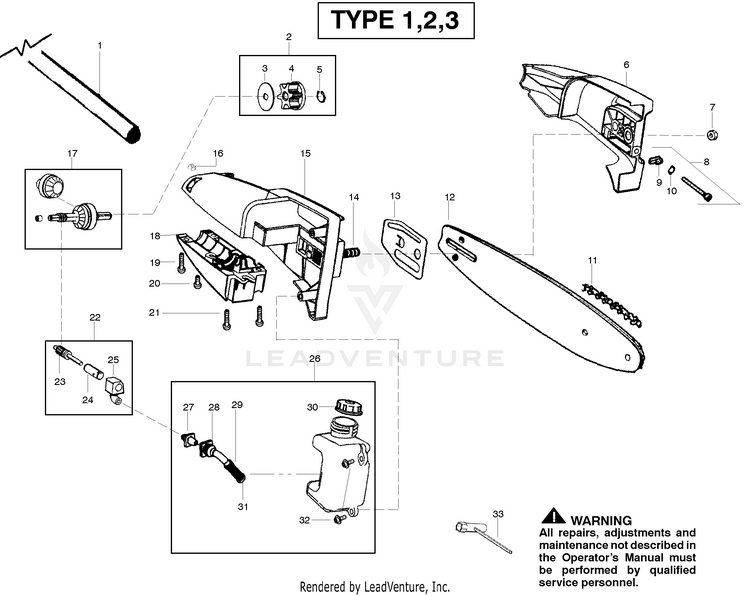

Poulan Pro PP446ET Gas Pole Pruner Type 3

Model: PP446ET Pole Pruner Type 3

Back To Assemblies

Save Part Not Listed?
product name

Cutting Equipment

...
...
1
Assy-Driveshaft PLN-545008090
...
2
Kit-Sprocket Assy. (incl. 3,4,5) PLN-530071647
...
3
Washer PLN-530056521
...
4
Sprocket PLN-530056520
...
5
Retainer-Sprocket PLN-530056563
...
6
Assy-Bar Clamp (incl. #8) PLN-530057100
...
7
Nut-Bar Mounting PLN-530015917
...
8
Kit-Bar Adjust (incl. 9,10) PLN-530069611
...
9
Pin-Bar Adjust PLN-530015826
...
10
Retainer-Bar Adjust PLN-530038593
...
11
ACCY P/PP CHN 8" 90JG34DL 3/8 PLN-581562501
...
12
Bar-8" PLN-530044908
...
13
Plate-Bar pad PLN-530056523
...
14
Bolt-Bar PLN-530016133
...
15
Hsg.-Upper (incl. #14) PLN-530056513
...
16
Nut PLN-530016284
...
17
Kit-Gear Assy PLN-530071646
...
18
Hsg.-Lower PLN-530056514
...
19
Screw PLN-530016312
...
20
Screw-Align PLN-530015805
...
21
Screw PLN-530015886
...
22
Kit-Oil Assy (incl. 23,24,25) PLN-530071645
...
23
Assy-Gear Plunger PLN-530053764
...
24
Barrel PLN-530053765
...
25
Block-Oil PLN-530056522
...
26
ASSY OIL TANK (incl. 27,28,29,30,31) PLN-530150266
...
27
Fitting-Oil Line PLN-530056524
...
28
Intake-Oil Line PLN-530021160
...
29
Filter-Oil PLN-530056533
...
30
CAP OIL PLN-530150552
...
31
Filter-Oil PLN-530056533
...
32
Screw PLN-530015843
...
33
Wrench-Bar PLN-530031163
