Poulan Pro PP425 Gas Saw

Model: PP425 Gas Saw, 425 Gas Saw

Save
 Part Not Listed?Part Not Listed?
product name

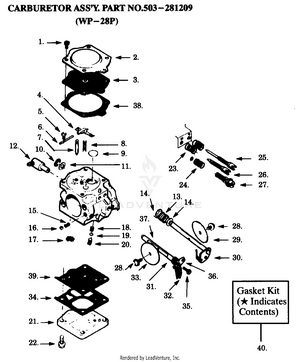

CARBURETOR WP-28P

...
...
1
Screw PLN-503108701
...
2
Cover PLN-505316702
...
3
Diaphragm PLN-505316715
...
4
Metering Lever PLN-505316734
...
5
Screw PLN-505316717
...
6
Pin PLN-505316731
...
7
Needle PLN-503117001
...
8
Spring PLN-505316723
...
9
Ring PLN-503483101
...
10
Clip PLN-502119801
...
11
Washer PLN-506028301
...
12
Lever PLN-503483801
...
13
Spring Return PLN-503483401
...
14
Bushing PLN-502103101
...
15
Spring PLN-503117701
...
16
Ball PLN-503117101
...
17
Filter PLN-501666101
...
18
Spring PLN-501468401
...
19
Washer PLN-503404101
...
20
Screw PLN-503404301
...
21
Cover-Pump PLN-503482501
...
22
Screw PLN-503117501
...
23
Needle Spring-Low Speed PLN-530035293
...
24
Spring PLN-505316721
...
25
NEEDLE PLN-574871601
...
26
Needle-High PLN-503483601
...
27
Idle Screw PLN-503483301
...
28
Screw PLN-530035015
...
29
Valve PLN-503482701
...
30
Shaft Ass'y. PLN-503482601
...
31
Spring PLN-503483501
...
32
Lever PLN-503484001
...
33
Valve PLN-505316707
...
34
Gasket-Pump PLN-503117201
...
35
Screw PLN-503192201
...
36
Lever PLN-503482901
...
37
Choke Shaft PLN-503482801
...
38
Gasket PLN-501467501
...
39
Diaphragm-Pump PLN-503117301
...
40
Gasket Kit (Inc. 3,4,7,8,17,34,38,39) PLN-503088401

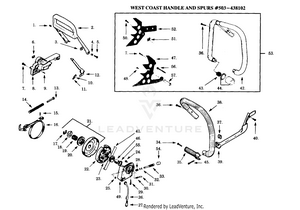

HANDLE ASSEMBLY

...
...
1
Pin PLN-721430350
...
2
Actuator PLN-506093802
...
3
Washer PLN-503234502
...
4
Bushing PLN-503436101
...
5
Screw PLN-503200225
...
6
E-Clip PLN-735311020
...
7
Screw PLN-503200216
...
8
Brake Housing PLN-506093404
...
9
Pin PLN-720127050
...
10
Block PLN-503436701
...
11
Spring PLN-503436501
...
12
Actuator Arm PLN-503436901
...
13
Pin PLN-503435801
...
14
Spring PLN-503408101
...
15
Pin PLN-720123500
...
16
Band PLN-506094502
...
17
E-Clip PLN-503272101
...
18
Cup Washer PLN-503752401
...
19
Clutch Bearing PLN-503432001
...
20
68210/RIM PLN-640200214
...
20
Rim-3/8"x8T PLN-505303661
...
21
Clutch Drum Ass'y. (Incl. 17-20) PLN-503438401
...
22
Clutch Ass'y. PLN-503524601
...
23
Clutch Spring PLN-503471801
...
24
Screw PLN-503202516
...
25
Seal Ring PLN-501288501
...
26
Oil Pickup Tube PLN-503426701
...
27
Oil Pickup PLN-501544102
...
28
Spring PLN-501615801
...
29
Adjusting Screw PLN-503421301
...
30
Spring PLN-503422401
...
31
Pin PLN-503421401
...
32
Washer PLN-503230054
...
33
Pump Piston PLN-503421202
...
34
Screw PLN-503210632
...
35
Spring PLN-503428201
...
36
Screw PLN-503200230
...
37
NUT PLN-503226504
...
38
Handlebar PLN-503425802
...
39
Brace PLN-503425102
...
40
Screw PLN-503210619
...
41
Worm Gear PLN-503723601
...
42
Handlebar PLN-503435702
...
43
Mount PLN-504125014
...
44
Spacer PLN-503437401
...
45
Screw PLN-503200235
...
46
Bushing PLN-503764501
...
47
Inner Spur PLN-503434201
...
48
SCREW M5 X 10 PLN-503200710
...
49
Oil Pump Ass'y (Incl. 25, 28-33, & 54) PLN-503421006
...
50
Screw PLN-503200212
...
51
NUT PLN-503226504
...
52
Outer Spur PLN-503434301
...
53
Wrap Around Handlebar Kit (Incl. 7, 36, 42-44, 47, 48, 50-52, 56 & 57,) PLN-503438102
...
54
Dust Shield PLN-503624901
...
55
Washer PLN-503230014
...
56
Screw PLN-503200265
...
57
Spacer PLN-503132802
...
0
Winter Kit Not Shown. PLN-503434402
...
0
Chain Brake Ass'y. (Incl. 1, 2, 6, 8-16) Not Shown. PLN-506094406
...
0
Air Box Post Repair Kit Not Shown. PLN-503427201

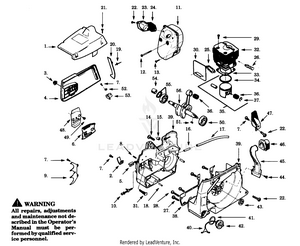

POWER UNIT

...
...
1
Model 425 PLN-503766902
...
1
Model 505 PLN-503766901
...
2
Chain Catcher PLN-501686801
...
3
Nut PLN-503220001
...
4
Bar Clamp (Incl.20) PLN-506093101
...
5
Chain Pad PLN-501517201
...
6
Bar Plate-Inner PLN-501814801
...
7
Screw PLN-503200216
...
8
Vent Pin PLN-721613800
...
9
Spur PLN-503426601
...
10
Chain Adjuster PLN-501537101
...
11
Muffler Ass'y. (Incl. 22-24) PLN-503713705
...
12
Screw PLN-725538855
...
13
Screw PLN-503200320
...
14
Screw PLN-503200225
...
15
Bushing, Rubber PLN-503587402
...
16
Fitting PLN-503424301
...
17
Fuel Line PLN-501768322
...
18
Crankcase Pin PLN-501270801
...
19
Pop Rivet PLN-501608201
...
20
Deflector PLN-506093301
...
21
Screw PLN-503203219
...
22
SCREW M5 X 10 PLN-503200710
...
23
Exhaust Deflector PLN-503435401
...
24
Spark Arrestor PLN-503435501
...
25
Gasket PLN-503428702
...
26
Decompression Valve (Model 505 only) PLN-503715301
...
27
Screw PLN-503200245
...
28
Screw PLN-503200265
...
29
Screw PLN-503200220
...
30
Heat Shield PLN-503437901
...
31
Bar Stud PLN-501815701
...
32
Model 425 PLN-503437504
...
32
Model 505 PLN-503723402
...
33
Gasket PLN-503428601
...
34
Model 425 (1 ring) PLN-503289015
...
34
Model 505 (2 rings) PLN-503289031
...
35
Model 425 PLN-503437702
...
35
Model 505 PLN-503723502
...
36
SUPPORT BUSHING PLN-503255601
...
37
Keeper PLN-737431200
...
38
Gasket PLN-503428501
...
39
Crankcase Ass'y (Incl. 2, 8, 16, 50, & 55) PLN-503420005
...
40
Oil Cap Retainer PLN-503578901
...
41
"O" Ring PLN-501626801
...
42
Oil Cap Ass'y. (Incl. 40-41) PLN-501626601
...
43
Oil Seal PLN-505275719
...
44
Screw PLN-503202512
...
45
Super Clean Duct PLN-503553601
...
46
Grommet PLN-503553701
...
47
Mount Shock PLN-503433701
...
48
Bar Plate-Outer PLN-501444501
...
49
Screw PLN-503212806
...
50
Crankshaft Bearing PLN-738220225
...
51
Woodruff Key PLN-735880600
...
52
Washer PLN-503230035
...
53
Rear Chain Catcher PLN-503554101
...
54
Spacer PLN-503764501
...
55
Bearing w/Seal PLN-503252002
...
56
Crankshaft Ass'y (Incl. 36, 50, 51 & 55) PLN-506088603

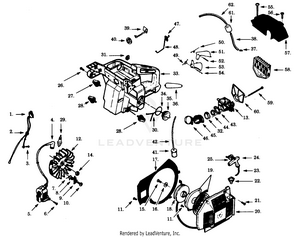

STARTER & SHROUD

...
...
1
Switch Ass'y. PLN-503427001
...
2
Grommet PLN-501271302
...
3
Screw PLN-503202512
...
4
Plug Boot PLN-501485402
...
5
Model 425 PLN-503620203
...
5
Model 505 PLN-503620502
...
6
Screw PLN-503202520
...
7
Starter Dog Spring PLN-501673501
...
8
Washer PLN-503230042
...
9
Starter Dog PLN-501673201
...
10
Screw PLN-501819901
...
11
Screw PLN-503212810
...
12
Flywheel Ass'y (Incl. 7-10) PLN-503511503
...
13
Carburetor PLN-503281209
...
14
Nut PLN-503220001
...
15
Screw PLN-503212716
...
16
Washer PLN-503234302
...
17
Air Baffle PLN-503423001
...
18
Starter Pulley PLN-503432105
...
19
Starter Spring PLN-503431901
...
20
Fan Housing (Incl. 11, 15-18, 22-25) 503432301-fan hsg only PLN-503432503
...
21
Screw PLN-503203419
...
22
Eyelet PLN-501630601
...
23
Rope PLN-501201502
...
24
Handle PLN-504654203
...
25
Washer PLN-503142902
...
26
Screw PLN-725536855
...
27
Spring Isolator PLN-503514802
...
28
Spring Isolator PLN-503514801
...
29
Spark Plug PLN-503235109
...
30
Oil Cap Retainer PLN-503578901
...
31
NUT PLN-503226504
...
32
Inner Ring PLN-503431401
...
33
Tank & Handle Ass'y. (Includ. 31, 41, & 42) PLN-503430315
...
34
O Ring PLN-501278201
...
35
TANK CAP PLN-501431402
...
36
Insert PLN-503427502
...
37
Filter PLN-504357201
...
38
Hose PLN-501768304
...
39
Choke Knob PLN-503432402
...
40
Grommet PLN-501527801
...
41
Fuel Filter PLN-503443201
...
42
Fuel Line PLN-501768313
...
43
Carburetor Gasket PLN-503434001
...
44
Outer Sealing Ring PLN-503431801
...
45
Manifold Tube PLN-503431501
...
46
Clamp PLN-503560003
...
47
Grommet PLN-503436001
...
48
Throttle Wire PLN-503434801
...
49
Spring PLN-503428001
...
50
Spring PLN-503424901
...
51
Trigger Lock PLN-503424402
...
52
Pin PLN-720123820
...
53
Trigger PLN-503424502
...
54
Pin PLN-720123620
...
55
Screw PLN-503203242
...
56
Screw PLN-503203216
...
57
Air Filter Cover PLN-503433113
...
58
Std. Nylon Mesh PLN-503553901
...
58
Felt PLN-503553902
...
59
Screw PLN-503202355
...
60
Air Filter Base Plate PLN-503553801
...
61
Vent Valve PLN-503164001
...
62
Line PLN-501768307
...
xx
COVER PLN-503432301
...
...
...
