Poulan Pro PP422 Gas Blower

Model: PP422 Gas Blower, 422 Gas Blower

Save
Part Not Listed?Part Not Listed?
product name

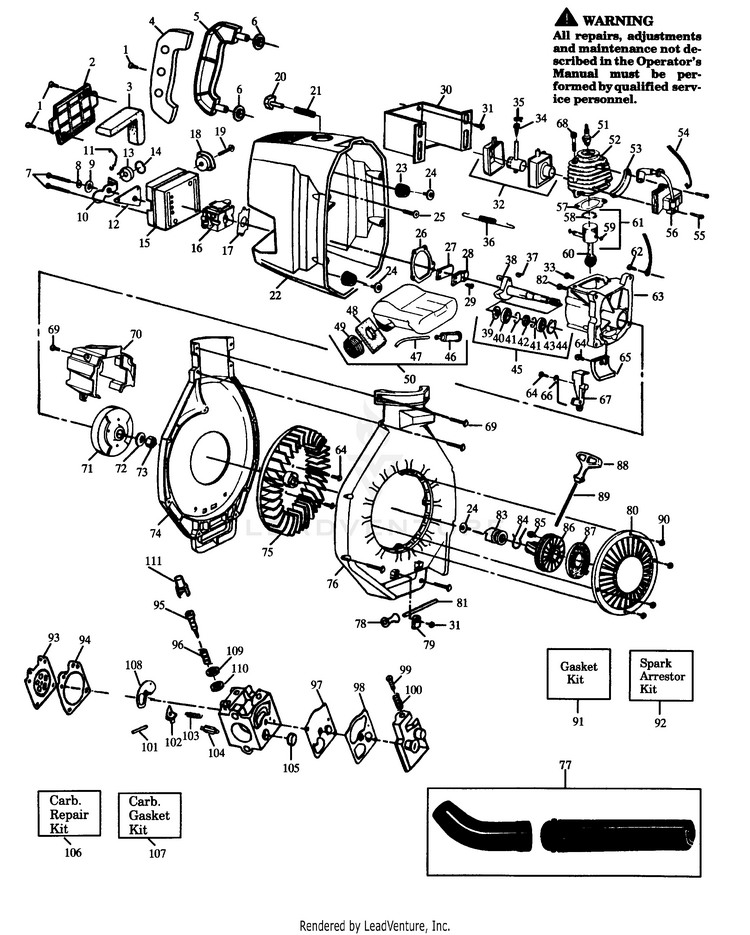

BOWER ASSEMBLY

...

...
2
Air Filter Cover PLN-530029593

...
3
Air Filter PLN-530029611

...
4
Handle Cover PLN-530029615

...

...
6
Handle Isolator PLN-530029608


...
8
Choke Spacer PLN-530015852

...
9
Wave Washer PLN-530015254

...
10
Choke Shutter PLN-530029480

...
11
Throttle Wire PLN-530029485

...
12
Choke Mtg. Plate PLN-530029481

...
13

...
14
Wave Washer (Knob) PLN-530015147

...
15

...
16
Type 1 (WA-207A) PLN-530035262

...
16
KIT CARBURETOR ASSY PLN-545081825

...
17
Carburetor Gasket PLN-530019164

...
18
Throttle Knob PLN-530029484

...

...
20

...
21

...
22

...
23

...

...

...
26

...
27
Reed Valve PLN-530027593

...
28
Reed Stop PLN-530029781

...
29
SCREW 6-19X.437 PLN-545227101

...
30
Heat Shield PLN-530029597

...

...
32

...

...
34
Spark Arrestor Screen PLN-530029227

...
35
Spark Arrestor Clamp PLN-530029228

...
36
Muffler Spring PLN-530029116


...
38
Crankshaft Ass'y.See Service Ref. 1 PLN-530010945

...
40
Inner Bearing PLN-530032103


...
42
Crankshaft Seal PLN-530019158

...
43
Outer Bearing PLN-530032102

...
44
Retaining Ring PLN-530015789

...
45
Crankcase/Crankshaft Ass'y. PLN-530014004

...
46
Assy-Fuel Pickup PLN-530095646

...
47
Fuel Line Kit PLN-530069247


...
49

...
50
Fuel Tank Ass'y. PLN-530014267

...
51
Spark Plug PLN-503235112

...
52

...
53

...
54
Leadwire Switch PLN-530029606

...

...
56
Ignition Module PLN-530039137

...
57
GASKET CYL W/ ADHESIVE PLN-530019267

...
58
Piston Ring PLN-530026413

...
59

...
60
Piston Rod PLN-530014005

...
61
Piston Kit (Inc. 58,59, Pin) PLN-530069274

...

...
63
Crankcase Ass'y PLN-530014016

...

...
65

...
66

...
67
Insulator PLN-530029601

...

...
69
Screw-Line Limiter PLN-530015814

...
70

...
71

...
72


...
74
Blower Housing (Upper) PLN-530029432

...
75

...
76
Blower Housing (Lower) PLN-530014265

...
77
BLOWER TUBE KIT PLN-530069684

...
78

...
79

...
80
Pulley Housing PLN-530094867

...
81

...

...
83

...
84
Drag Element PLN-530037716

...

...
86
Starter Pulley PLN-530069306

...
87
SPRING STARTER PLN-545008015

...
88
Starter Handle PLN-530027569

...
89

...

...
91
Gasket Kit PLN-530069302

...
92
Spark Arrestor Kit PLN-530069348

...
93
DIAPHRAGM PLN-503896701

...
94
Metering Diaphragm Gasket PLN-530035151

...
95
Mixture Needle PLN-530035212

...
96
Needle Spring-Low Speed PLN-530035293

...
97
PUMP DIAPHRAGM PLN-504130807

...
98

...
99
Idle Speed Screw Included in Carburetor Kwik Repair Kit. PLN-530035203

...
100
Spring Included in Carburetor Kwik Repair Kit. PLN-501667801

...
101
Pin Included in Carburetor Kwik Repair Kit. PLN-505520125

...
102
Metering Lever Included in Carburetor Kwik Repair Kit. PLN-505520127

...
103
Metering Lever Spring Included in Carburetor Kwik Repair Kit. PLN-530035188

...
104

...
105
Fuel Inlet Screen PLN-530035178

...
106
Carb. Kwik Repair Kit PLN-530035264

...
107
Gasket Diaphragm Kit Included in Carburetor Kwik Repair Kit. PLN-530069844

...
108
Circuit Plate Gasket PLN-530035211

...
109
Mixture Needle Washer PLN-530035217

...
110
"O" Ring Mixture PLN-530035218

...
111
Limiter Cap (Black) PLN-530035337

...
xx
Operator Manual Not Shown. PLN-530082507

...
xx
Type 1 Not Shown. PLN-530029628

...
xx
Type 2 Decal (Not a serviceable part) Not Shown. PLN-530038334
...
...
...
