product name

Poulan Pro PP336C Gas Saw

Model: PP336C Gas Saw, 336C Gas Saw

Back To Assemblies

Save Part Not Listed?
product name

EXTERNAL POWER UNIT

...
...
1
Retainer Mount PLN-530027732
...
2
Screw PLN-530015714
...
3
Chain Catcher Retainer PLN-530027732
...
4
Isolator Ass'y. Kit PLN-530069384
...
5
Lower Isolator PLN-530027392
...
6
Rear Handle & Fuel Tank PLN-530069391
...
7
Cylindrical Mount PLN-530036056
...
8
Isolator Limiter PLN-530027187
...
9
Screw-Pinch Clamp PLN-530015650
...
10
Chain Catcher PLN-530027733
...
11
"C" Clip PLN-530015702
...
12
Fuel Cap Ass'y. PLN-530010845
...
13
Strap Retainer Plate PLN-530037012
...
14
Bracket PLN-530036035
...
15
Screw PLN-530015598
...
16
Throttle Lock PLN-530029666
...
17
Throttle Lock Spring PLN-530024772
...
18
Screw PLN-530015716
...
19
AV Strap PLN-530037104
...
20
Cylinder Shield Kit PLN-530069392
...
21
Carb. Cover PLN-530036038
...
22
Screw-Pinch Clamp PLN-530015650
...
23
Trigger Latch Spring PLN-530027134
...
24
Throttle Trigger PLN-530027133
...
25
Grommet PLN-530036053
...
26
Bracket PLN-530027121
...
27
Model 336C PLN-530069263
...
27
Model 365C PLN-530069382
...
28
Carburetor (HDA-49) PLN-530035201
...
29
Air Filter Plate PLN-530023664
...
30
Carb. Mounting Stud PLN-530015735
...
31
Air Filter Ass'y. PLN-530010892
...
32
Throttle Lockout PLN-530027135
...
33
Rear Handle Cover PLN-530027207
...
34
Throttle Wire PLN-530027073
...
35
Choke Knob PLN-530027075
...
36
Spring Ass'y. PLN-530036962
...
37
Nut PLN-530001543
...
38
Dowel Pin PLN-530015701
...
39
Screw PLN-530015724
...
40
Line Kit (Bulk 530-008133) PLN-530069216
...
41
Fuel Filter Ass'y. PLN-530091878
...
42
Grommet PLN-530039129
...
43
Switch Kit PLN-530069225
...
44
Lead Wire Ass'y. PLN-530027138
...
45
Screw PLN-530015598
...
46
Screw Retainer PLN-530027202
...
47
Impulse Fitting PLN-530025539
...
48
Vent Fitting PLN-530024475
...
49
Check Valve PLN-530026119
...
50
Hex Wrench (5/32) PLN-530031159
...
51
Vent Plug PLN-530027339
...
52
Air Box Plug PLN-530025922
...
53
Clamp PLN-530027341
...
54
Isolator Repair Kit PLN-530069297
...
55
Washer PLN-530015123
...
56
Bracket Retainer PLN-530029347
...
57
Screw PLN-530015710
...
58
SCREW PLN-530016386
...
59
Washer PLN-530015562
...
59
Starting Inst. Decal PLN-507434058

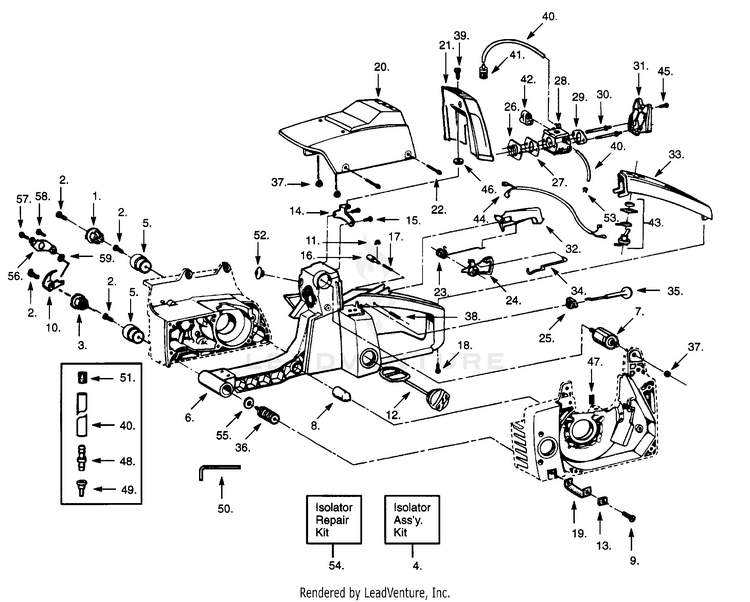

Schematic Image Zoomed
